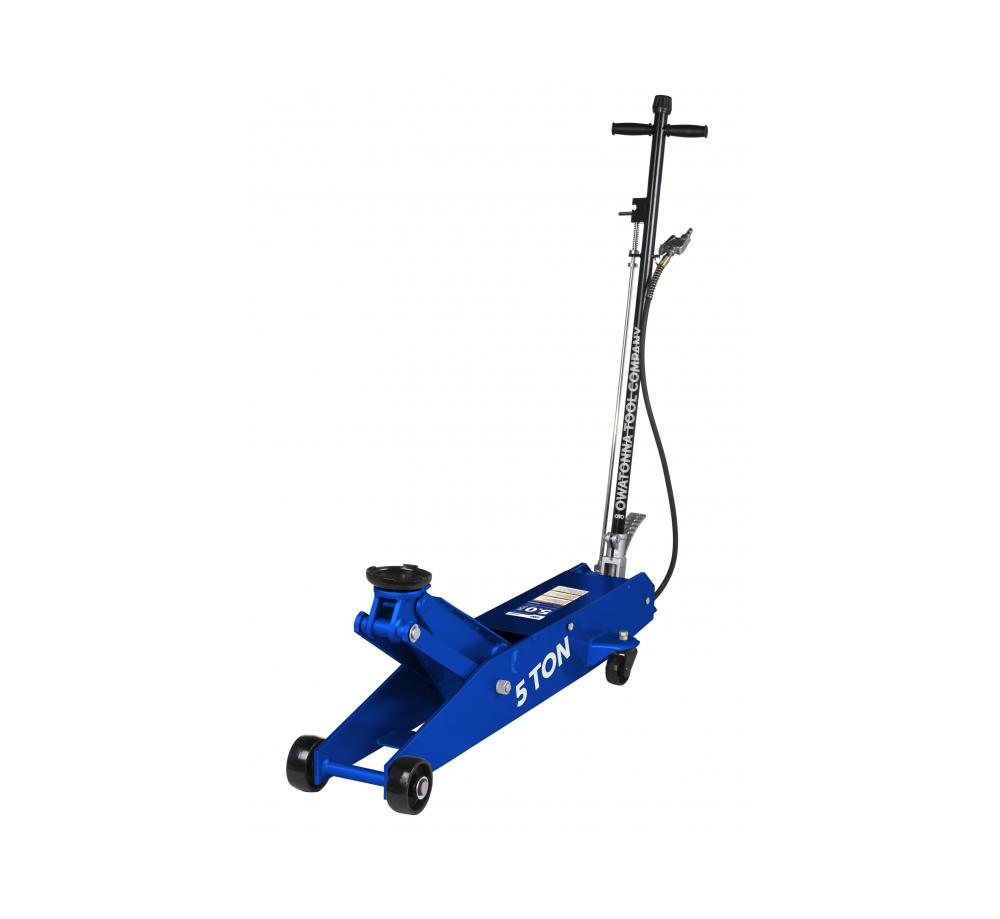

5 Ton Air / Hydraulic Service Jack

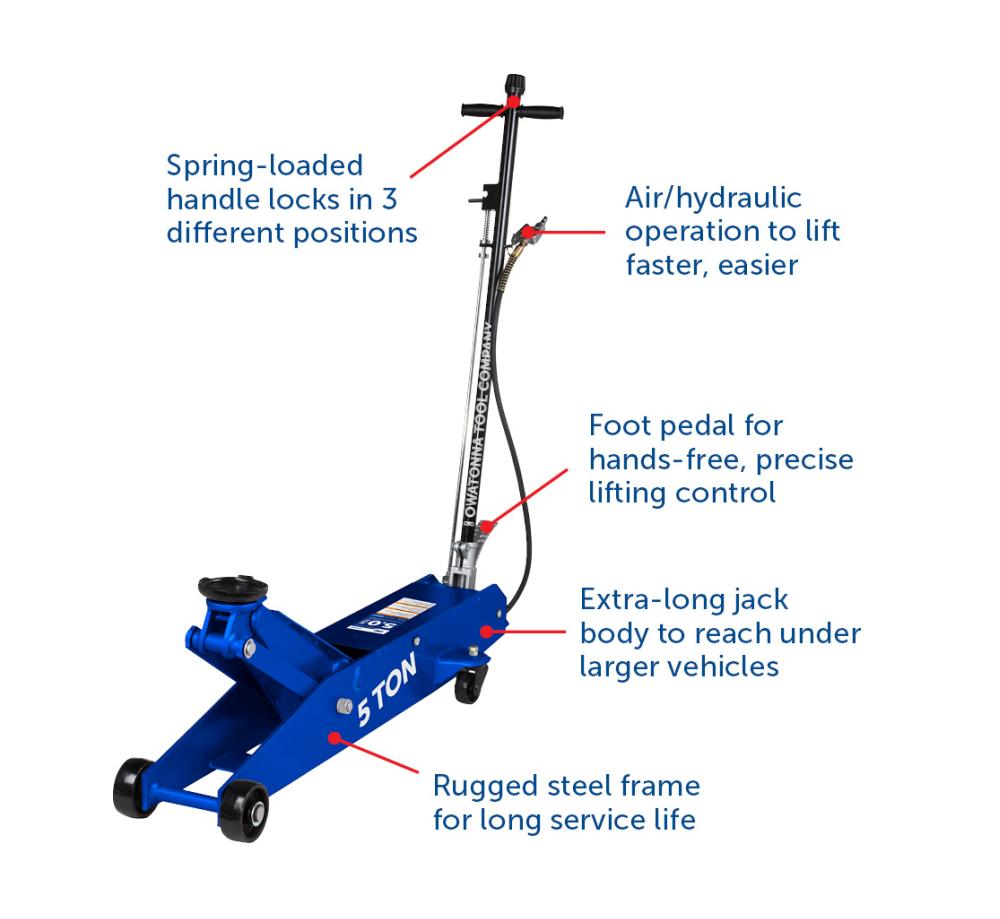

The HDJ5P is a long chassis, heavy duty 5-ton capacity, air-assisted hydraulic service jack. Rugged steel frame members ensure confident lifting service. Bearing-mounted rear swivel casters and front wheels with roller bearings make maneuvering and positioning the jack easy. Spring-loaded handle may be locked in three positions, from horizontal to vertical. Bring the versatility of air-assist operation to your shop’s lifting tasks with the OTC HDJ5P. Cycle tested design for a long life of professional duty.
Ideal size for lifting step vans, bucket trucks and smaller vehicles.
Air pressure: 80–120 PSI
Lifting range: 5-7/8" to 22"
Saddle: 5.1" dia., round
Frame height: 7.5"
Handle length: 45.4" 3-position with lock and release controls
Floor space: 14.2" x 55.5"
Casters: 4; 4.4" fixed front (2), 2.8" mid-body swivel (2)
Meets all 5 ASME PASE-2019 safety standards for service jacks.
Features
- Heavy duty hydraulic performance for garages, equipment dealers, commercial service and more
- Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
- Chrome plated ram for additional rust resistance
- Wiper seals protect hydraulic system from contaminants
- Convenient foot pedal for no load lifts
- Front wheels with roller bearings and ball bearing – mounted rear caster wheels provide stability and easy maneuverabilty
- Overload and by-pass safety valves prevent use beyond the jacks rated capacity and over extension of the ram
- Handle can be locked into one of three positions from horizontal to vertical and has independent release knob
- Multi-lingual safety and capacity markings
- OTC Owner's manual for service jacks with training (operating) instructions
Included components
- HDJ5P 5 Ton capacity Long reach Air assisted hydraulic jack
- 1 – piece handle
- OTC Owners manual for service jacks
Product identification
- Brand: OTC
