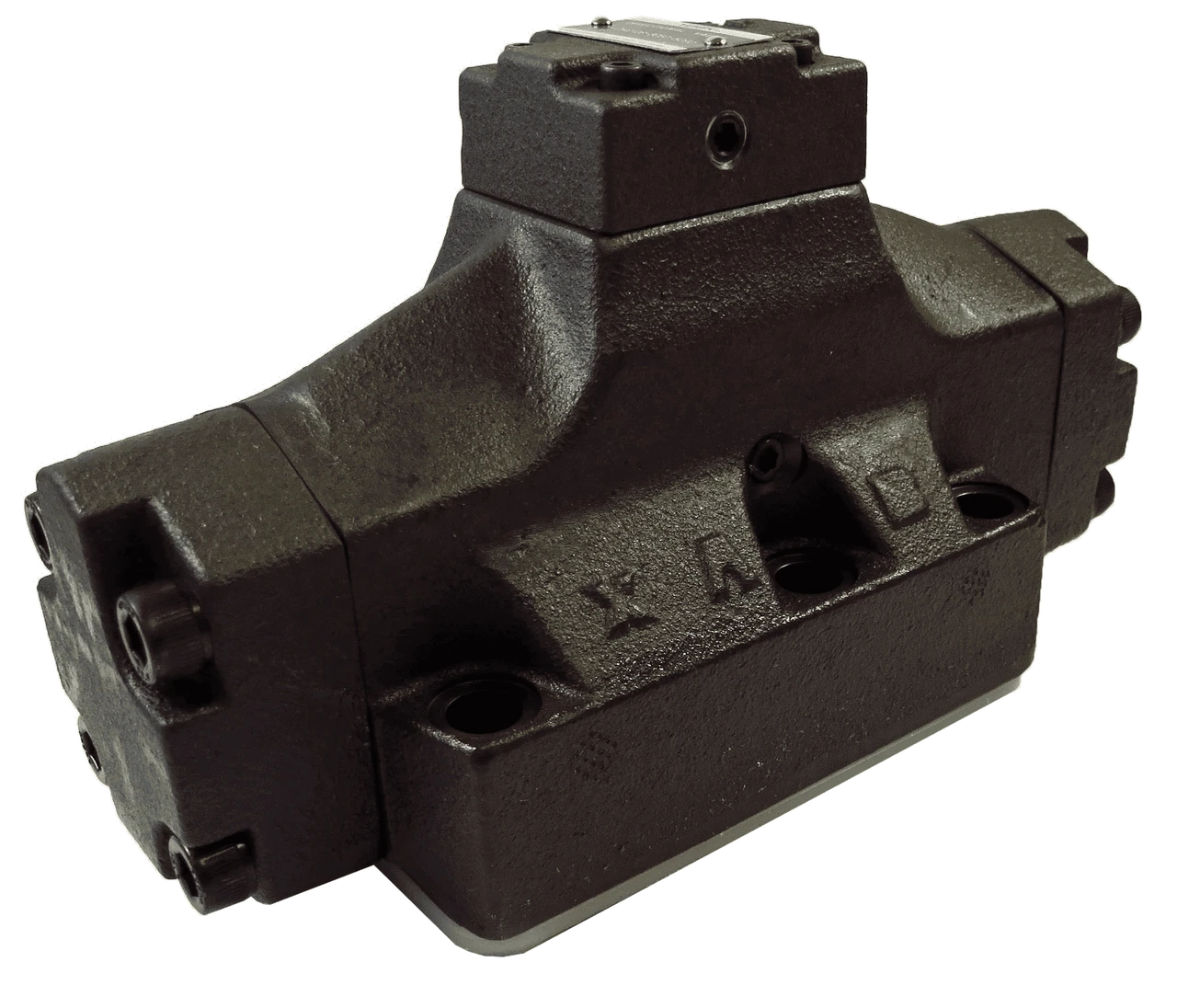

Yuken Pilot Operated Directional Valve High Pressure (DHG-06-3C4-5090)
Yuken Pilot Operated Directional Valve (DHG-06-3C4-5090) offers precise flow management for high-pressure hydraulic systems. Built to handle demanding industrial applications, this directional valve operates at a maximum pressure of 31.5MPa (4,570psi) and supports flow rates up to 1,100L/min (291 gal/min).
Designed with a pilot-operated, solenoid design, the Yuken directional valve is suitable for complex hydraulic systems. Its CETOP D07, D08, and D10 compliance ensures compatibility with various setups, providing a robust solution for reliable system control.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Max. operating pressure: 31.5MPa (4,570psi)
Max. flow rate: 1,100L/min (291 gal/min)
Standards: CETOP D07, D08, D10
Max. operating temperature: 160 °F
Min. operating temperature: 5 °F
Spool Type: Open Center (A, B & T)
Spring Arrangement: Spring Centered
T Port Pressure Rating: 3,050 psi
Actuation Type: Pilot
Electrical Connector Type: Terminal Box
Key Features and Benefits
Efficient flow control with a pilot-operated, solenoid design
Meets CETOP standards for versatile system compatibility
Supports a wide range of temperature conditions (5°F – 160°F)
Spring-centered spool design for precise control
Product identification
- Brand: Yuken
- Model / MPN: DHG-06-3C4-5090
