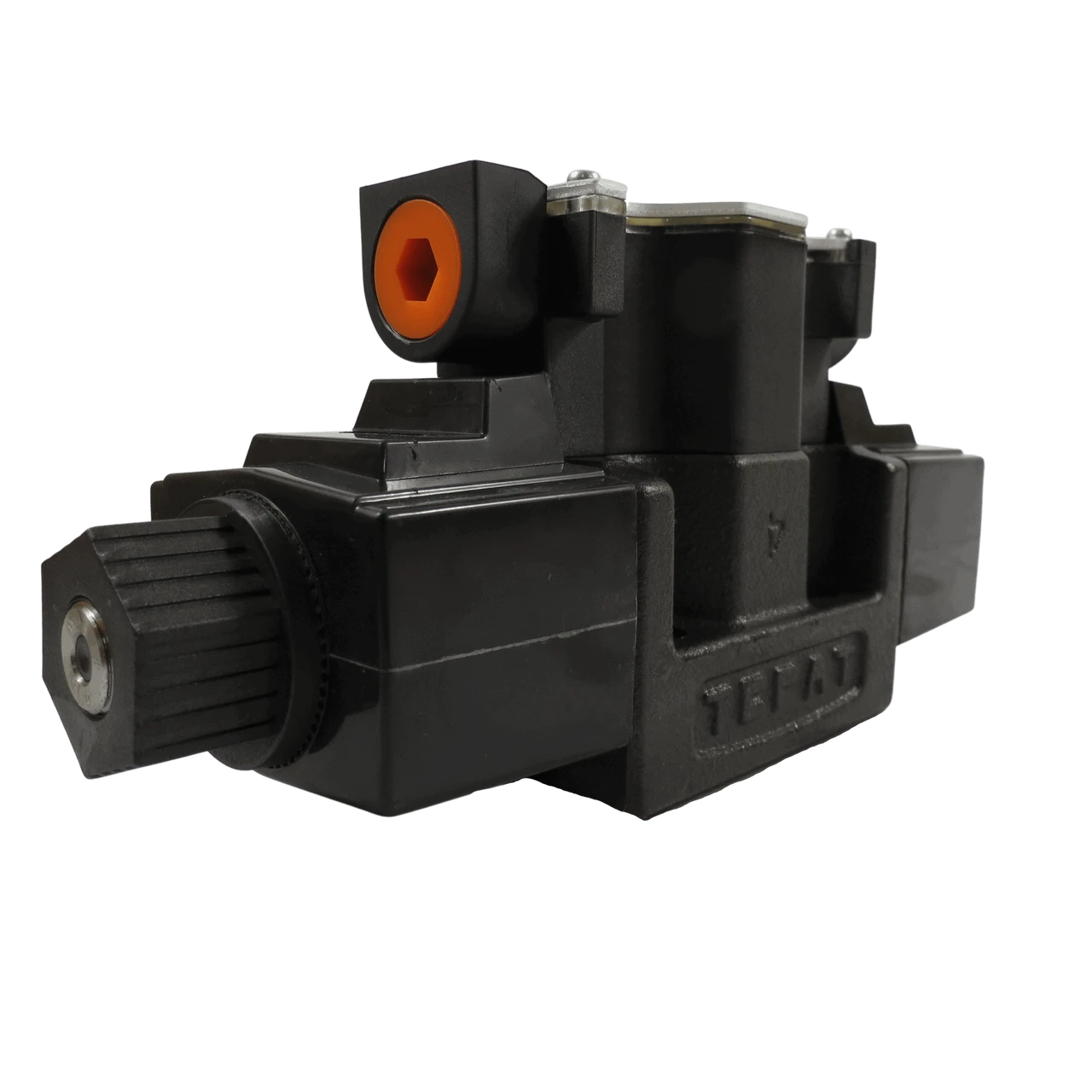

Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C60-A200-50)
Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C60-A200-50) is a robust and reliable valve designed for high-pressure applications in various industrial settings. This solenoid directional valve offers a high flow rate of up to 120 L/min, making it ideal for hydraulic systems requiring quick and efficient directional control.
Equipped with a manual override pin, the Yuken high-pressure valve provides enhanced safety and control, allowing for manual adjustments as needed. Its compact design and reliable functionality make it suitable for applications where space is a constraint, without compromising on performance.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
CETOP D05 solenoid directional valve – standard
Max. Pressure: 31.5MPa (4,570psi)
Max. Flow: 120L/min (31.7gal/min)
Key Features and Benefits
High-pressure capability with maximum pressure up to 31.5 MPa for demanding applications.
High flow rate ensures quick and efficient operation in hydraulic systems.
Compact and robust design makes it suitable for space-constrained installations.
Made in Japan, ensuring high-quality manufacturing and long-lasting performance.
Equipped with a manual override pin for enhanced control and safety.
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-3C60-A200-50
