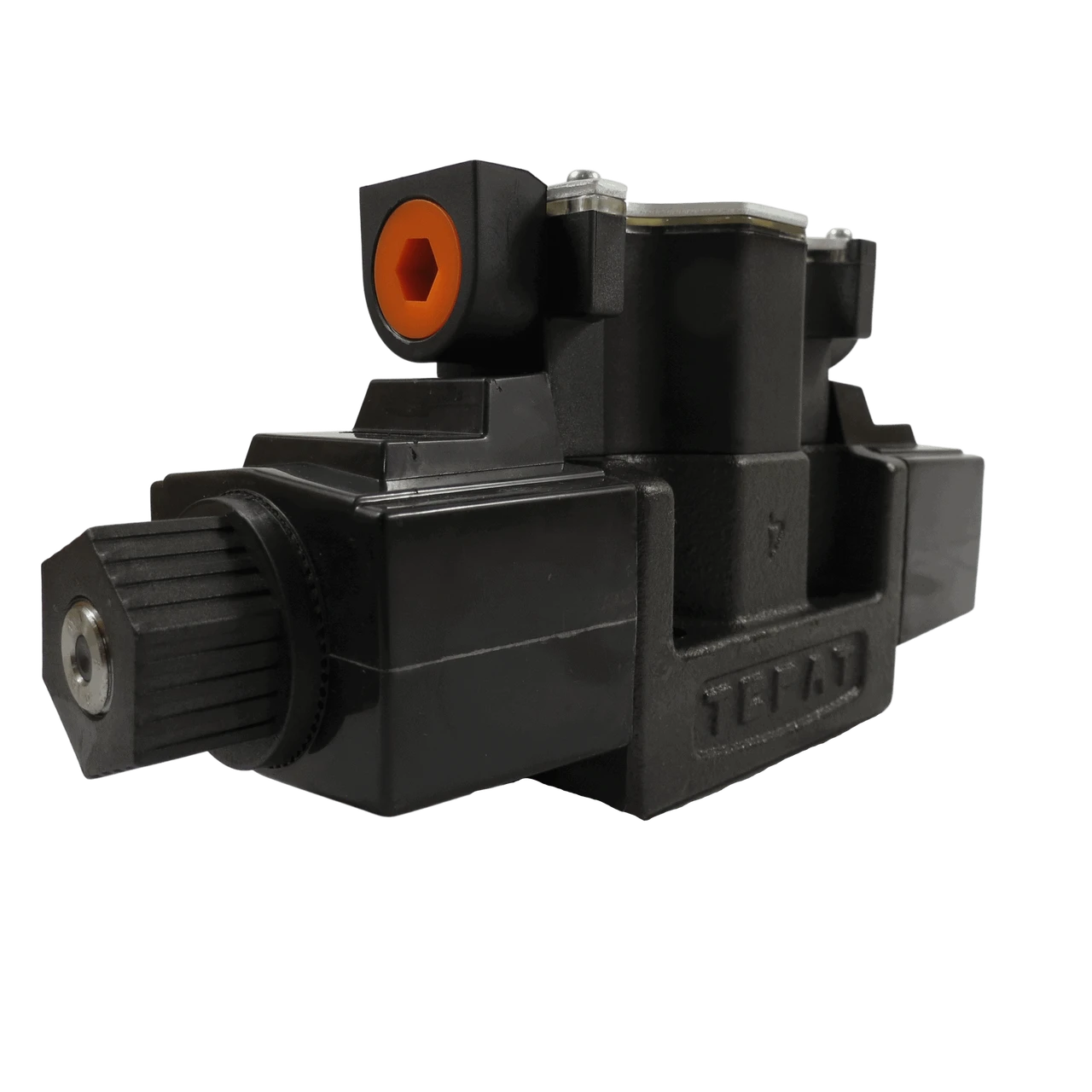

Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C4-A200-50)
Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C4-A200-50) is engineered for high-pressure hydraulic applications, providing stable fluid control and long-lasting performance. This valve features a manual override pin for added control, allowing users to operate it manually in critical situations.
The Yuken JIS directional valve meets CETOP D05 standards, ensuring compatibility with a wide range of hydraulic systems. Its robust construction and spring-centered spool design ensure reliable and efficient operation under demanding conditions.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Maximum Pressure: 31.5 MPa (4570 PSI)
Maximum Flow: 120 L/min (31.7 U.S. GPM)
Model Type: CETOP D05 Solenoid Directional Valve – Standard
Key Features and Benefits
Handles high pressure up to 31.5 MPa for heavy-duty hydraulic systems
Supports a maximum flow rate of 120 L/min for efficient fluid control
Manual override pin provides additional control options
Meets CETOP D05 standards for versatile compatibility
Manufactured in Japan for superior build quality and performance
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-3C4-A200-50
