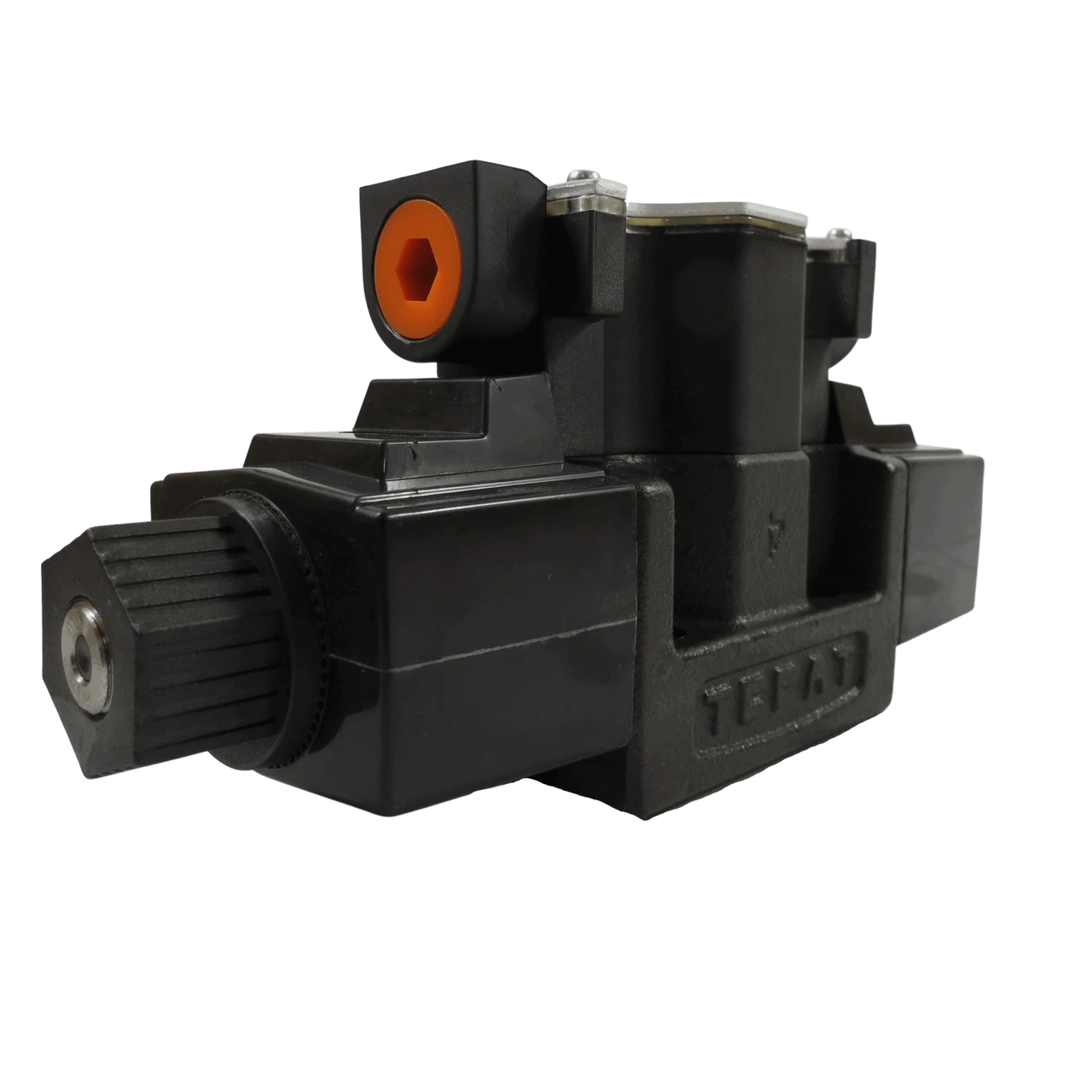

Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C4-A100-50)

Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C4-A100-50)

Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C4-A100-50) is designed for high-pressure and high-flow hydraulic systems, making it suitable for various industrial applications. This valve offers exceptional stability, noise reduction, and long operational life, making it a reliable solution for complex hydraulic configurations.

With two primary models—standard and shockless types—the Yuken JIS valve provides versatile performance. The standard model is ideal for high-pressure operations, while the shockless version minimizes noise and vibrations during spool changeover.

Specifications and Dimensions

US Customs Harmonized Code: 8481.20.0020

Country of Origin: Japan

Weight: 7.94 lbs

Flow Capacity: 120 L/min (31.7 U.S.GPM)

Maximum Pressure: 31.5 MPa (4570 PSI)

Key Features and Benefits

Designed for high-pressure and high-flow applications.

Minimizes noise and vibration for smooth operation.

Long operational life with wet-type solenoids to prevent oil leakage.

Available in standard and shockless variations.

Ideal for various hydraulic systems and industrial applications.

Product identification

• Brand: Yuken
• Model / MPN: DSG-03-3C4-A100-50
