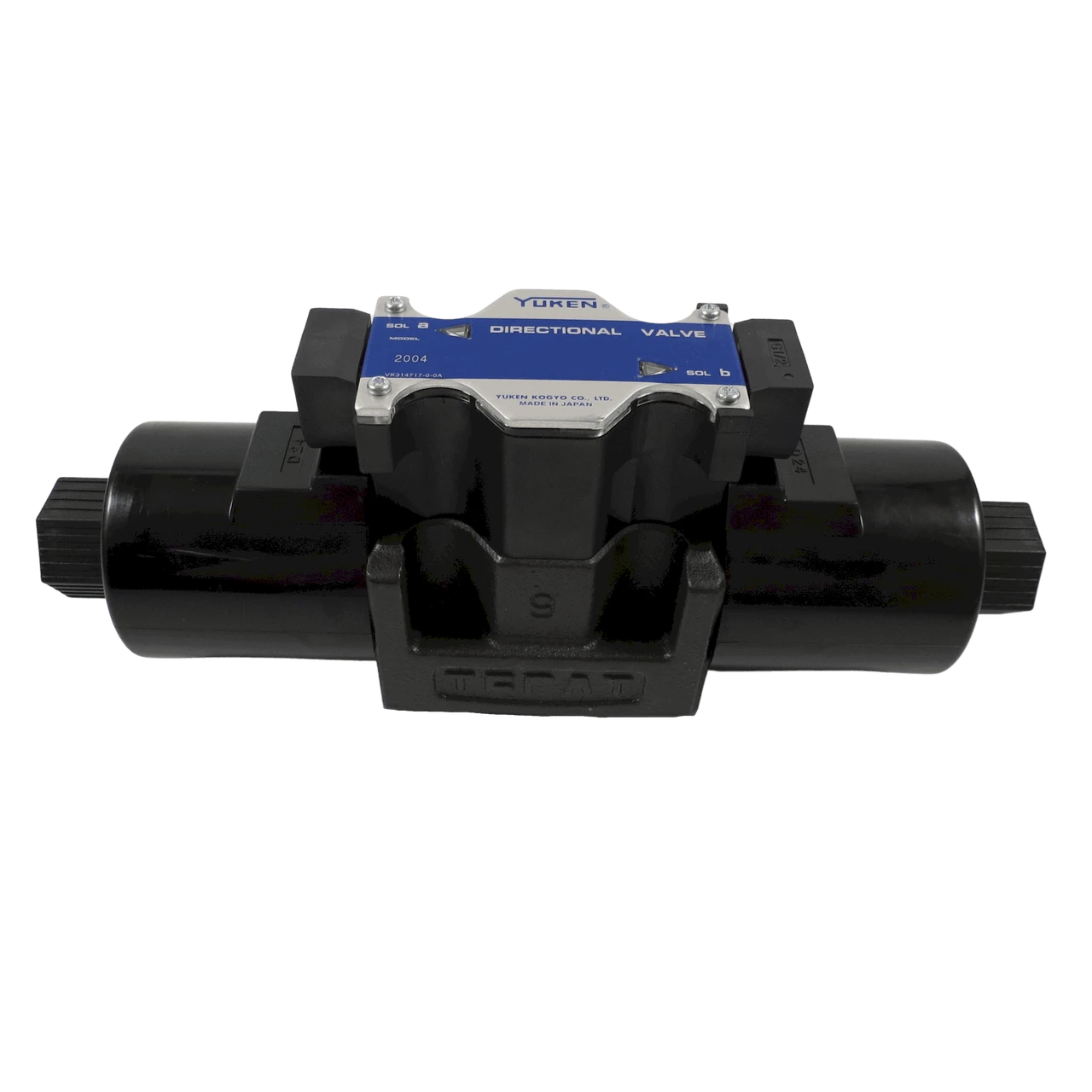

Yuken Directional Valve Solenoid Operated (DSG-03-3C9-D24-5090)
Yuken Directional Valve Solenoid Operated (DSG-03-3C9-D24-5090) is a high-performance directional valve designed for use in demanding hydraulic applications. It offers a maximum operating pressure of 31.5MPa (4,570psi) and a maximum flow rate of 120L/min (31.7gal/min), making it ideal for systems requiring precise directional control and high-pressure capabilities.
This Yuken directional control valve is equipped with a 24 Vdc coil and follows the CETOP D05 standard, ensuring compatibility with a wide range of hydraulic systems. The robust construction and reliable solenoid operation, along with a manual override pin, make it a top choice for industrial applications.
Specifications and Dimensions
CETOP D05 solenoid directional valve – standard
Max. operating pressure: 31.5MPa (4,570psi)
Max. flow rate: 120L/min (31.7gal/min)
Coil Voltage: 24 Vdc
Max Operating Temperature: 160 °F
Min Operating Temperature: 5 °F
T Port Pressure Rating: 2320 psi
Key Features and Benefits
Handles maximum operating pressure up to 31.5MPa
Supports high flow rates up to 120L/min for efficient fluid management
24 Vdc solenoid coil for reliable directional control
Manual override pin for easy maintenance and safety
Manufactured in Japan ensuring top-quality performance
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-3C9-D24-5090
