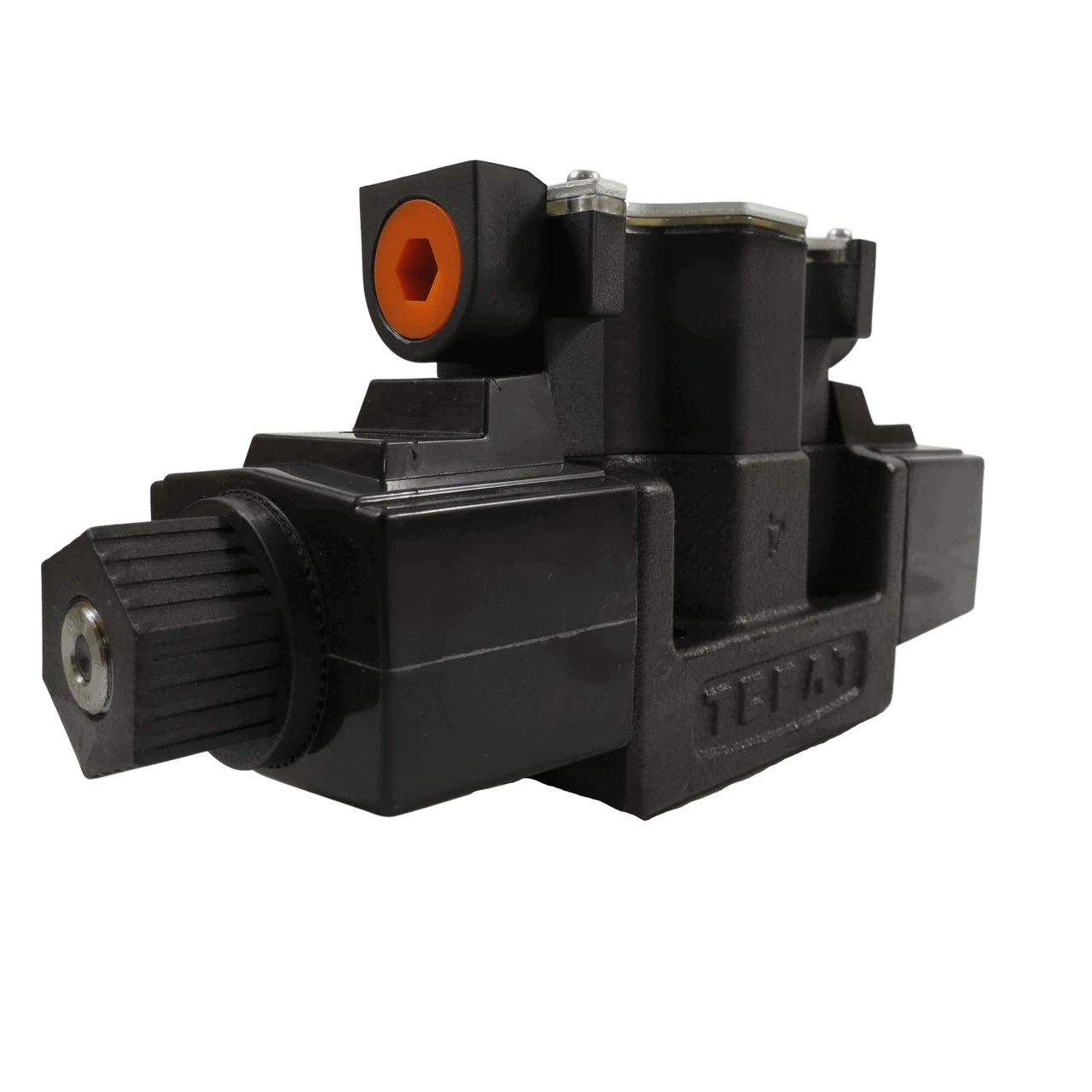

Yuken Directional Valve Solenoid Operated (DSG-03-3C4-A240-50)
Yuken Directional Valve Solenoid Operated (DSG-03-3C4-A240-50) is a robust hydraulic valve designed for precise control in high-pressure systems. This solenoid-operated directional valve features a manual override pin, providing additional control during critical operations.
The Yuken solenoid directional valve meets CETOP D05 standards, ensuring compatibility with a wide range of hydraulic configurations. The valve is spring-centered, offering stable operation and longevity.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Maximum Operating Pressure: 31.5 MPa (4570 PSI)
Maximum Flow Rate: 120 L/min (31.7 U.S. GPM)
Model Type: CETOP D05 Solenoid Directional Valve – Standard
Key Features and Benefits
High-pressure capacity up to 31.5 MPa for heavy-duty applications
Supports flow rates up to 120 L/min for efficient fluid control
Manual override pin allows for manual operation in critical situations
Spring-centered spool for stable operation under varying conditions
Meets CETOP D05 standards for versatile compatibility
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-3C4-A240-50
