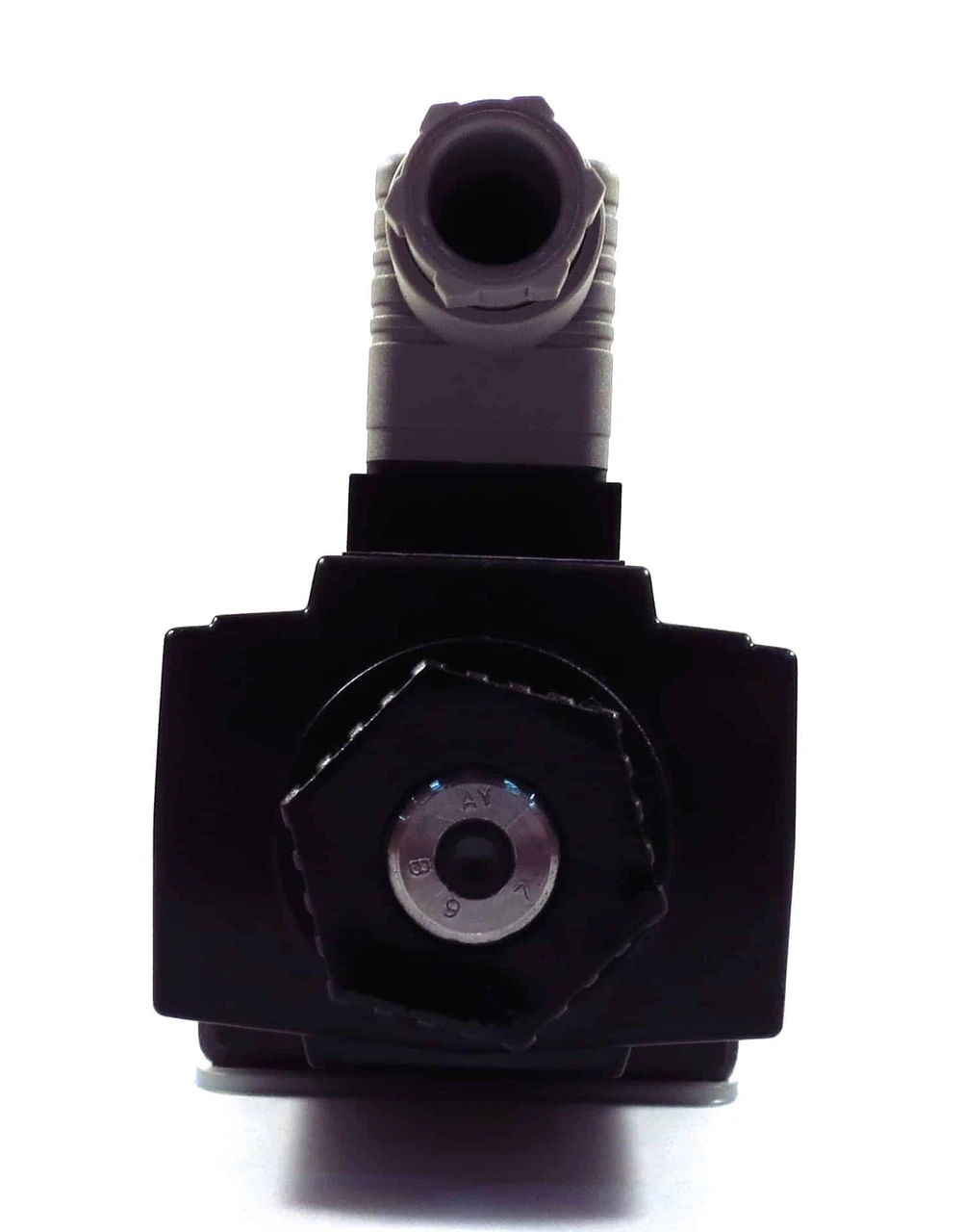

Yuken Directional Valve Solenoid Operated (DSG-03-3C4-A120-N-50)
Yuken Directional Valve Solenoid Operated (DSG-03-3C4-A120-N-50) is a reliable solution for high-pressure and high-flow applications, making it ideal for hydraulic systems in demanding environments. This valve is designed to deliver stable performance with minimal noise, ensuring long-term operational efficiency.
The DSG-03 valve series offers both standard and shockless types for versatile applications. It is equipped with wet-type solenoids to prevent oil leakage, ensuring safer and quieter operation. With a pressure capacity of up to 31.5 MPa (4570 PSI) and a flow rate of 120 L/min (31.7 U.S.GPM), it is suitable for high-demand hydraulic systems.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Weight: 7.94 lbs
Flow Capacity: 120 L/min (31.7 U.S.GPM)
Maximum Pressure: 31.5 MPa (4570 PSI)
Type: Solenoid Operated Directional Valve
Key Features and Benefits
High-pressure design suitable for demanding hydraulic systems.
Wet-type solenoids ensure no oil leakage and reduced noise levels.
Available in both standard and shockless configurations for various needs.
Stable operation with minimal vibrations during spool changeover.
Long-lasting performance even under high pressure and flow conditions.
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-3C4-A120-N-50
