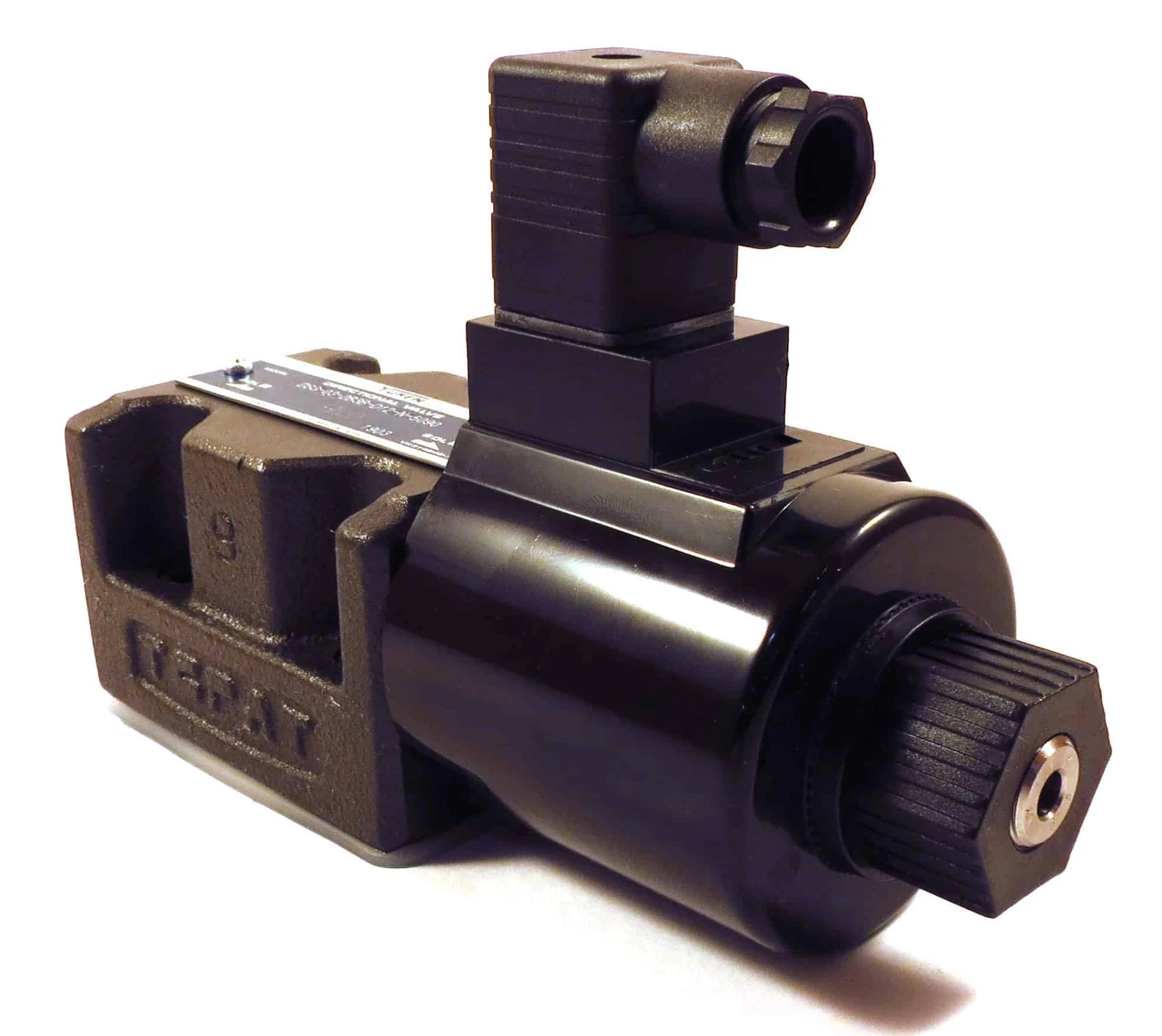

Yuken Directional Valve Solenoid Operated (DSG-03-2B3B-D12-N-5090)
Yuken Dir. Valve Sol. Operated (DSG-03-2B3B-D12-N-5090) is designed for demanding hydraulic applications requiring precise control and stable performance. This solenoid-operated valve features a high-pressure capability of up to 31.5 MPa (4570 PSI) and can handle a maximum flow rate of 120 L/min (31.7 U.S.GPM).
The valve is part of the DSG-03 series, which offers two main types: the standard type for high pressure and high flow, and the shockless type designed to minimize noise and vibration during spool changeovers.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Maximum Pressure: 31.5 MPa (4570 PSI)
Flow Capacity: 120 L/min (31.7 U.S.GPM)
Electrical Type: 12V Wet Type Solenoid
Standard Type and Shockless Type Models Available
Key Features and Benefits
High-pressure rating up to 31.5 MPa (4570 PSI) for demanding hydraulic systems.
Shockless model available to reduce noise and vibration during operation.
Wet-type solenoid ensures quiet performance and prevents oil leakage.
Durable design for long operational life in high-demand applications.
12V configuration suitable for versatile industrial use.
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-2B3B-D12-N-5090
