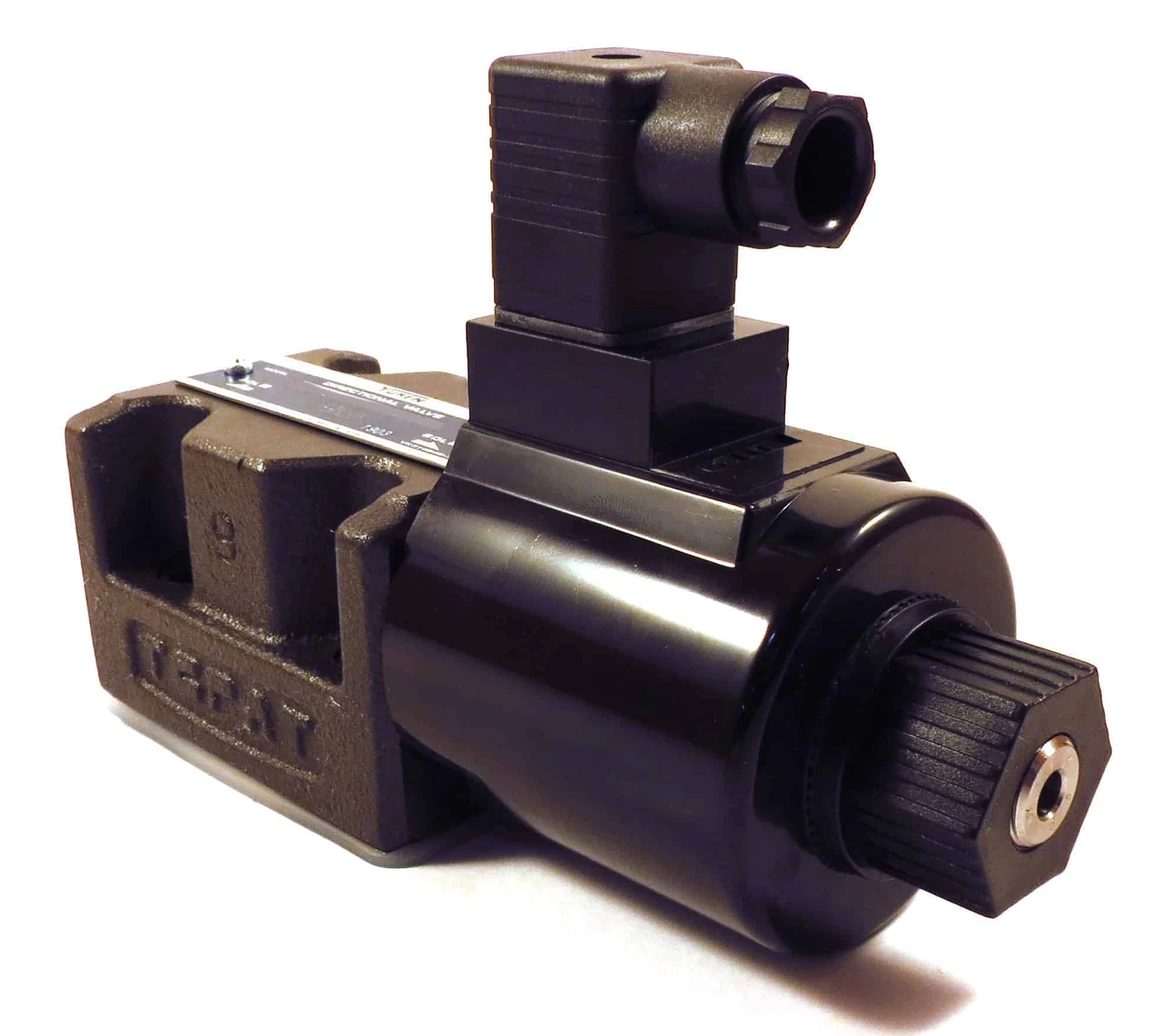

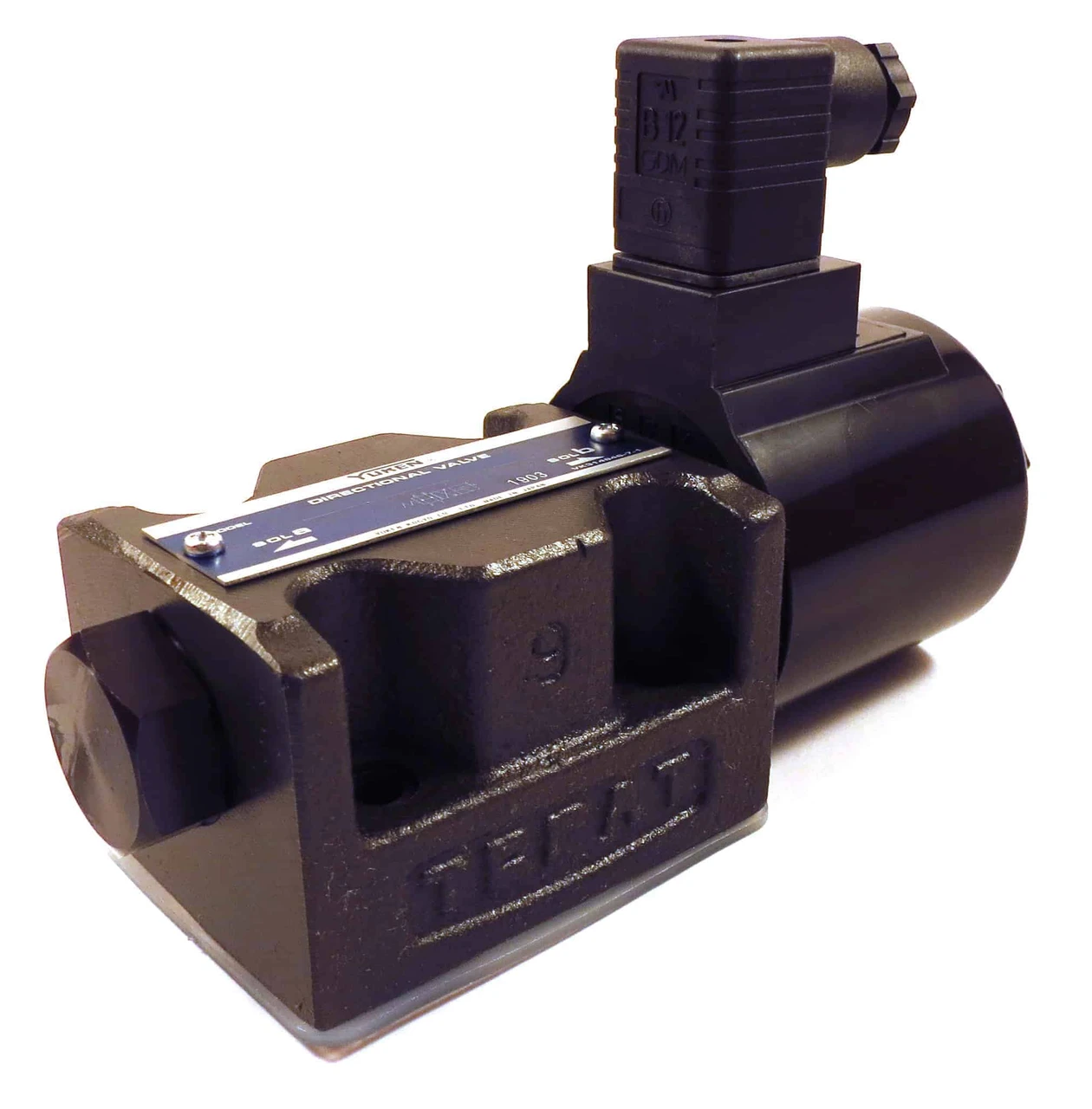

Yuken Directional Valve Solenoid Operated 2-Position 12 VDC DIN (DSG-03-2B3-D12-N-50)
Yuken Directional Valve Solenoid Operated 2-Position 12 VDC DIN (DSG-03-2B3-D12-N-50) is engineered for high pressure and high flow applications in demanding industrial systems. This valve offers reliable directional control, featuring a 2-position configuration and DIN mounting, making it ideal for complex hydraulic systems.
The Yuken directional valve is part of the DSG-03 series, known for its robust design and wet-type solenoid, which minimizes noise and prevents oil leakage, enhancing the valve’s lifespan. This valve is suitable for a wide range of hydraulic applications, including manufacturing, machinery, and automation systems.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Type: Solenoid Operated Directional Valve
Flow: 120 L/min (31.7 U.S. GPM)
Solenoid Type: Wet Type
Key Features and Benefits
High-pressure capacity up to 31.5 MPa (4570 PSI)
DIN standard configuration for versatile installation
Minimized operational noise with a wet-type solenoid design
Prevents oil leakage for extended lifespan and reduced maintenance
Handles high flow rates up to 120 L/min (31.7 U.S. GPM)
Shockless type available for reducing noise and vibration
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-2B3-D12-N-50
