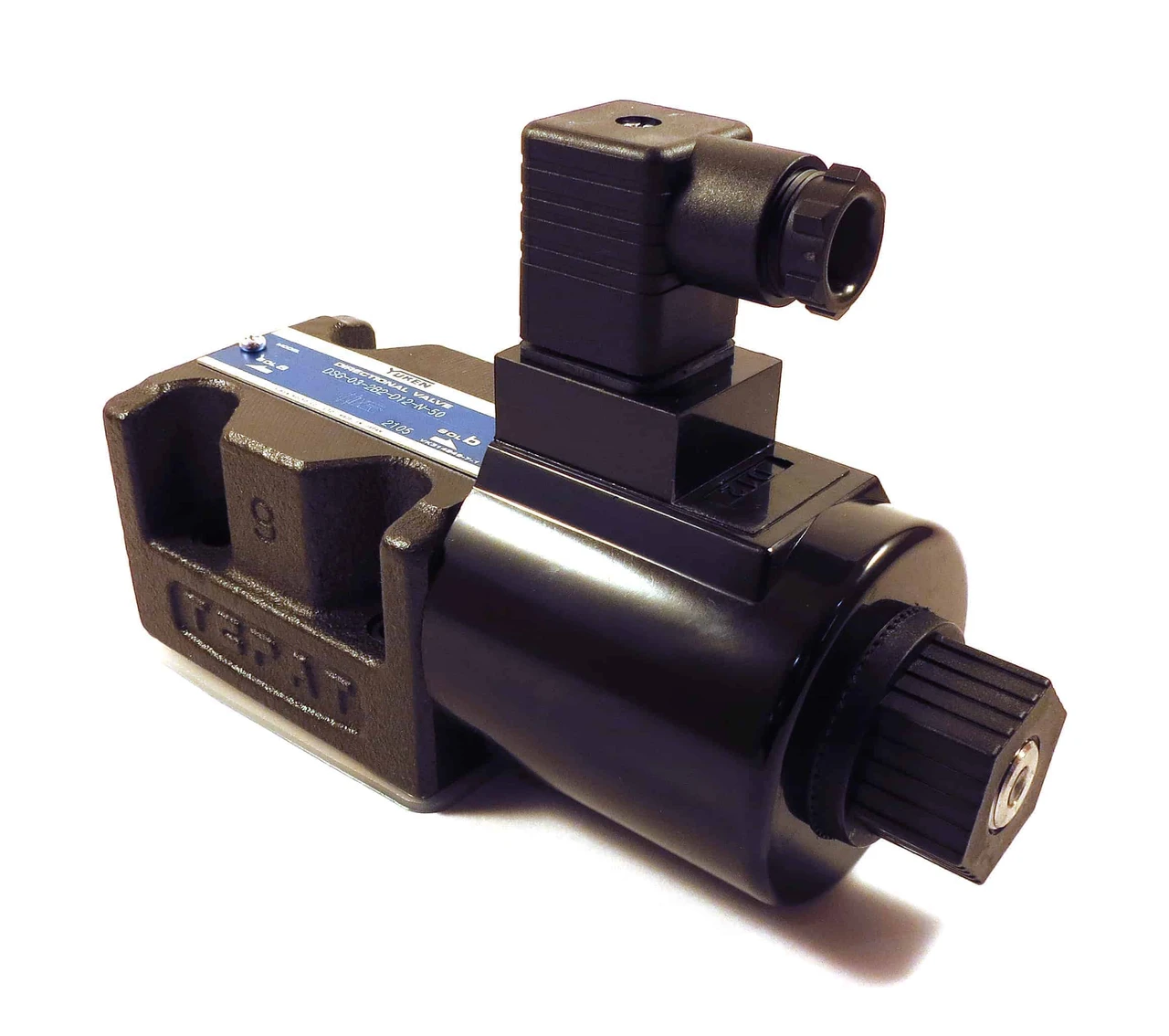

Yuken Directional Valve Solenoid Operated 12 VDC DIN JIS (DSG-03-2B2-D12-N-50)
Yuken Dir. Valve Sol. Operated 12 VDC DIN JIS (DSG-03-2B2-D12-N-50) is a robust solution designed for managing high-pressure and high-flow applications in hydraulic systems. Its 12 VDC DIN JIS configuration makes it compatible with a range of system setups, providing reliable performance under demanding conditions.
This directional valve utilizes a wet-type solenoid to minimize noise and ensure long operational life. The valve is classified under the DSG-03 series, known for its versatility in industrial environments, with models optimized for both standard and shockless operations.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Maximum Pressure: 31.5 MPa (4570 PSI)
Flow Capacity: 120 L/min (31.7 U.S.GPM)
Electrical Type: 12 VDC
Standard Type and Shockless Type Models Available
Key Features and Benefits
High-pressure rating of up to 31.5 MPa (4570 PSI) for optimal flow control.
Shockless model reduces noise and vibration during spool changeover.
Wet-type solenoid construction ensures low noise and prevents oil leakage.
Available in 12 VDC DIN JIS configuration for versatile compatibility.
Long operational life and reliable performance in high-demand applications.
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-2B2-D12-N-50
