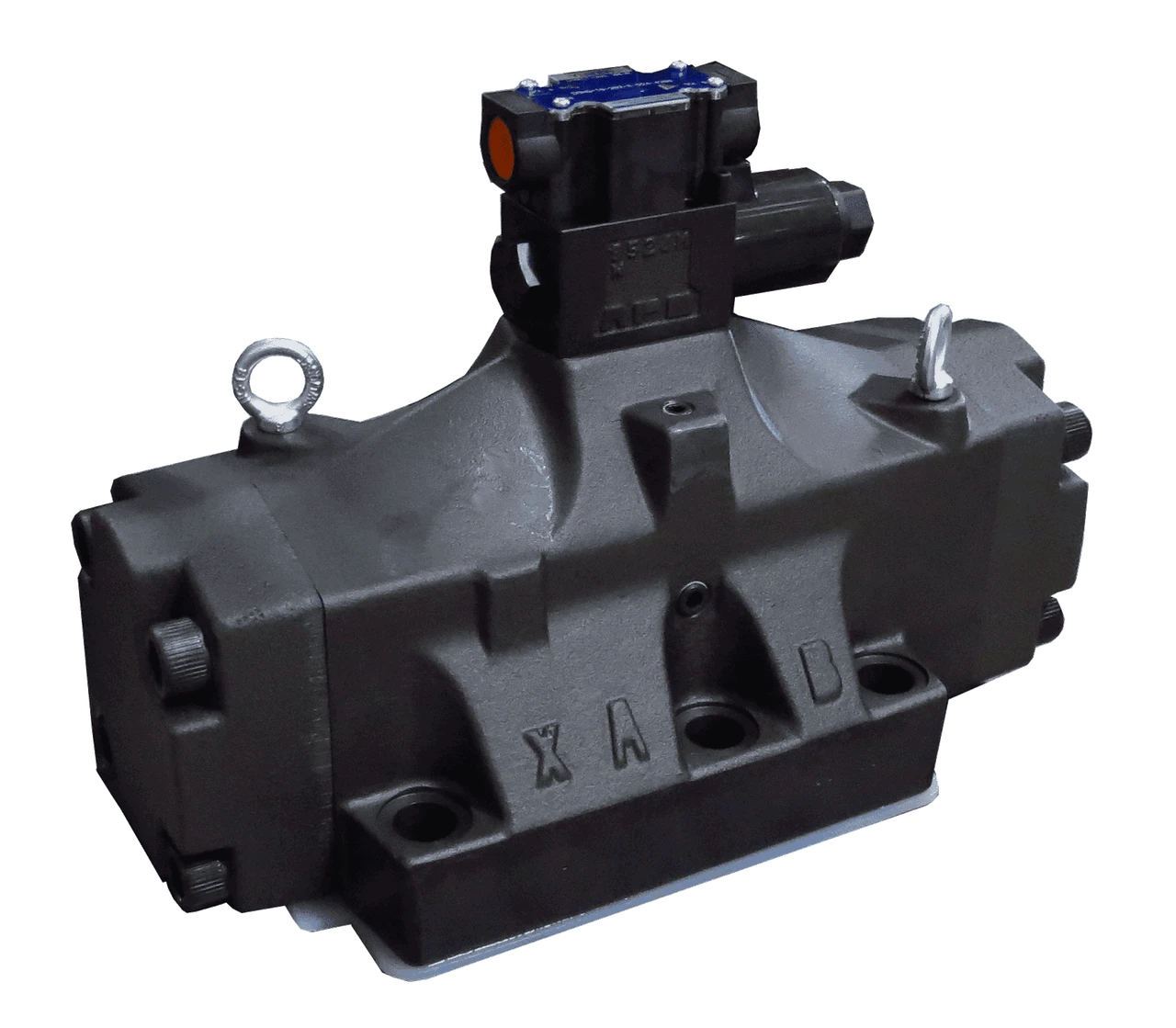

Yuken Directional Valve Pilot Operated (DSHG-10-2B2-D24-4390-L)
Yuken Directional Valve Pilot Operated (DSHG-10-2B2-D24-4390-L) is a high-performance solution for industrial hydraulic systems. With a maximum operating pressure of up to 31.5MPa (4,570psi), this CETOP D10 solenoid valve delivers reliable and consistent performance even in demanding applications.
The compact design and robust construction of this pilot-operated directional valve make it a versatile choice for industrial and manufacturing environments. Its high flow capacity and two-stage operation provide smooth and controlled directional changes.
Specifications and Dimensions
Max Operating Pressure: 31.5MPa (4,570psi)
Max Flow Rate: 1,100L/min (291gal/min)
Design Type: CETOP D10 solenoid directional 2-stage valve
Country of Origin: Japan
US Customs Harmonized Code: 8481.20.0020
Key Features and Benefits
Two-stage design for precise directional control
Compact structure allows for flexible installation
Stable performance under high-pressure conditions
Product identification
- Brand: Yuken
- Model / MPN: DSHG-10-2B2-D24-4390-L
