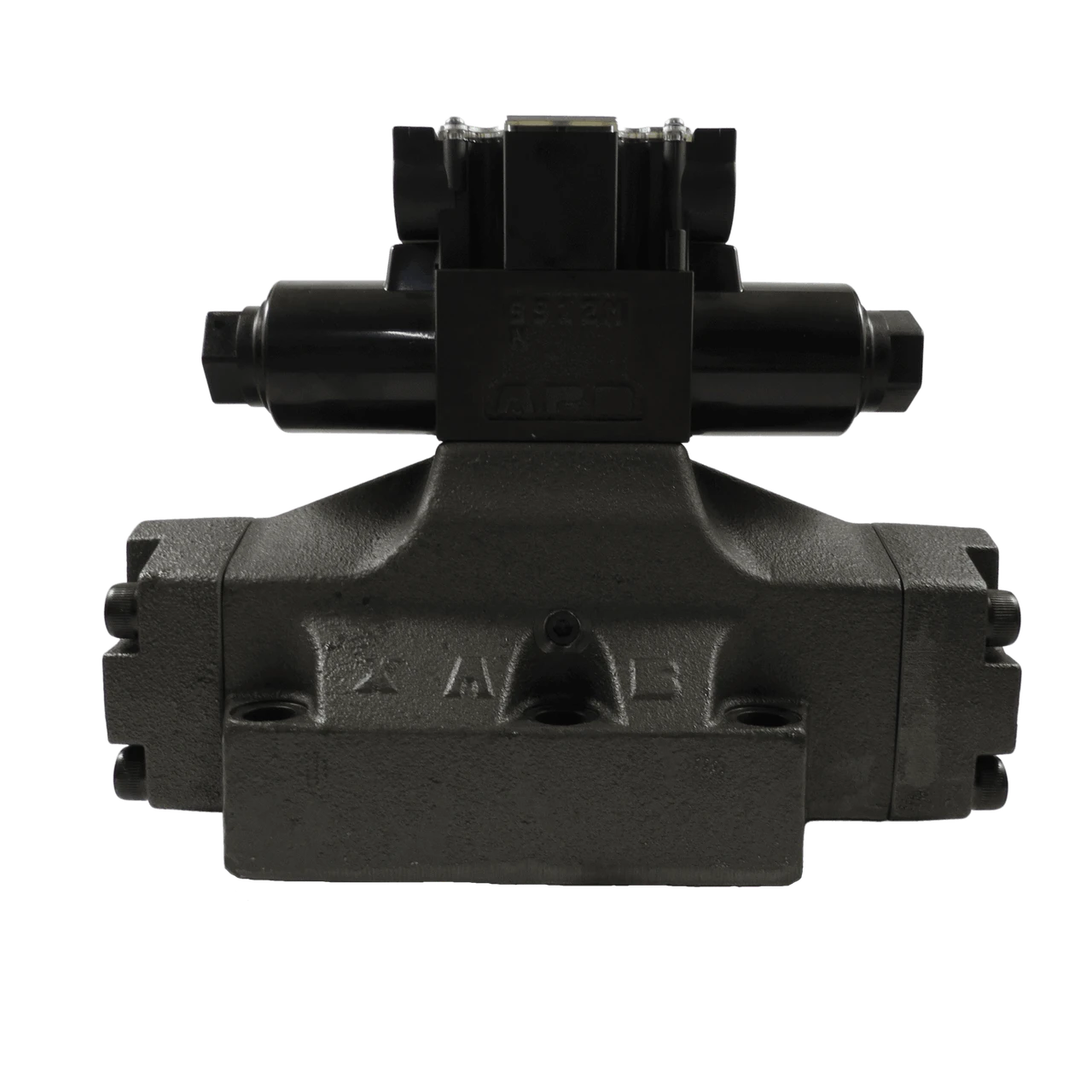

Yuken Directional Valve Pilot Operated (DSHG-06-3C4-D24-5390)
Yuken Directional Valve Pilot Operated (DSHG-06-3C4-D24-5390) offers high-efficiency flow control in demanding industrial systems. With a robust design, it provides reliable directional flow management and is suited for high-pressure operations.
This industrial pilot-operated valve is ideal for environments requiring precise actuation, featuring a CETOP D08 compliant design. It operates at a maximum pressure of 31.5MPa and a flow rate of 500L/min, ensuring durability and performance in harsh industrial settings.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Max. operating pressure: 31.5MPa (4,570 psi)
Max. flow rate: 500L/min (132 gal/min)
Coil Voltage: 24 V dc
Overall Height: 208.3 mm
Overall Length: 255 mm
Overall Width: 70 mm
Spool Type: Open Center (A, B & T)
T Port Pressure Rating: 3050 psi
Key Features and Benefits
Durable construction for heavy industrial use
High-pressure capability for demanding applications
Spring-centered spool design for precise actuation
Compliant with CETOP D08 standards
Product identification
- Brand: Yuken
- Model / MPN: DSHG-06-3C4-D24-5390
