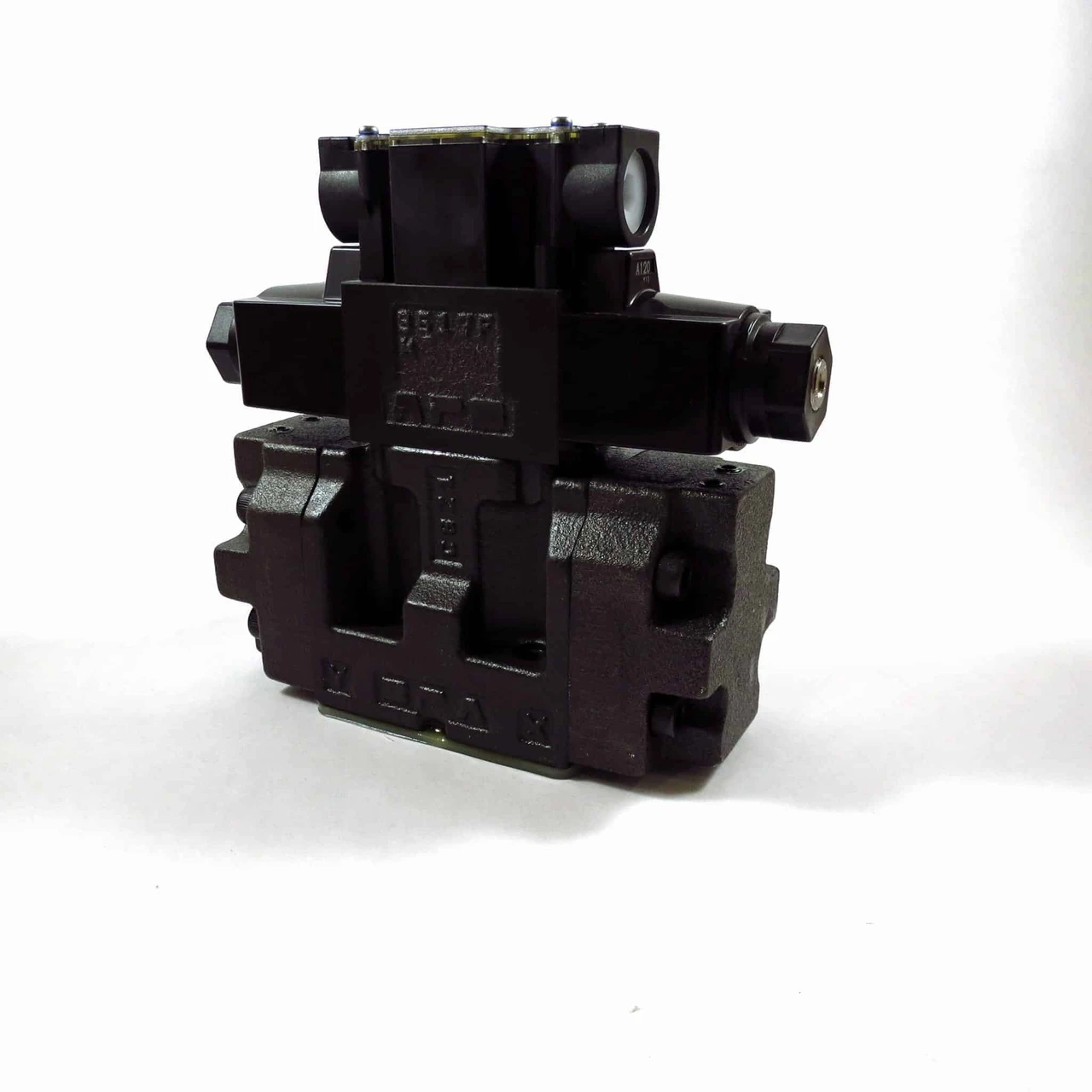

Yuken Directional Valve Pilot Operated (DSHG-03-3C2-T-A100-14)
Yuken Directional Valve Pilot Operated (DSHG-03-3C2-T-A100-14) is designed for robust and reliable hydraulic control in industrial applications. The valve supports a maximum operating pressure of up to 25MPa (3,630 psi) and a flow rate of up to 160L/min (42.3 gal/min), making it suitable for demanding hydraulic systems.
This Yuken directional valve pilot is built for durability and efficiency, ensuring optimal performance in challenging environments. With its advanced features and high flow capacity, it’s the ideal choice for applications requiring reliable and controlled fluid flow.
Specifications and Dimensions
Operating Pressure: Max. 25MPa (3,630 psi)
Flow Rate: Max. 160L/min (42.3 gal/min)
Configuration: CETOP D05, 2-stage valve
Weight: 15.21 lbs
Country of Origin: Japan
US Customs Harmonized Code: 8481.20.0020
Key Features and Benefits
Durable build designed for industrial applications
Supports high operating pressure up to 25MPa
High flow rate of 160L/min for enhanced fluid control
2-stage operation provides precise directional control
Meets CETOP D05 standards for hydraulic valves
Product identification
- Brand: Yuken
- Model / MPN: DSHG-03-3C2-T-A100-14
