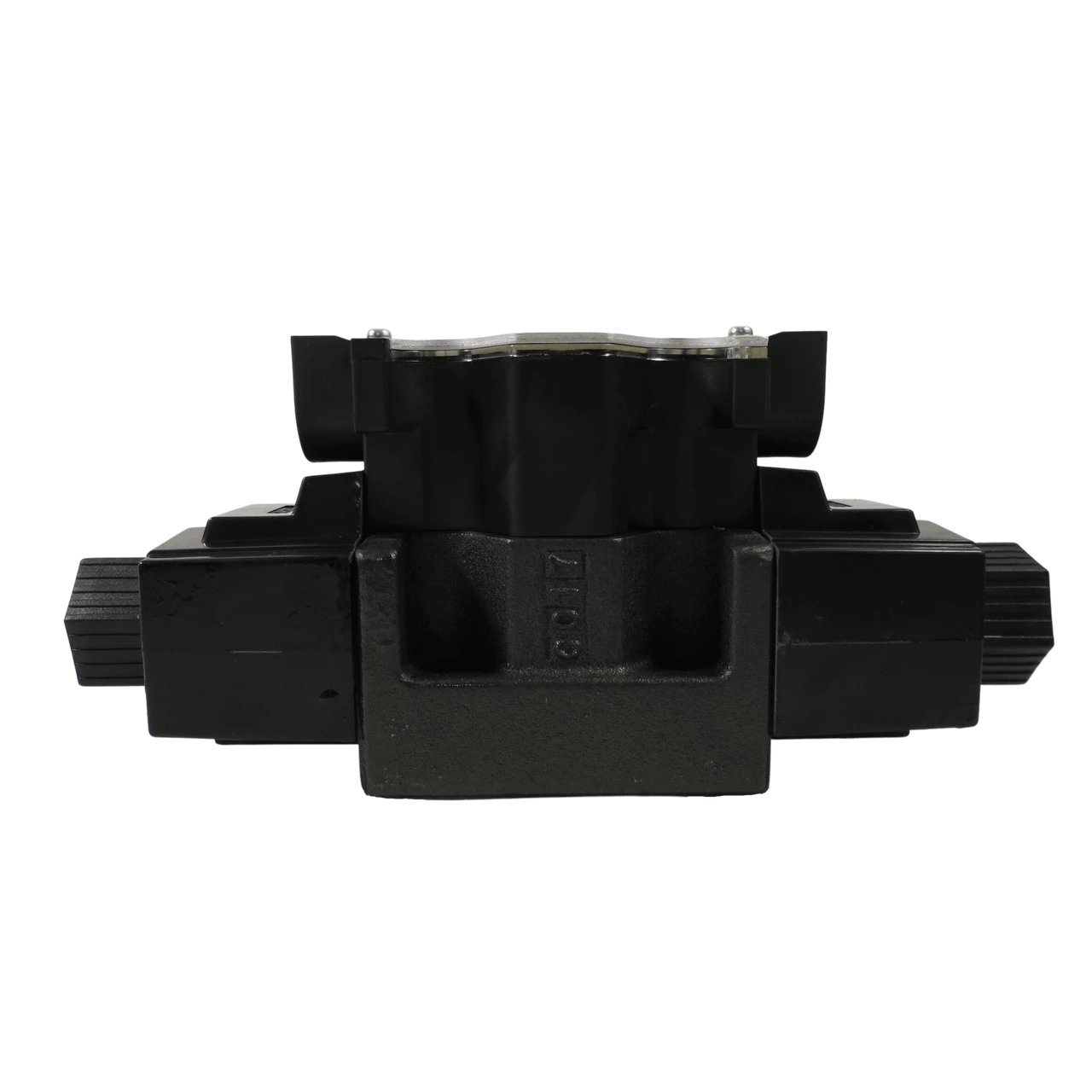

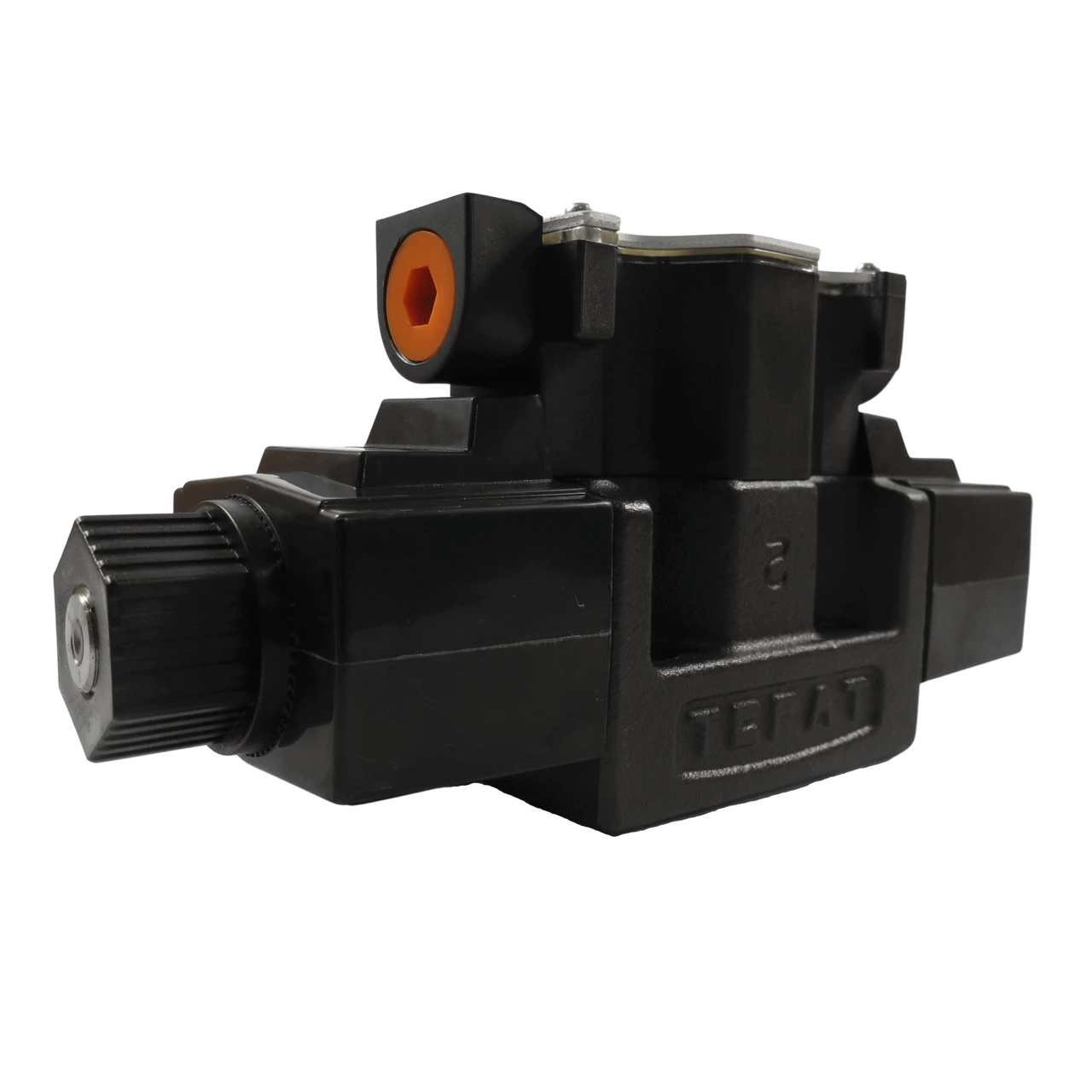

Yuken Dir. Valve Sol. Oper. P->T, A&B-Blocked, 100 Vac (DSG-03-3C60-A100-5090)
Yuken Dir. Valve Sol. Oper. P->T, A&B-Blocked, 100 Vac (DSG-03-3C60-A100-5090) is a high-performance solenoid-operated directional valve designed for precise hydraulic control in 100 Vac systems. This directional valve features a specific port configuration of P to T and A & B blocked, which enhances system stability and reduces pressure spikes.
This Yuken directional valve 100 Vac is built to handle high-pressure applications, supporting a maximum operating pressure of 31.5 MPa and a flow rate up to 120 L/min. Its wet-type solenoid ensures quiet operation and long service life, making it suitable for various industrial applications requiring reliable and consistent hydraulic performance.
Specifications and Dimensions
US Customs Harmonized Code: 8481.20.0020
Country of Origin: Japan
Type: CETOP D05 solenoid directional valve – standard
Max. Operating Pressure: 31.5 MPa (4,570 psi)
Max. Flow Rate: 120 L/min (31.7 gal/min)
Voltage: 100 Vac
Port Configuration: P->T, A&B Blocked
Key Features and Benefits
Supports high operating pressure up to 31.5 MPa
High flow rate capacity up to 120 L/min
Wet-type solenoid reduces noise and extends lifespan
Ideal for use in 100 Vac systems
Product identification
- Brand: Yuken
- Model / MPN: DSG-03-3C60-A100-5090
