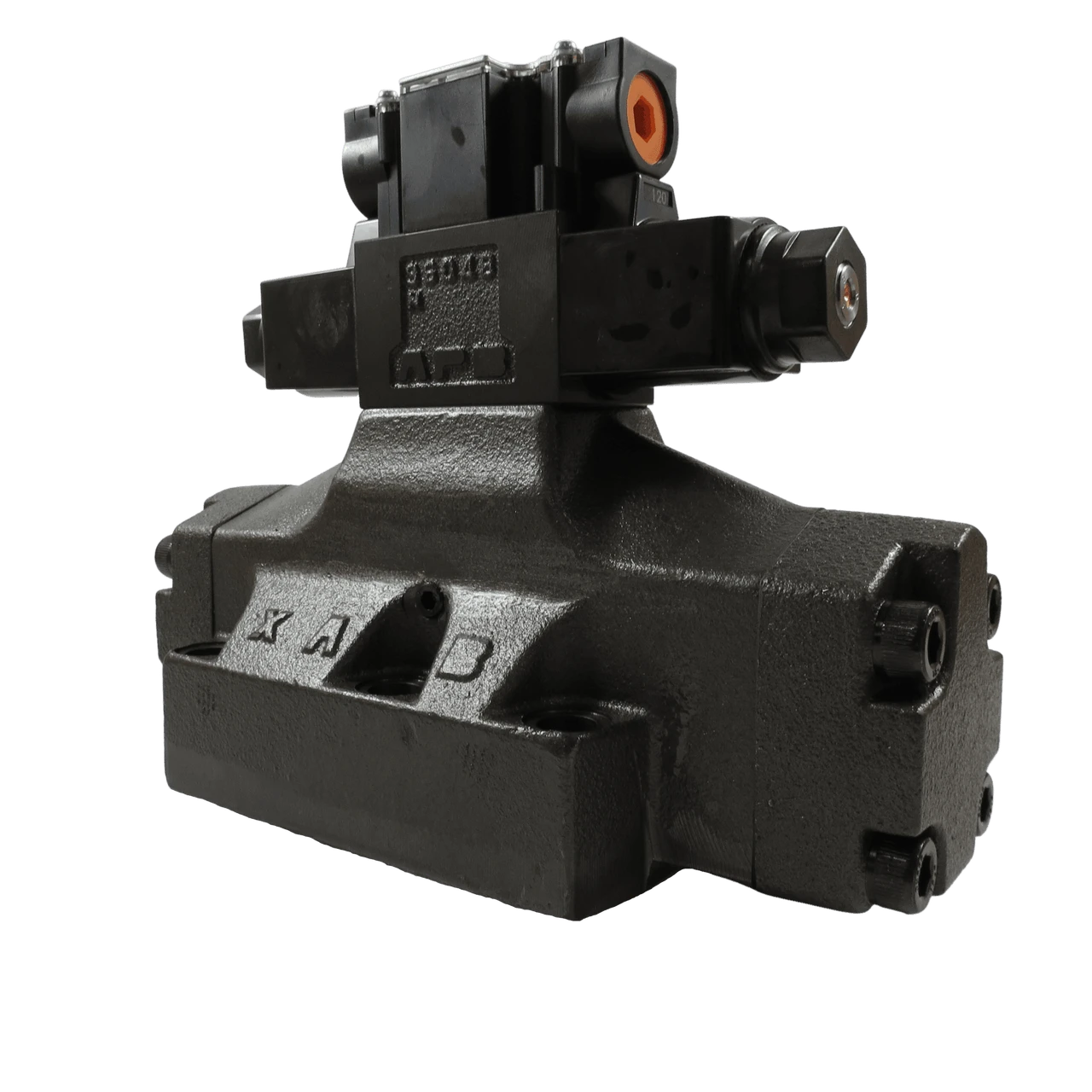

Yuken Dir. Valve Pilot Operated All Open In Center 120 (DSHG-06-3C3-A120-5390)
Yuken Dir. Valve Pilot Operated All Open In Center 120 (DSHG-06-3C3-A120-5390) is built for industrial hydraulic systems requiring precise control and stable operation. Featuring a spring-centered open center spool type, this valve ensures balanced pressure across all ports, making it ideal for managing flow in complex hydraulic circuits.
With a maximum operating pressure of 3050 psi and a wide operating temperature range of 5 °F to 160 °F, the Yuken open center valve is designed to perform reliably in varied industrial settings. The 120V AC coil voltage and robust terminal box construction provide enhanced durability and electrical safety.
Specifications and Dimensions
Spool Type: Open Center (All Ports)
Coil Voltage: 120 V AC (50/60 Hz)
Max Operating Pressure: 3050 psi
Max Operating Temperature: 160 °F
Min Operating Temperature: 5 °F
Overall Height: 208.3 mm
Overall Length: 255 mm
Overall Width: 70 mm
Weight: 27.34 lbs
Key Features and Benefits
All open center spool design for consistent pressure management
Spring-centered configuration for reliable directional control
Robust terminal box for secure electrical connections
Wide temperature range from 5 °F to 160 °F for varied applications
Product identification
- Brand: Yuken
- Model / MPN: DSHG-06-3C3-A120-5390
