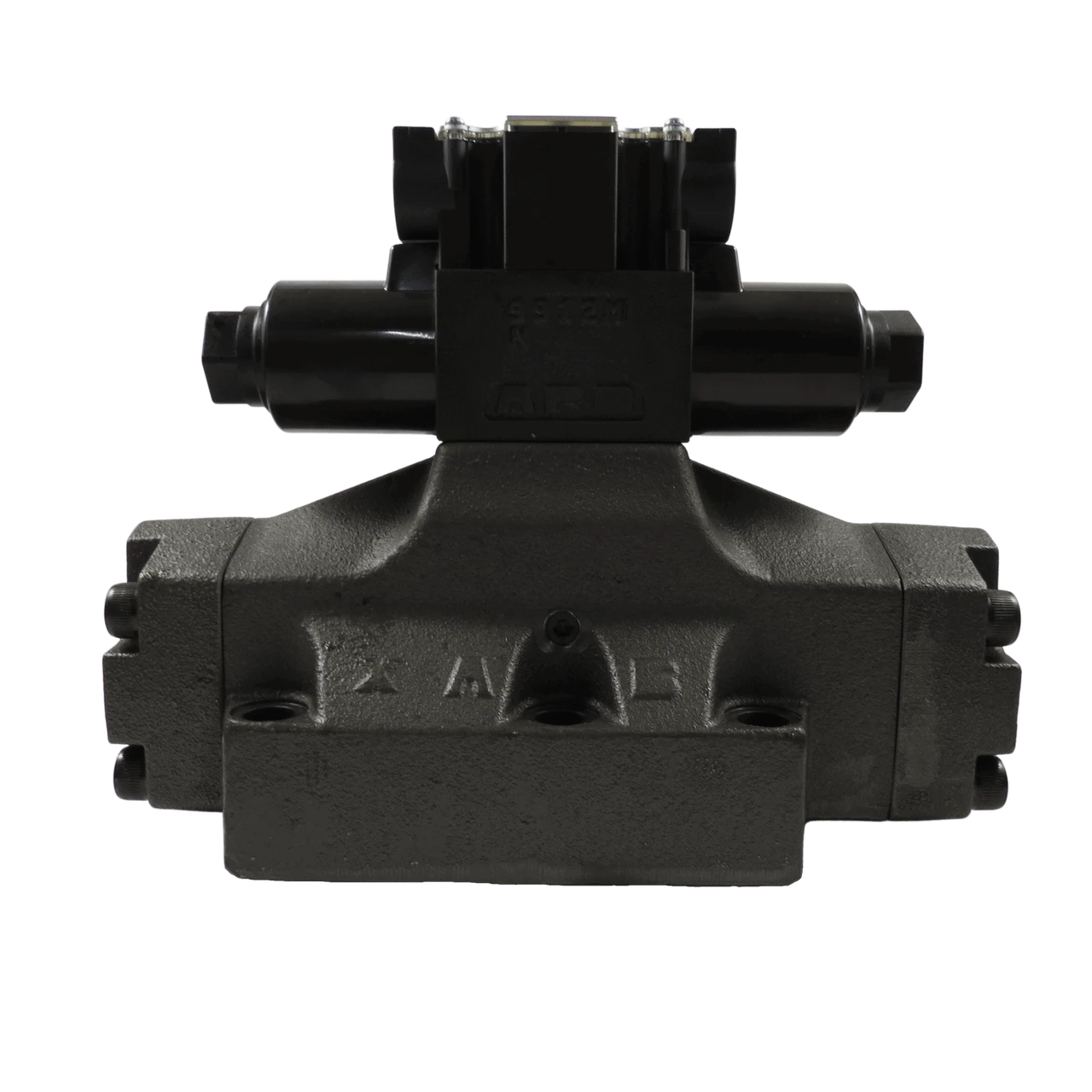

Yuken D08 3-Pos All Ports Open 24VDC Ext-Pilot T-Box (DSHG-06-3C3-E-D24-5390)
Yuken D08 3-Pos All Ports Open 24VDC Ext-Pilot T-Box (DSHG-06-3C3-E-D24-5390) is an advanced directional valve designed for high-pressure hydraulic applications. This model offers efficient flow control, meeting CETOP D08 standards for optimal performance and reliability.
With a maximum operating pressure of 31.5 MPa (4,570 psi) and a flow rate of up to 500 L/min (132 gal/min), it ensures smooth fluid handling even in demanding conditions. The external pilot configuration of this 3-position directional valve allows for precise control in complex hydraulic systems.
Specifications and Dimensions
Max Operating Pressure: 31.5 MPa (4,570 psi)
Max Flow Rate: 500 L/min (132 gal/min)
Country of Origin: Japan
US Customs Harmonized Code: 8481.20.0020
Key Features and Benefits
CETOP D08 standard for consistent performance
External pilot for precise hydraulic control
Supports high-pressure systems up to 31.5 MPa
Handles a high flow rate of up to 500 L/min
Product identification
- Brand: Yuken
- Model / MPN: DSHG-06-3C3-E-D24-5390
