Yost drill press vise details

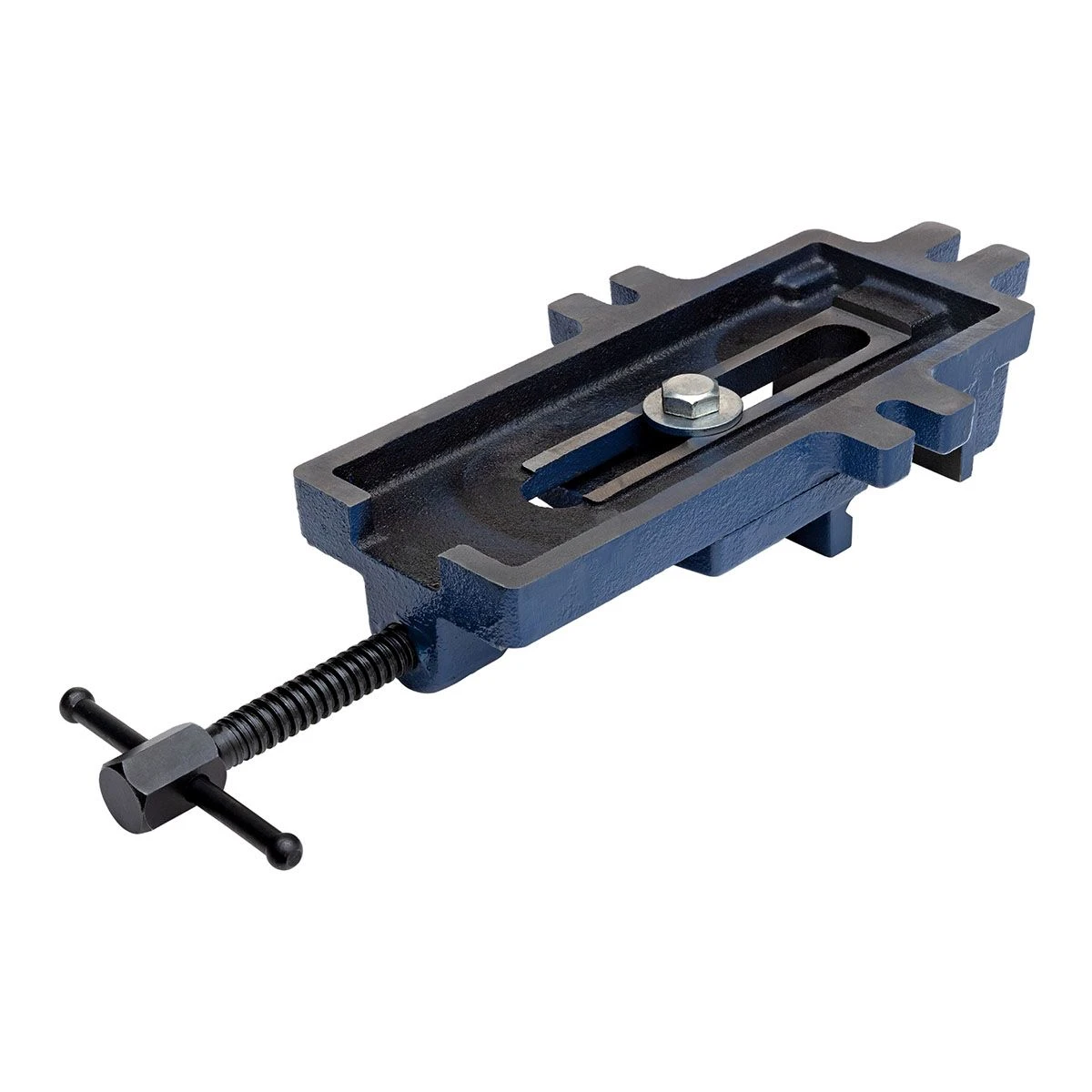

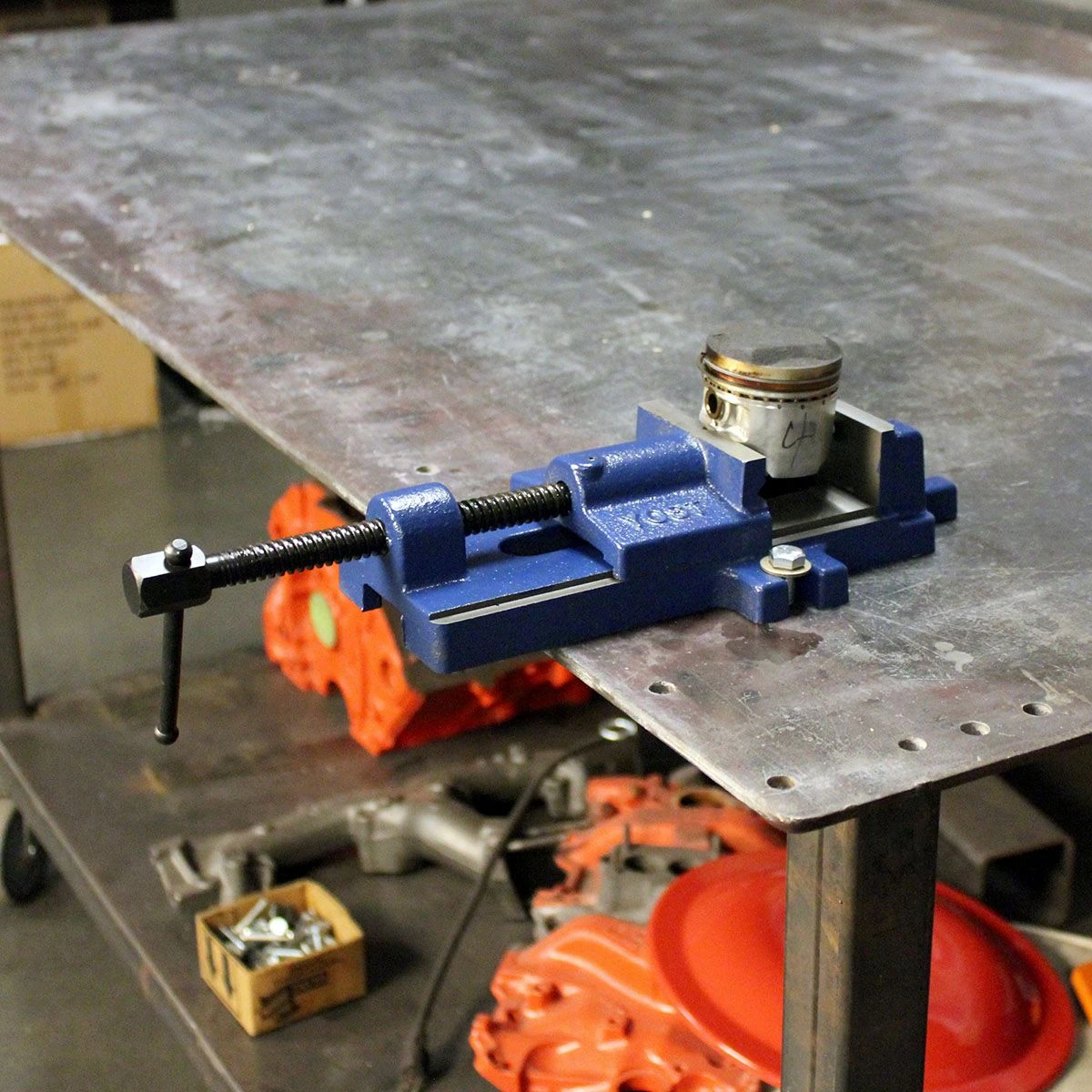

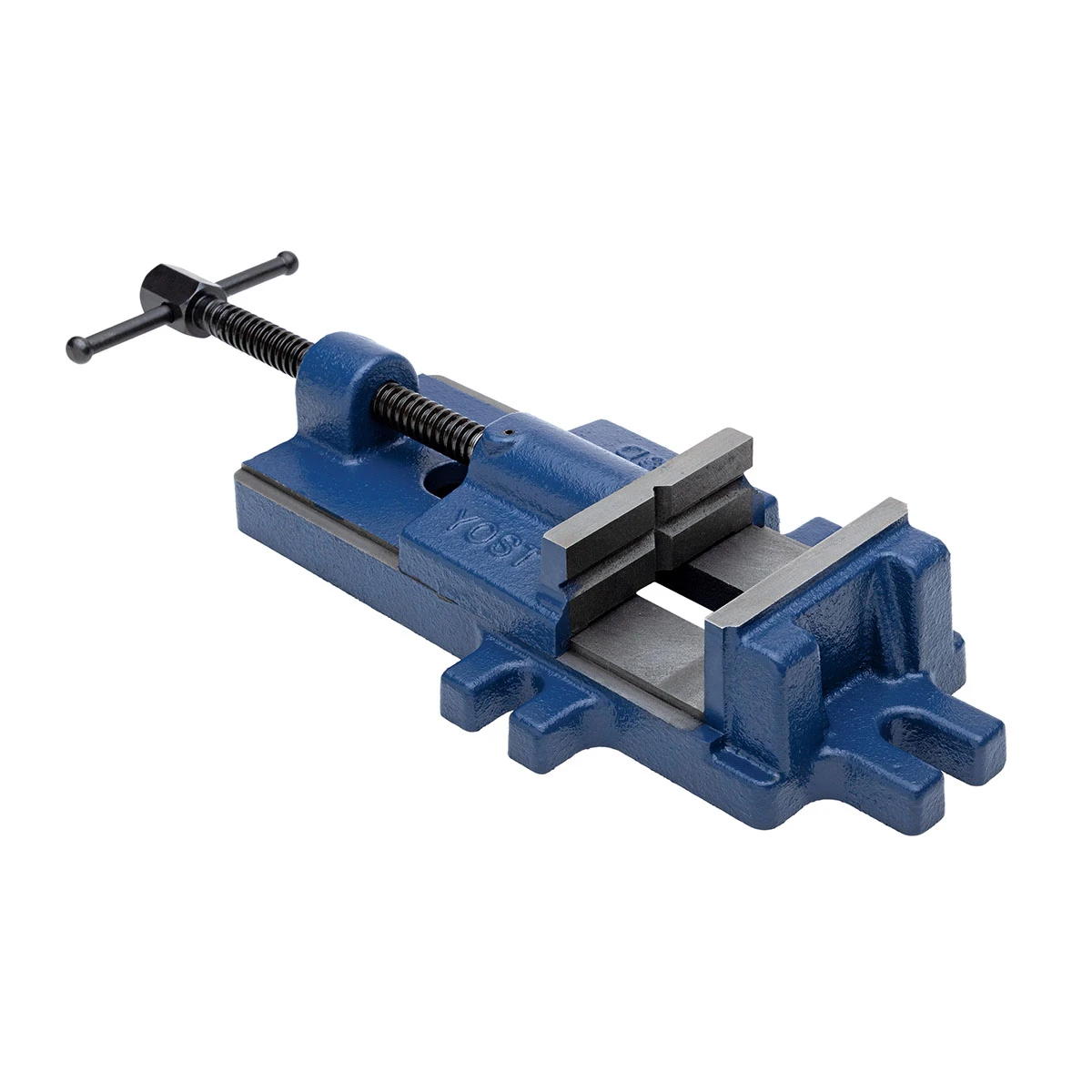

Yost Model 3D Yost General Purpose Drill Press Vise (56435)
Yost Model 3D General Purpose Drill Press Vise (56435) is designed to offer stable clamping action, perfect for drilling and precision tasks. Constructed from high-strength class 30 cast gray iron, this 3.5-inch vise is built to withstand intense pressure with a tensile strength of 30,000 PSI. It meets federal specifications for durability and reliability, making it ideal for various professional applications.

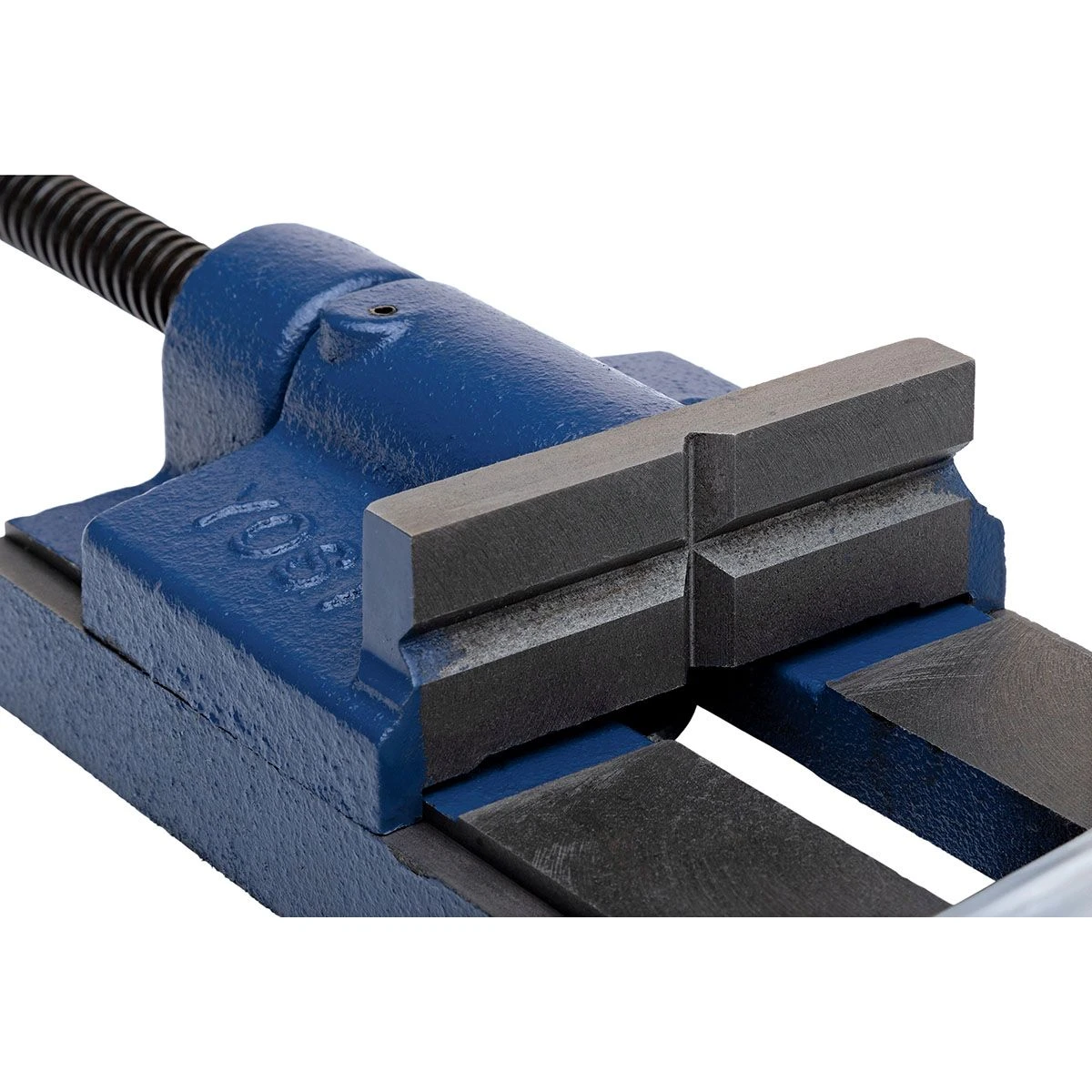

It features a stationary base, ensuring secure attachment to your drill press bench. The moveable jaw is designed with horizontal and vertical grooves for enhanced grip, especially for round stock, while the smooth stationary jaw provides a solid clamp.
Specifications and Dimensions
Jaw Width: 3.5 inches
Overall Dimensions: 2.75 x 4.5 x 13 inches (H x W x D)
Material: Class 30 Cast Gray Iron
Tensile Strength: 30,000 PSI
Mounting Base Slots: 3 slots (0.8125" x 0.5")
Federal Specification Compliance: GGG-V-443-A Type 1 Class 2 Style B
NSN Compliance: 3460-00-277-3504
CID Compliance: AA51123-B3 Type 2 Size 3
Key Features and Benefits
High-strength class 30 cast iron construction for longevity
Stationary base for secure mounting to drill press benches
Continuous-rolled main screw for smooth operation
Grooved moveable jaw holds circular stock securely
Non-slip rubber washers on the handle prevent unwanted movement
Product identification
- Brand: Yost
- Model / MPN: 56435
