Yost drill press vise details

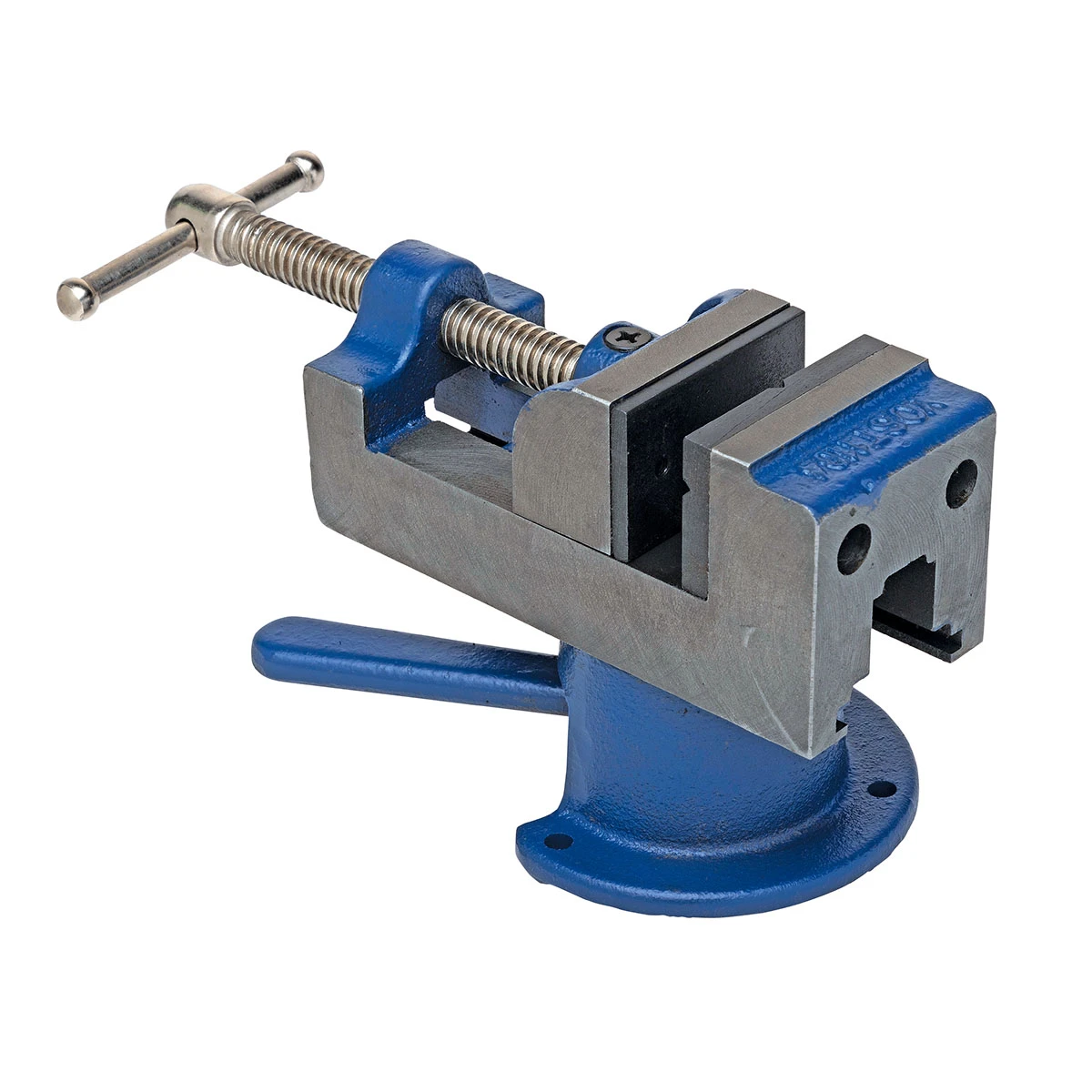

Yost Model 1104 Drill Press Vise With Swivel Base (56437)
Yost Model 1104 Drill Press Vise With Swivel Base (56437) offers stable, accurate clamping for precise drilling tasks. Made from high-strength 30,000 PSI gray iron castings, this vise is built to last and meets Federal Specifications AA51123-D1, Type IV, Size 1 for dependable performance.
The removable swivel base allows for versatile positioning, and the vise can function as a conventional drill press vise when the base is removed. Its fast-action main screw and replaceable hardened steel jaws make it an excellent choice for both professional and DIY users needing precision and flexibility.
Specifications and Dimensions
Meets Federal Specifications: AA51123-D1 (Type IV; Size 1)
NSN: 3460-00-221-1104
Material: High strength 30,000 PSI gray iron castings
Removable swivel base for 360° rotation and secure locking
Fast-action coarse-pitch main screw thread
Replaceable hardened steel jaws
Machined sides and bottom for use on side or end
Key Features and Benefits
High-strength construction ensures durability
360° swivel base offers versatility for precise positioning
Removable base converts it to a conventional drill press vise
Machined sides allow versatile use in multiple positions
Designed to meet federal quality standards
Product identification
- Brand: Yost
- Model / MPN: 56437
