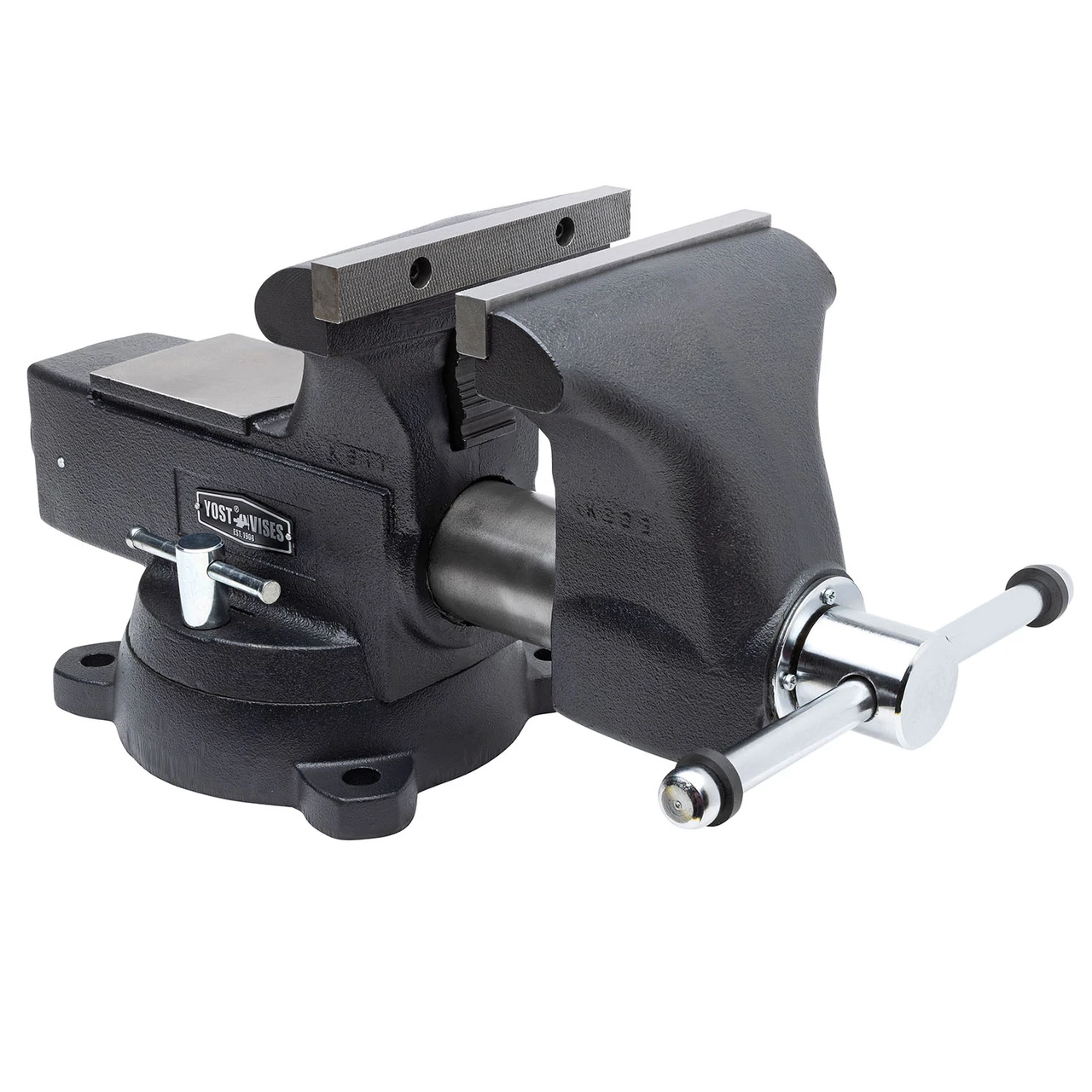

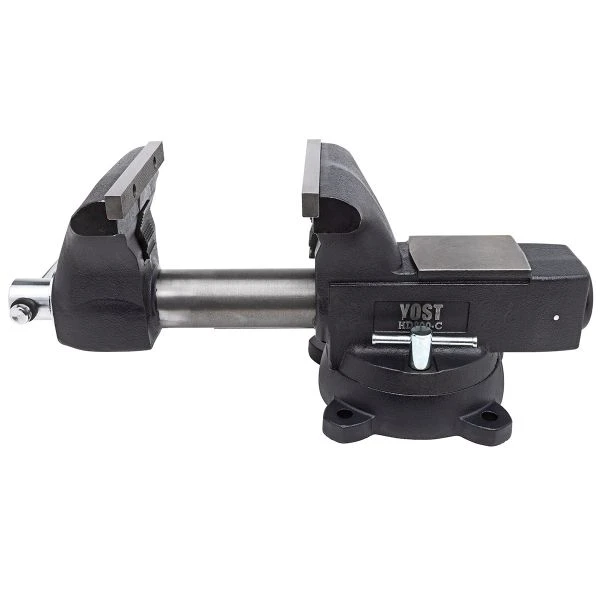

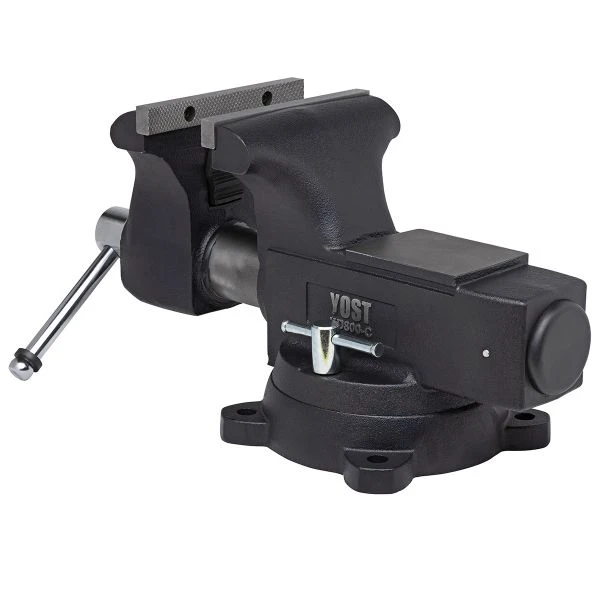

Yost HD800-C Heavy Duty Mechanics Vise (67524)
Yost Heavy-Duty Mechanics Bench Vise 8-Inch with Swivel Base and Anvil (67524) delivers top-tier clamping power, ideal for professional and heavy-duty applications. Built with 60,000 psi ductile iron, this vise ensures durability and stability, making it a valuable addition to any serious workbench.
This vise features an 8-inch jaw width, 7.52-inch jaw opening, and robust swivel base for reliable, secure handling of demanding projects. The large anvil surface and replaceable jaws enhance functionality, providing the flexibility and strength needed for complex tasks.
Specifications and Dimensions
Jaw Width: 8.01 inches
Maximum Jaw Opening: 7.52 inches
Throat Depth: 5.02 inches
Pipe Diameter Capacity: 0.25 to 4 inches
Screw and Nut Thread: Acme, 7/8" – 4 TPI
Handle End Stop Material: Rubber
Maximum Jaw Clamping Force: 55 kN (12364 lbs.)
Materials: QT450-12 Ductile Iron, Steel, A3 Steel
Replaceable Jaws and Pipe Jaws Hardness: 45-56 HRC
Swivel Lock Type: Toothed
Weight: 103.6 lbs.
Key Features and Benefits
60,000 psi ductile iron construction for extreme durability
Interlocking swivel base prevents accidental rotation
Sealed design enhances rigidity and protects the spindle
Extra-large anvil surface for heavy-duty impact tasks
Replaceable serrated jaws and pipe jaws for versatile grip
Product identification
- Brand: Yost
- Model / MPN: 67524
