Yellow Jacket Digital Manifold Backpack Kit With Set Of 6 Plus Ii Hoses (40885)
The YELLOW JACKET TITANMAX Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multifunction buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth to the YJACK VIEW App or measureQuick App for further analysis.
Key Features and Benefits

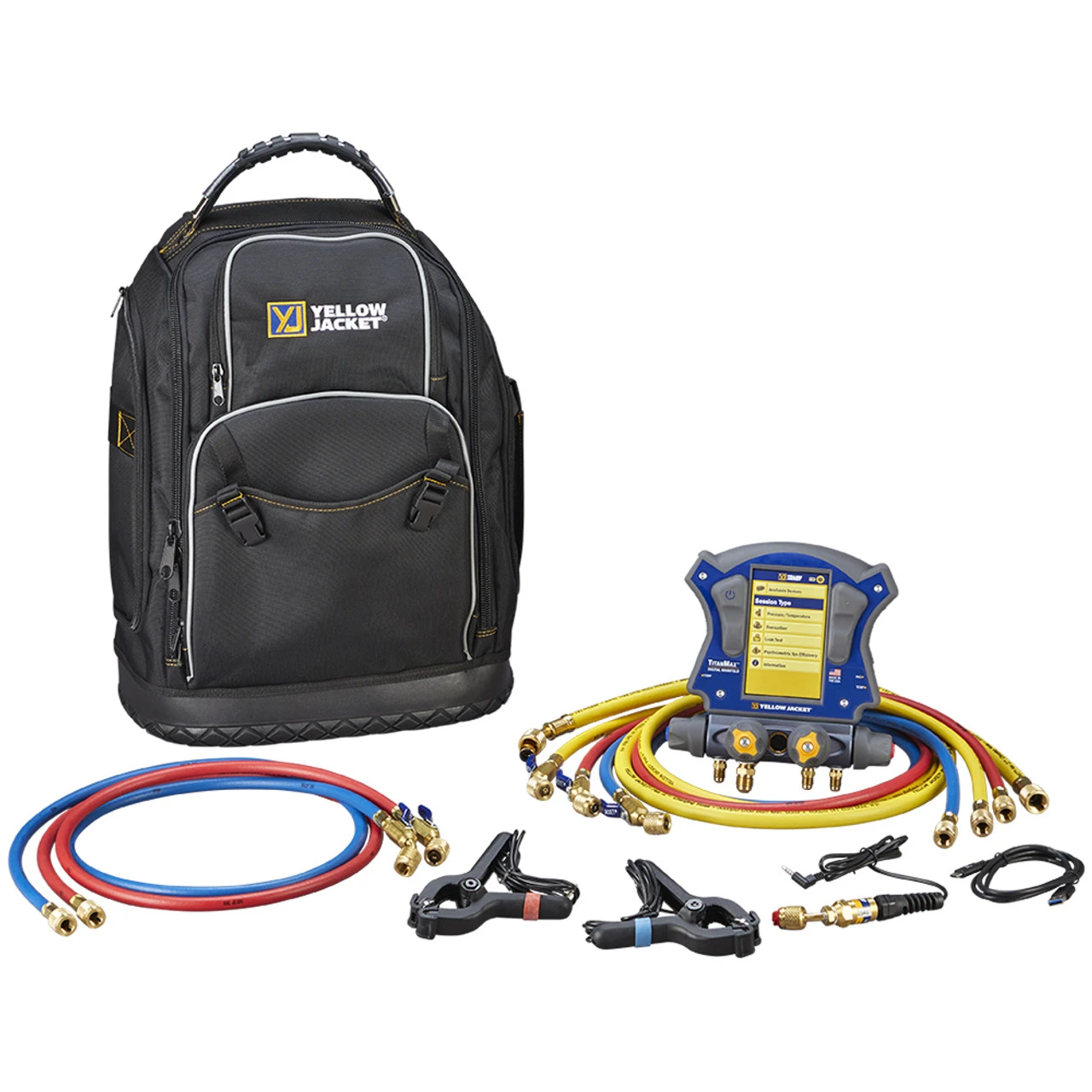

Includes Hoses: (3) 60" 1/4" RYB Compact Ball Valve, (1) 60" 3/8" Yellow Vacuum Hose 3/8" Straight x 3/8" 45°, (2) Compact Ball Valve 1/4" x 5/16"
Measures high and low side pressures and temperatures
Displays vapor and liquid saturation temperatures
Calculates system superheat and subcooling
On-board data logging; export to your computer with USB or to your phone via YJACK VIEW App
Compatible with measureQuick App
Pressure hold mode displays rate of change for vacuum and positive pressure measurements
Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW

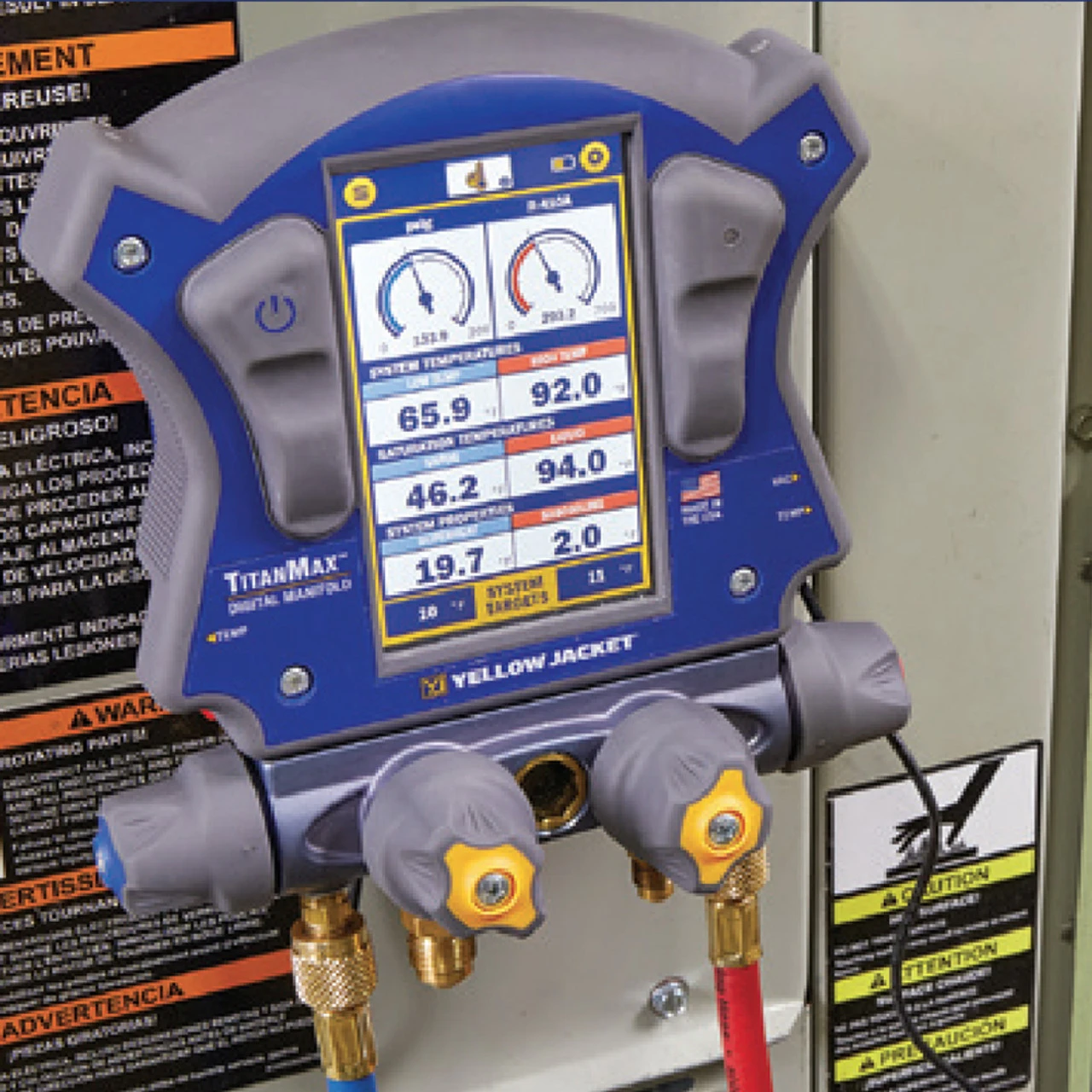

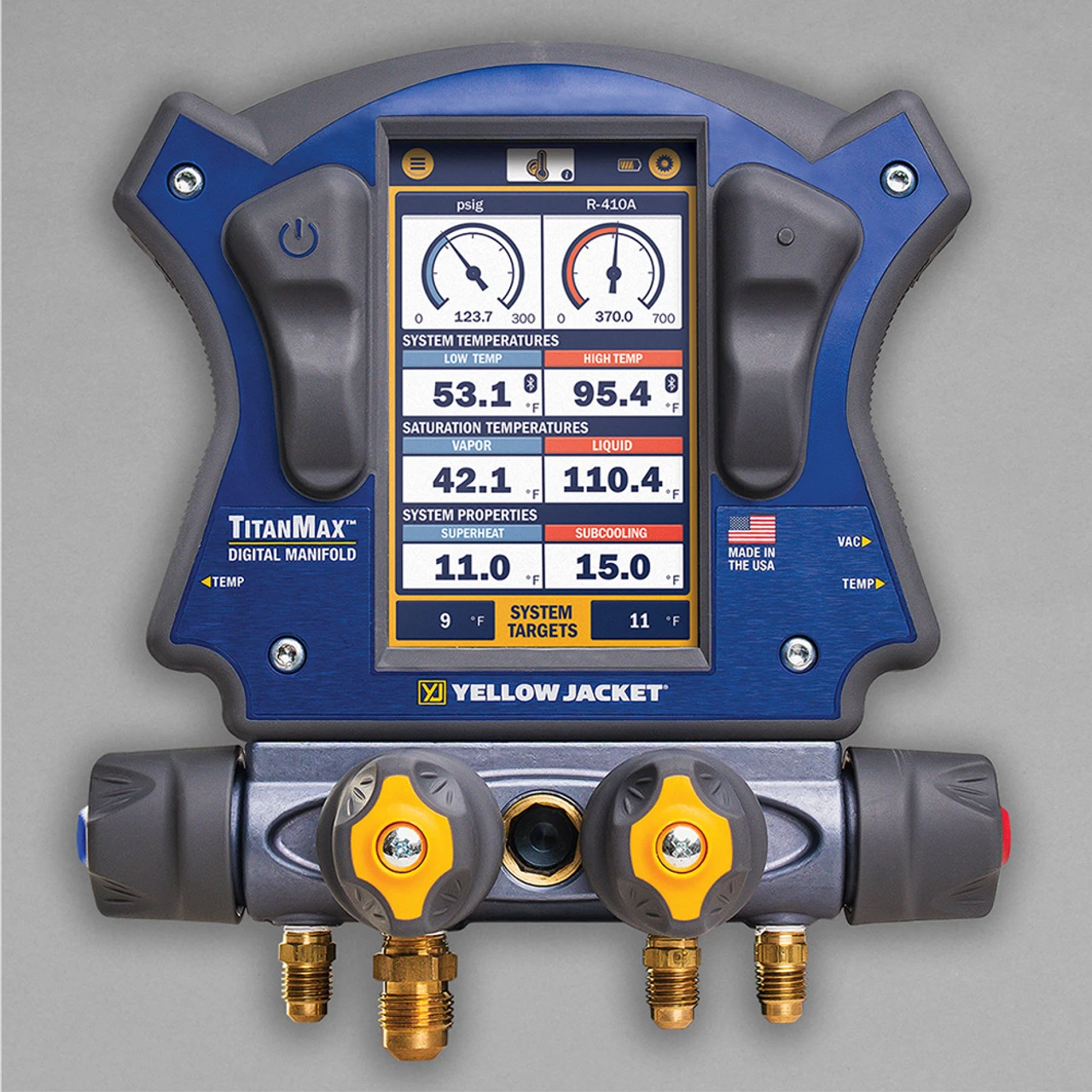

High resolution, full color, backlit, 5" touchscreen display
Ultimate user interface – information on major screens
Adjustable timing for auto shut-off
Touchscreen never has to be calibrated
Digital and graphical pressure/temperature measurements
Choose from relevant refrigerant profiles stored including A2L – may designate 3 favorites
Robust housing with ergonomic grip
4-way TITAN valve block

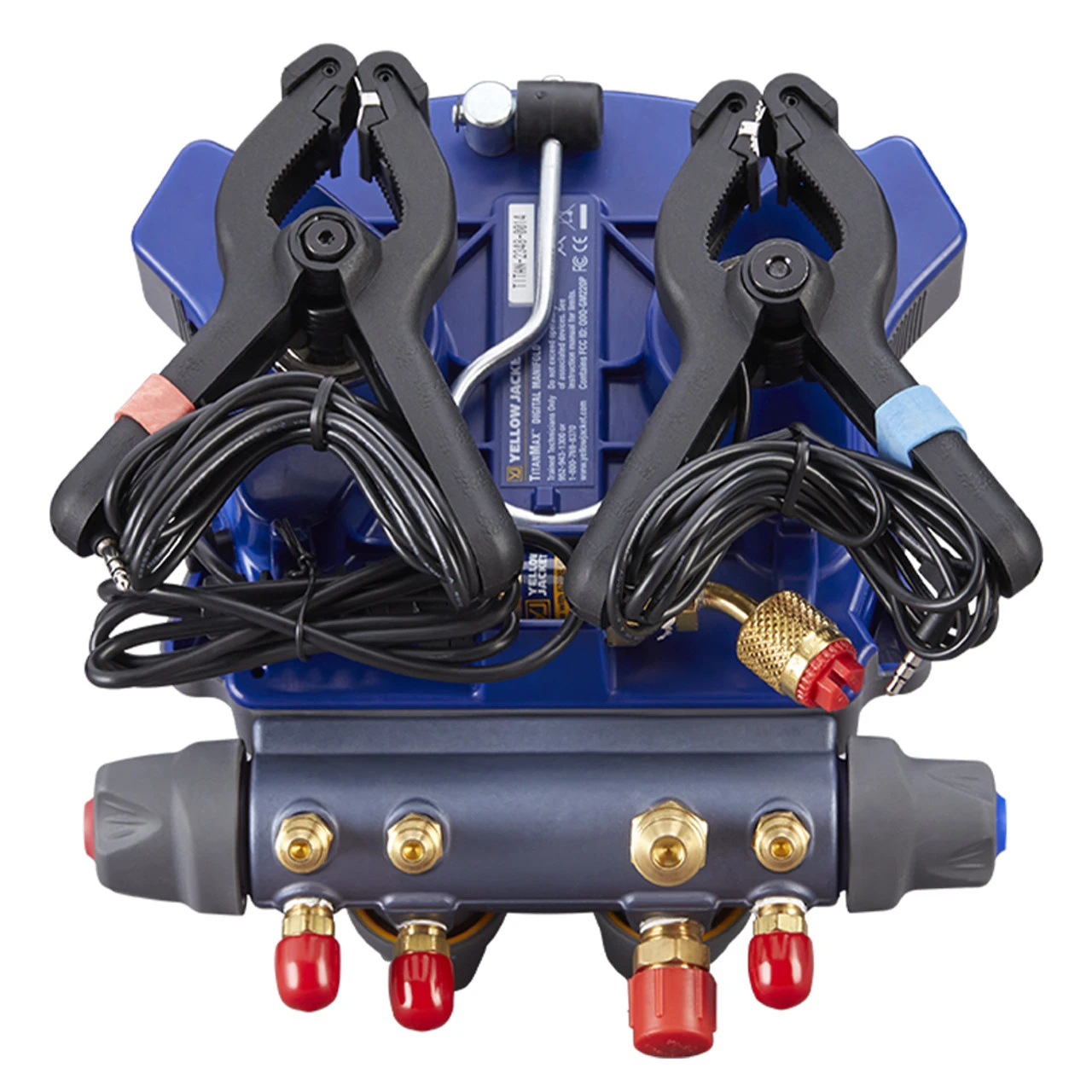

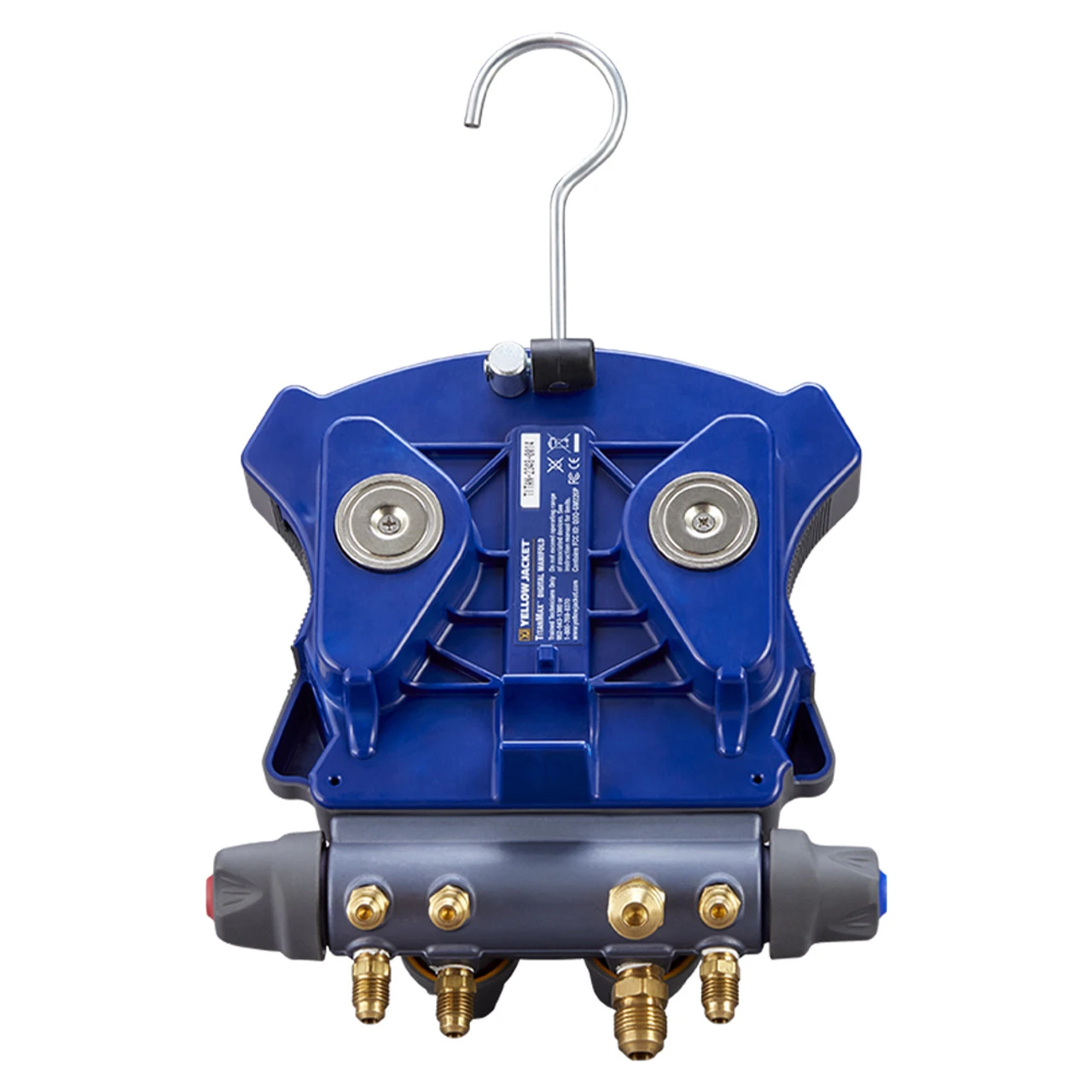

Integrated magnets for mounting on equipment cabinet may also be used to store TITAN Temperature Clamps
Convenient connections for USB port, temperature clamps, and vacuum sensor
External vacuum sensor with high and low alarms
Vacuum measurements, set targets and leak testing
Larger temperature clamps (2) for up to 1-5/8" pipes
Bluetooth 5.2; range up to 1,000 feet
Maximum working pressure 740 psia (51.0 bar)
Multiple languages: French, Spanish, German and English
Re-chargeable battery with life indicator
Continuous use no backlight: 80 hours
Continuous use with full backlight: 4.5 hours
US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
Backpack storage included
Measure HVAC/R system pressure, temperature, saturation temperature, superheat and subcooling
Monitor system evacuation status
Check indoor air comfort and system efficiency with psychrometric air calculations: Percent relative humidity, dry bulb, wet bulb and dew point temperature measurements
Monitor status of all nearby YJACK, TITANMAX, and P51-870 TITAN devices
Customize data view for each measurement
Freely switch between multiple simulta- neous sessions without loss of data
Create highly customized datalogs to be saved or emailed from your smart device
Choose from 126 refrigerant profiles found in the REFPROP database
Plus all the great features of the ManTooth app
Available on iOS (version 10 or later) and Android (version 8 or later) smart devices
Product identification
- Brand: Yellow Jacket
- Model / MPN: 40885
