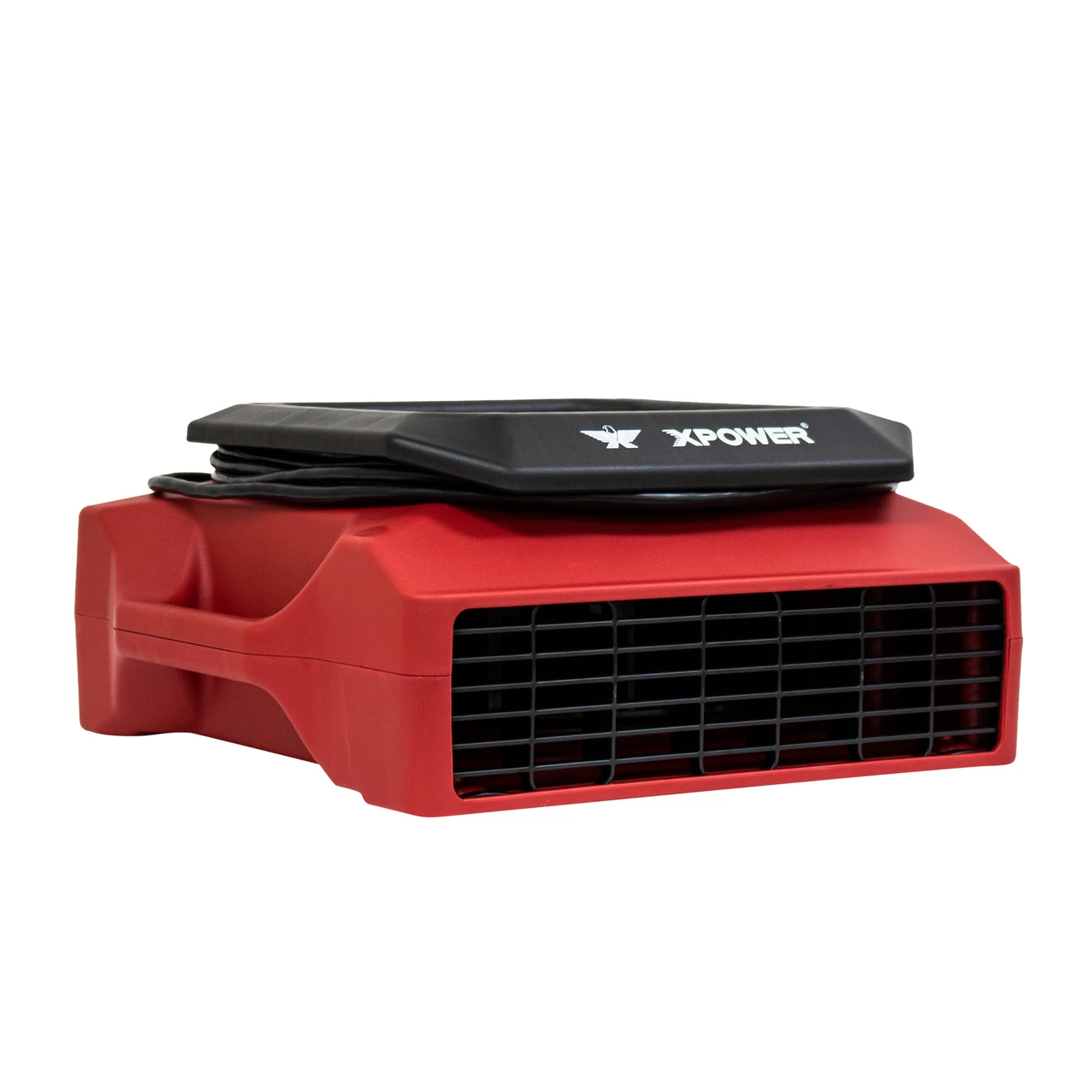

XPOWER PL-700A Red Low Profile Air Mover, 1050 CFM

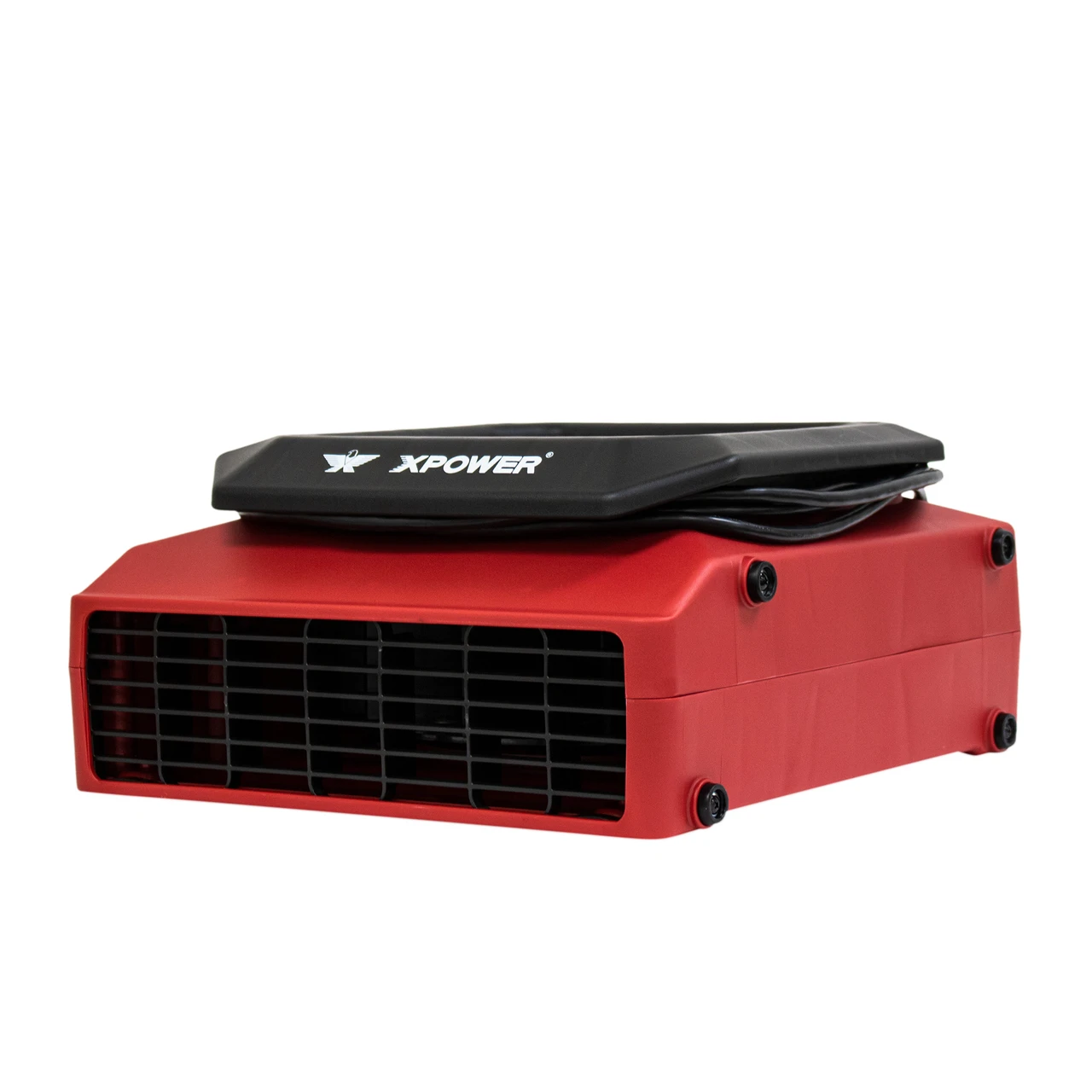

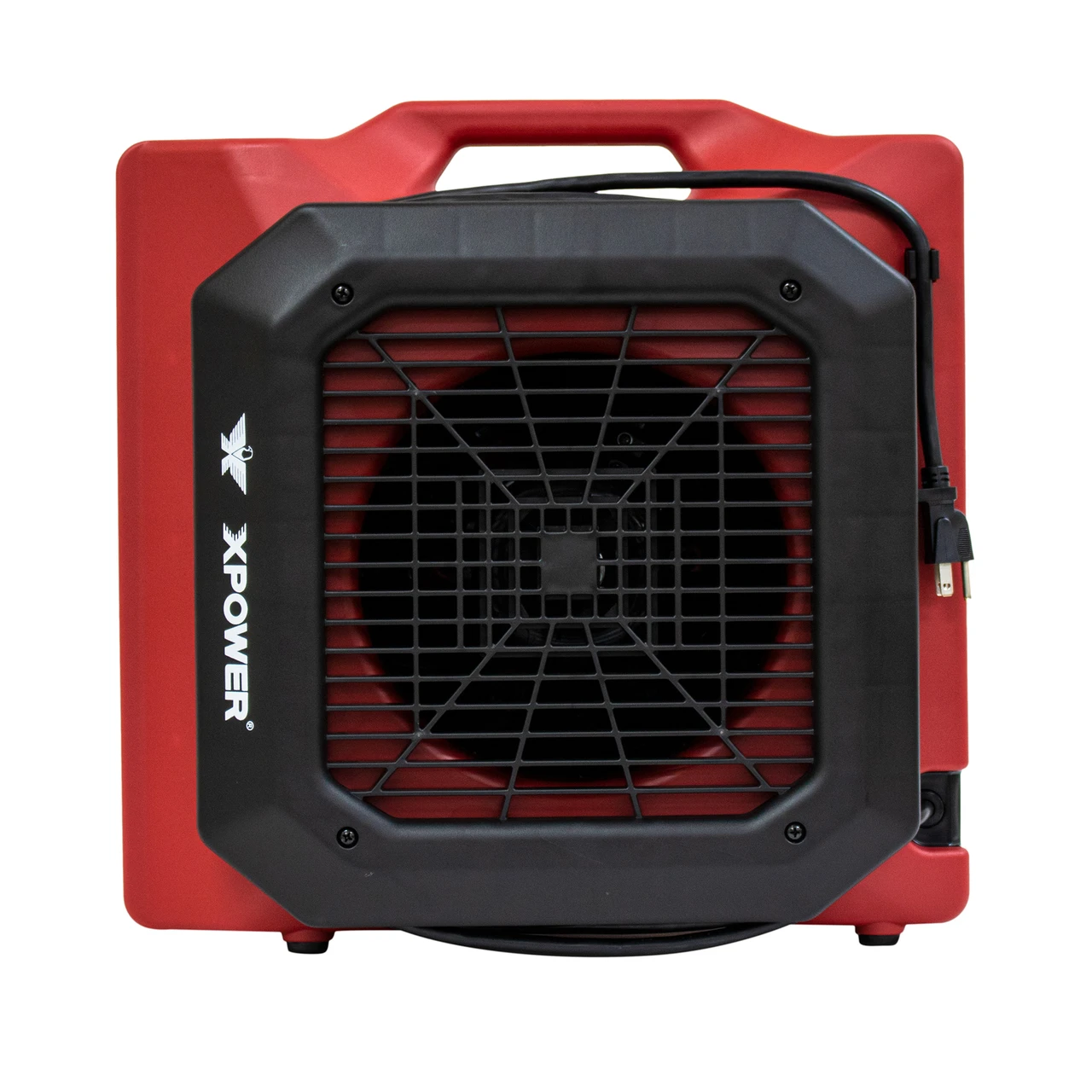

The red XPOWER PL-700A directs airflow from a low-profile housing measuring 8.3 inches high. Its three-speed control and daisy-chain outlets support a multi-unit layout, while the 1050 CFM rating describes airflow rather than a guaranteed drying time.
Specifications and included details
- PL-700A Red with a listed 1/3 HP induction motor and 1050 CFM rated airflow.

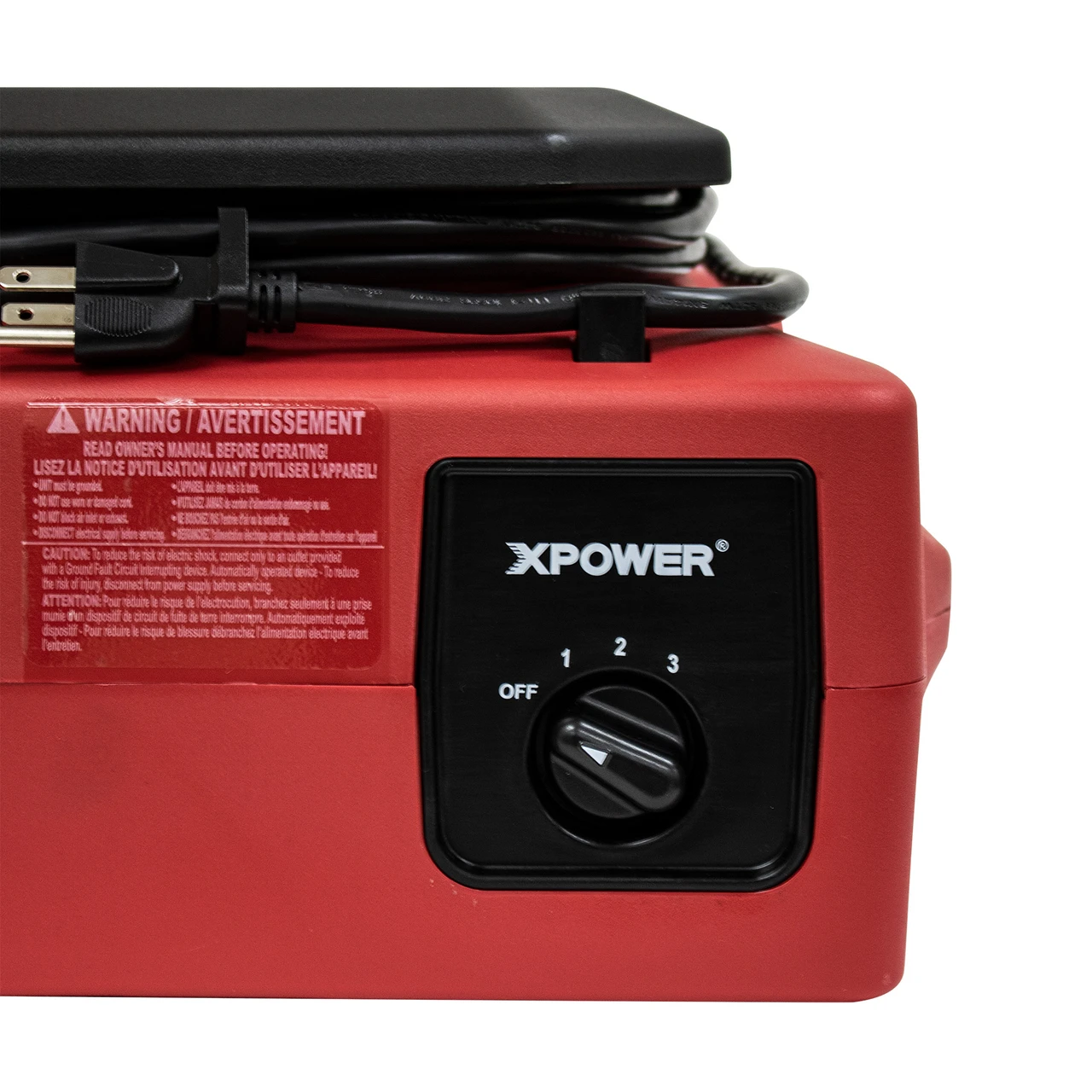

- Three-speed control; listed current draw is 2.8 A on the highest speed.
- Unit dimensions are 17.7 x 17.7 x 8.3 inches; unit weight is 19.8 pounds.
- Polypropylene housing and 15 ft power cord.

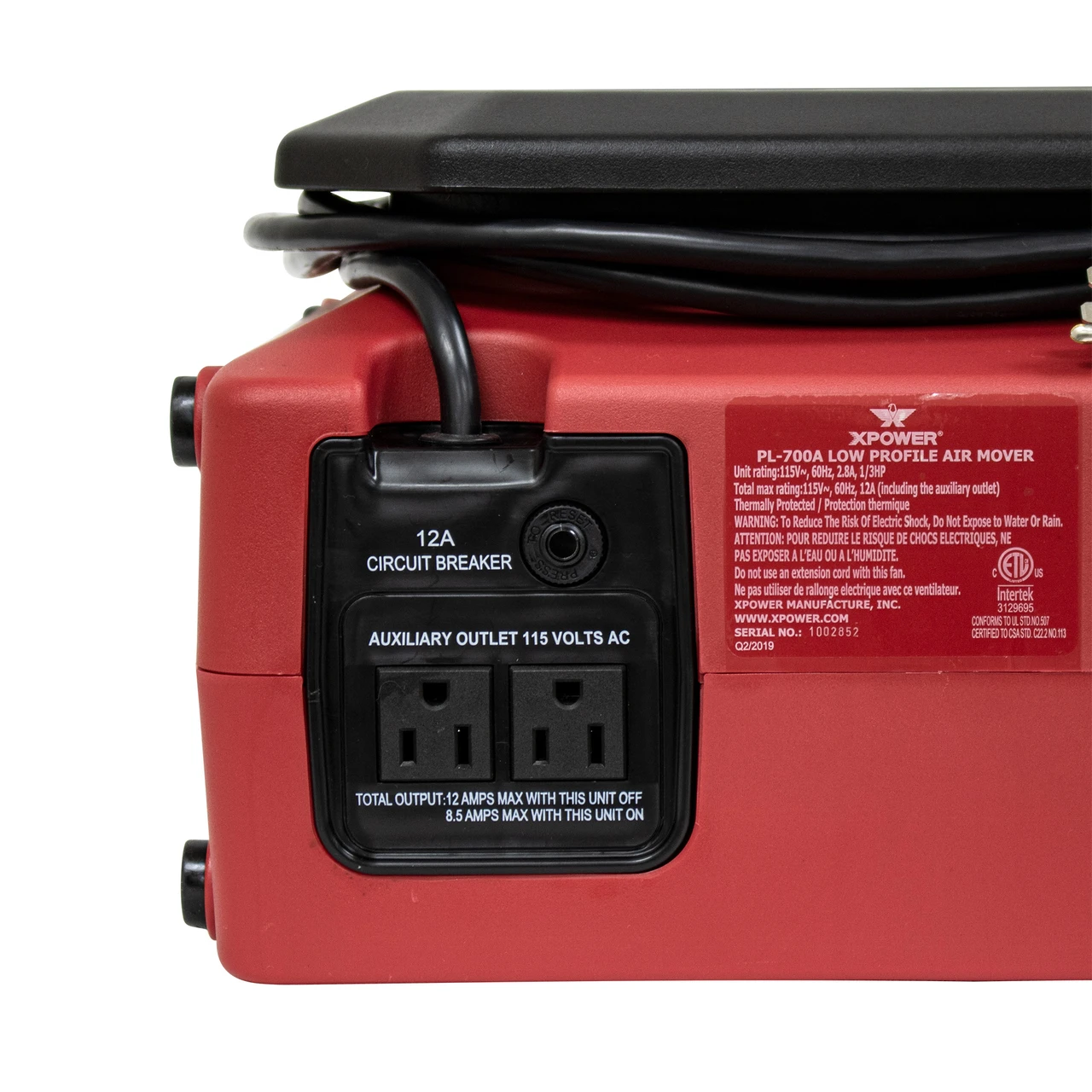

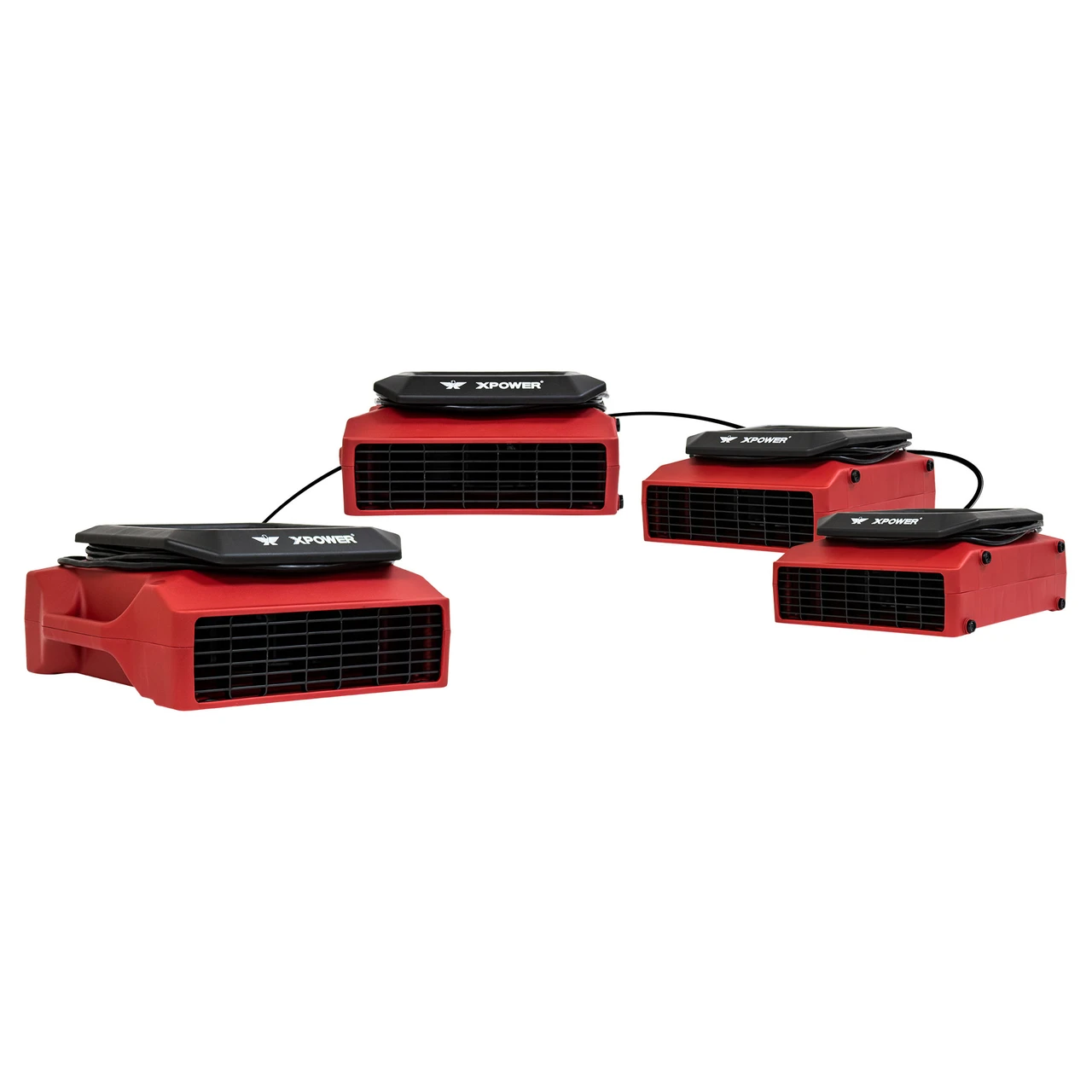

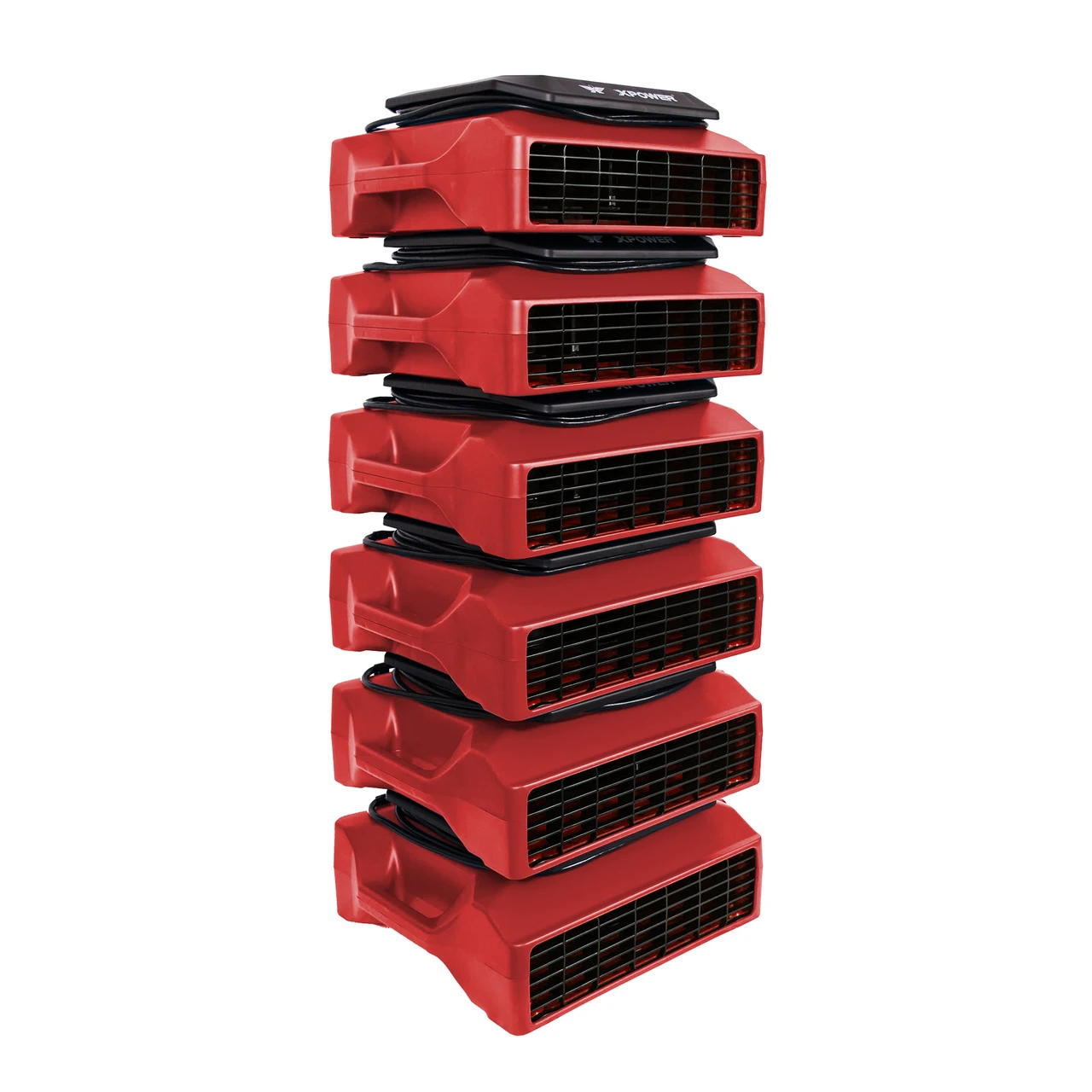

- Built-in daisy-chain outlets with dual thermal protection; storage stacking up to six units is listed.
Before ordering
Verify supply voltage and frequency, circuit capacity and the manufacturer's outlet load limit before linking units. Storage stacking is not permission to operate a stack. Air movement does not establish moisture removal, filtration performance or a fixed drying schedule; check the full drying setup.
Product questions and answers
Does 1050 CFM guarantee a particular drying time?
No. It describes rated airflow. Material, moisture, room conditions and the rest of the drying setup affect drying time.

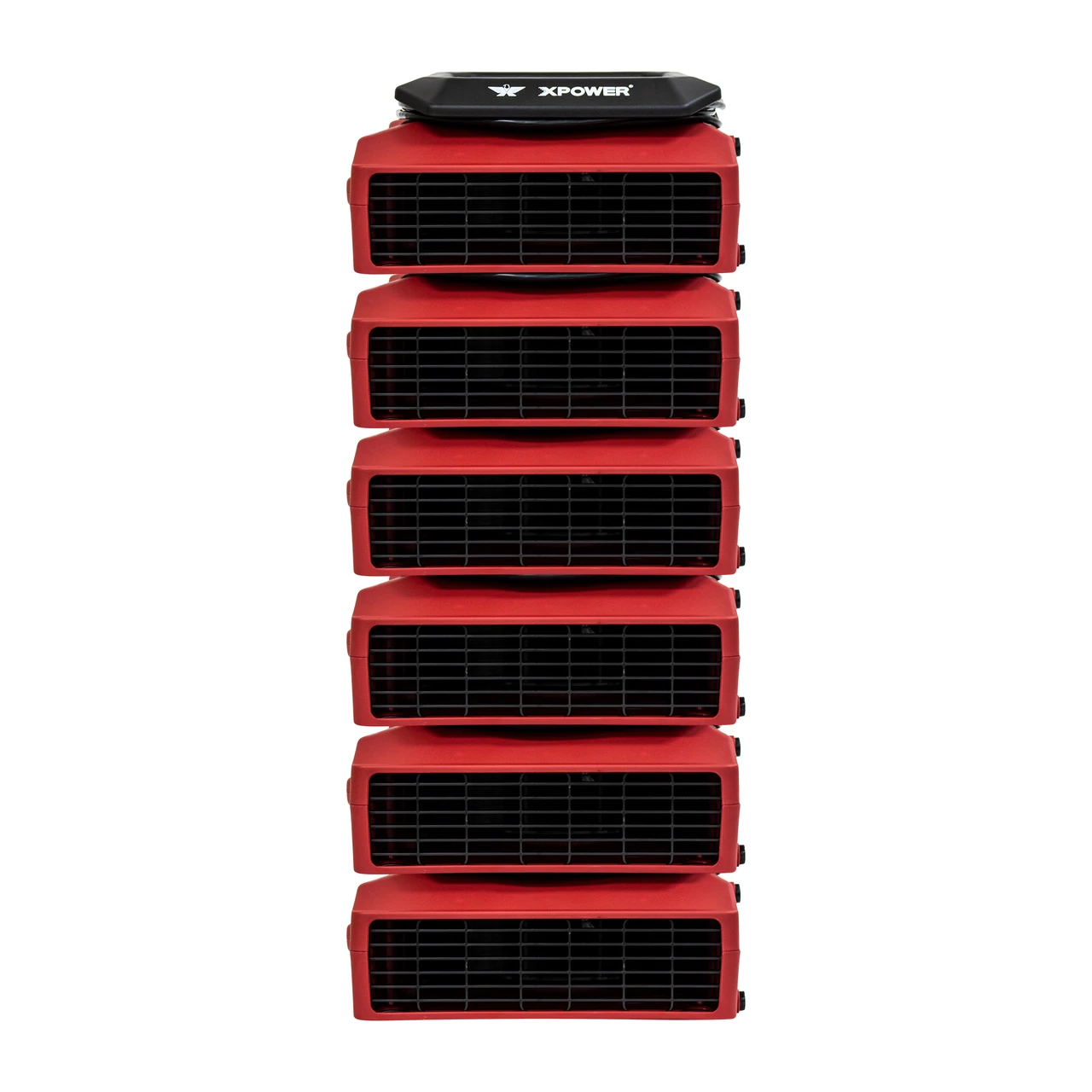

Can I daisy-chain six fans because they stack six high?
No. Six-high stacking is a storage specification. Electrical linking depends on the outlet limit, circuit capacity and manufacturer instructions.
Is the 8.7 inch height the height of the fan?
The listed unit height is 8.3 inches. The 8.7 inch figure describes the box, so use unit dimensions when checking working clearance.
