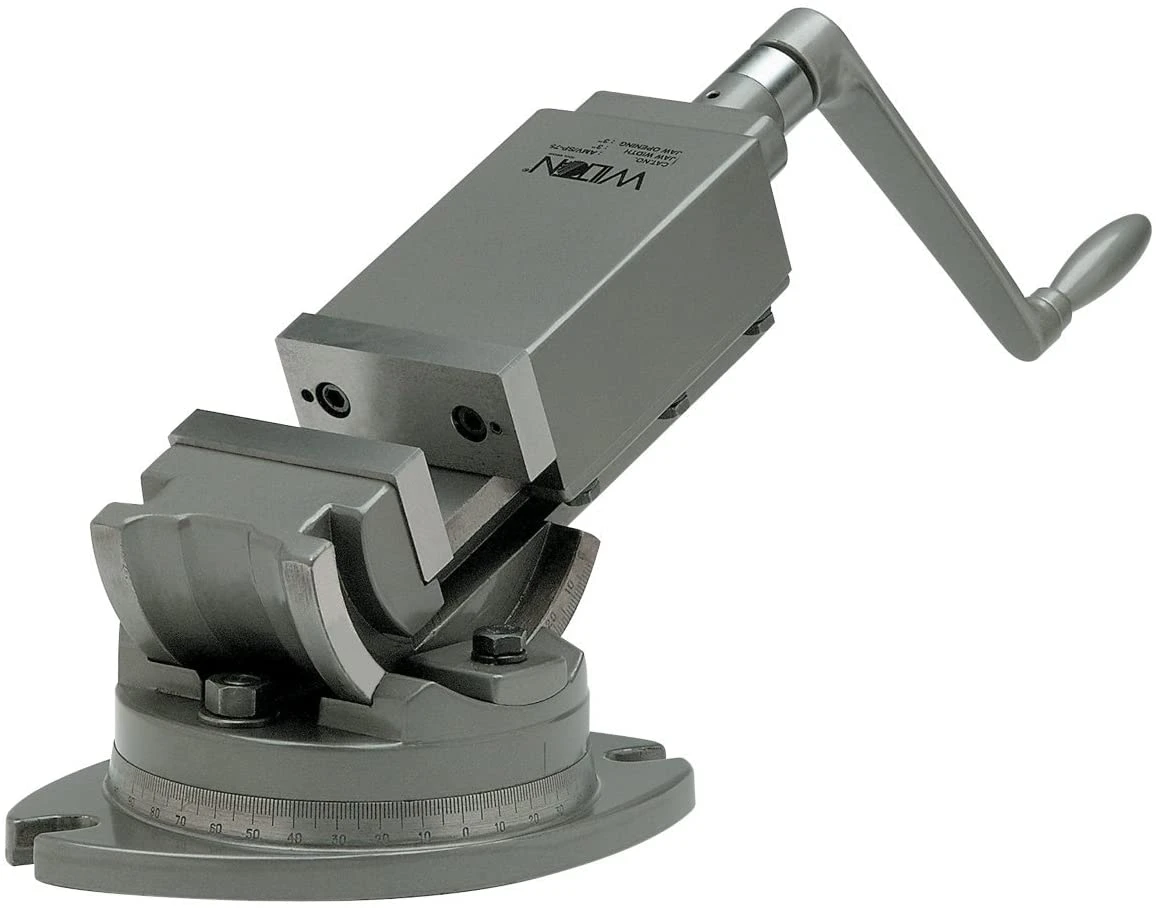

Wilton AMV/SP75 Series 2-Axis Precision Angular Vise w/ 3" Jaw (11704)
Wilton AMV/SP75 Series 2-Axis Precision Angular Vise w/ 3" Jaw (11704) is a premium 2-axis angular vise designed for professionals and serious hobbyists who demand precision and versatility in their machining projects. This vise excels at holding workpieces at any angle for tasks like milling, drilling, grinding, shaping, and jig boring.
KEY FEATURES AND BENEFITS:
Built for Durability and Control:
Constructed from close-grained, high-tensile alloy castings, offering exceptional strength and rigidity.
All ground surfaces are built to close tolerances, ensuring smooth operation and minimal play.
The ergonomically designed handle with a spring-loaded ball attachment provides comfortable and secure clamping force at any angle.
Key Features for Angular Machining:
360-degree swivel base allows for easy positioning of your workpiece for any desired machining angle.
90-degree vertical and 180-degree horizontal indexing ensures precise and repeatable angular positioning.
90-degree tilting range (45 degrees on either side) provides the flexibility to machine work at various compound angles.
Perfectly square base (0-degree squareness) guarantees a stable and level foundation for your work.
Additional Highlights:
3-inch jaw width and 3-inch jaw opening accommodate a wide range of workpiece sizes.
Hardened and ground jaw plates (55 ± 3 HRC hardness) deliver a secure grip on your material.
Relief in the clamp seat ensures full surface contact for a firm lock at any angle.
Bases have keyways and bolt slots to enable secure mounting to your machine table.
Jaw Width: 3 inches
Jaw Opening: 3 inches
Material: Close-grained, high-tensile alloy castings
Base: 360-degree swivel
Indexing: 90-degree vertical, 180-degree horizontal
Tilting Range: 90 degrees (45 degrees on either side)
Hardened Jaw Plates: 55 ± 3 HRC hardness
Step 1: Mount the Wilton AMV/SP75 Vise securely to your machine table using the keyways and bolt slots.
Step 2: Adjust the 360-degree swivel base to the desired angle for your workpiece.
Step 3: Use the 90-degree vertical and 180-degree horizontal indexing to fine-tune the position.
Step 4: Tilt the vise within its 90-degree range to achieve the needed compound angle.
Step 5: Place your workpiece in the vise and tighten the handle to secure it with the hardened and ground jaw plates.
Step 6: Proceed with your machining tasks, confident in the vise's precise and stable hold.
BENEFITS OF USING WILTON AMV/SP75 SERIES 2-AXIS PRECISION ANGULAR VISE W/ 3" JAW (11704):
Achieve precise and repeatable angular positioning for various machining tasks.
Securely hold workpieces at any angle with the robust construction and close tolerances.
Enhance workflow efficiency with easy positioning and fine-tuning adjustments.
360-degree swivel base for versatile positioning.
90-degree vertical and 180-degree horizontal indexing for precise adjustments.
90-degree tilting range for machining at various compound angles.
Perfectly square base for stable and level work.
3-inch jaw width and opening for a wide range of workpiece sizes.
Hardened and ground jaw plates for a secure grip.
Keyways and bolt slots for secure mounting.
Product identification
- Brand: Wilton
- Model / MPN: 11704
