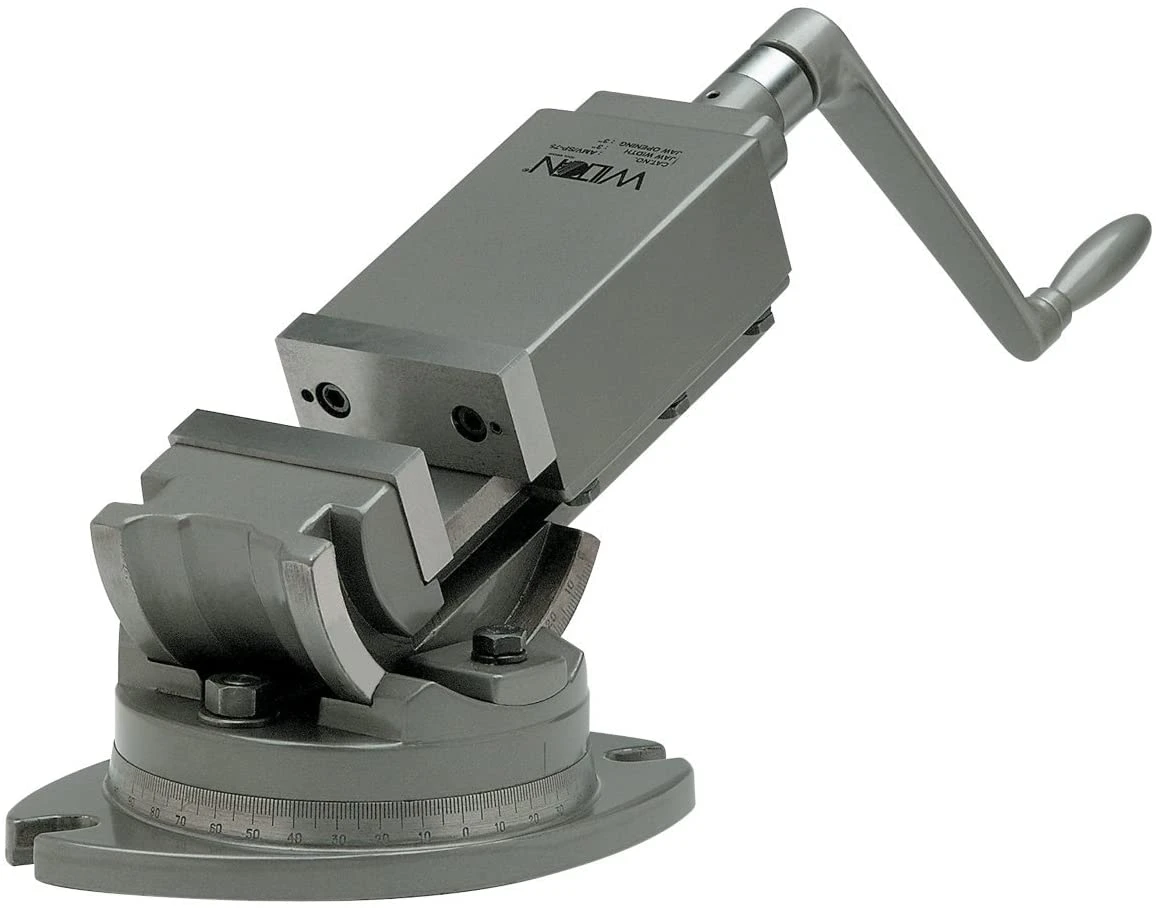

Wilton AMV/SP-50 Model Precision Angular Vise 2" Jaw Width (11703)
Achieve precise machining on angled workpieces with the Wilton AMV/SP-50 Model Precision Angular Vise 2" Jaw Width (11703). This heavy-duty vise is built for durability and control, making it a valuable asset for any metalworking or milling application.
KEY FEATURES AND BENEFITS:
2-axis design for precise positioning at any angle (90° tilt, 360° swivel)
Durable construction with close-grained, high-tensile alloy castings
All ground surfaces for tight tolerances
Ergonomically designed handle with spring-loaded ball attachment for ease of use
Hardened and ground jaw plates (2" width, 1" depth, 3" max opening) with 55 ± 3 HRC hardness for a strong grip
360-degree swivel base
90-degree tilting range
Relief in the clamp seat for full surface contact and secure locking at any angle
Bases have keyways and bolt slots for secure machine mounting
Model Number: AMV/SP-50
Jaw Width: 2 inches
Jaw Opening: 3 inches
Jaw Depth: 1 inch
Swivel Base: 360-degree
Hardness: 55 ± 3 HRC
Material: Close-grained, high-tensile alloy castings
Handle: Ergonomically designed all-steel with spring-loaded ball attachment
Securely mount the vise on your machine table or workstation using the keyways and bolt slots.
Adjust the 360-degree swivel base and 90-degree tilt to position your workpiece at the desired angle.
Use the all-steel handle to tighten the jaws and firmly clamp your workpiece in place.
Ensure all adjustments are securely locked before beginning your work.
After completing your task, carefully release the jaws and remove your workpiece.
BENEFITS OF USING Wilton AMV/SP-50 Model Precision Angular Vise 2" Jaw Width (11703):
Precise positioning for machining at any angle
Durable construction for long-lasting performance
Tight tolerances for reliable clamping
Ergonomic handle for comfortable operation
Strong grip on workpieces for accurate results
Versatile for various metalworking and milling applications
Close-grained, high-tensile alloy castings
Relief in the clamp seat
Keyways and bolt slots
Product identification
- Brand: Wilton
- Model / MPN: 11703
