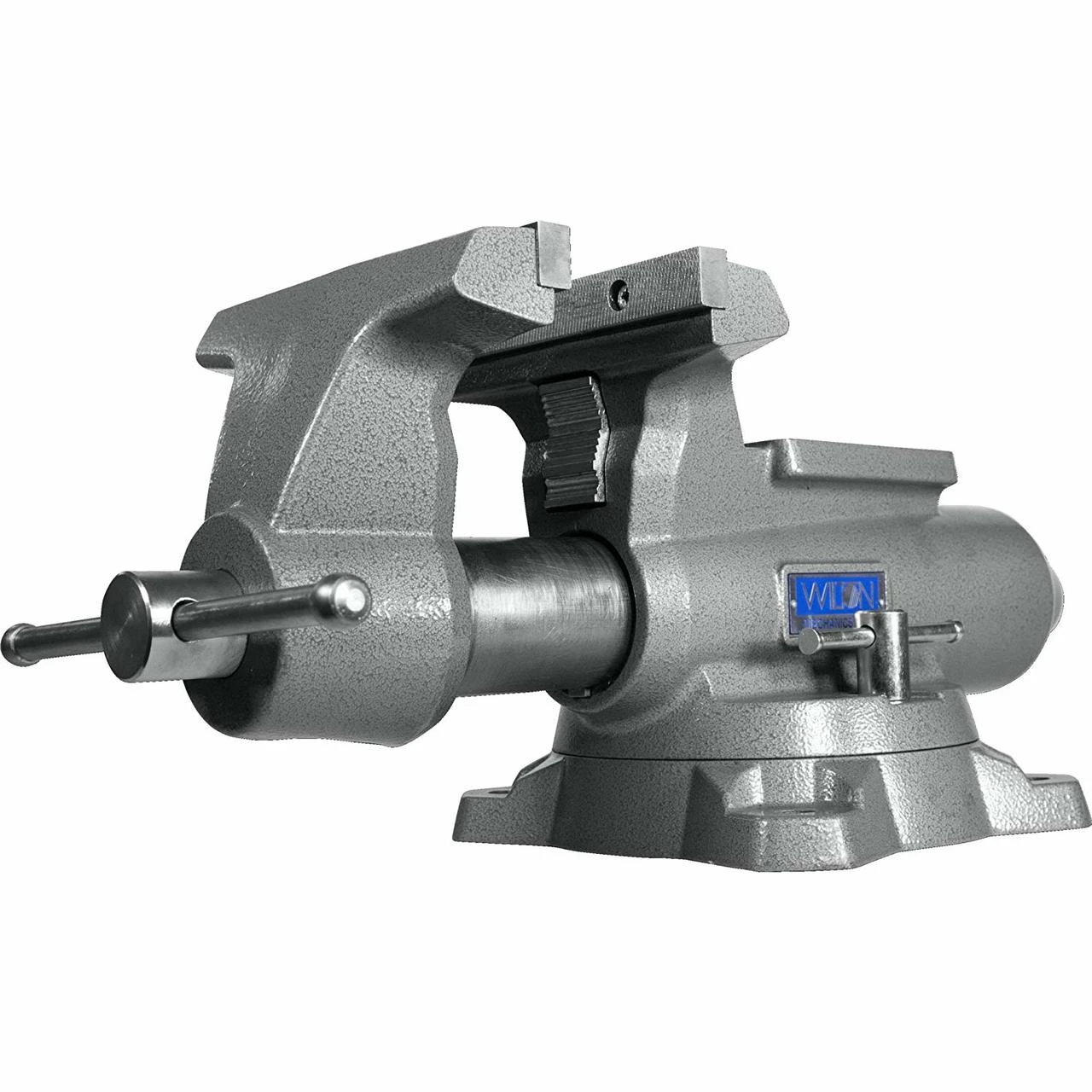

Wilton 28813 880M 8 Inch Mechanics Pro Vise
Wilton 28813, model 880M, is the eight-inch-jaw Mechanics Pro option with an 8-1/2-inch maximum opening. Its enclosed spindle, slide bar and thrust bearing support the listed mechanism layout; the larger dimensions should still be matched to the workpiece and bench space.
Specifications and included details
- 8-inch jaw width and 8-1/2-inch maximum opening.
- Ductile iron construction.

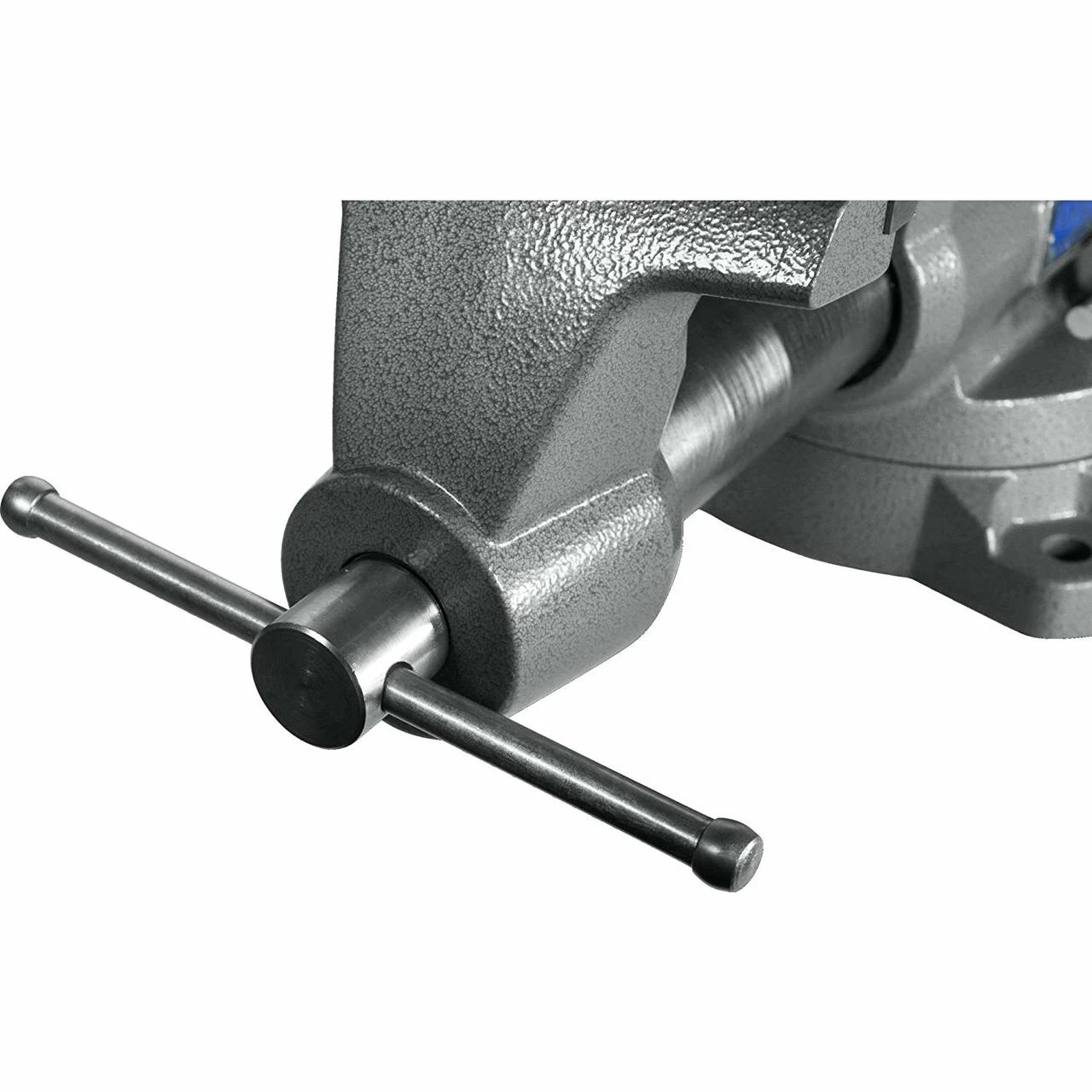

- Enclosed spindle, precision-machined slide bar and needle roller thrust bearing.

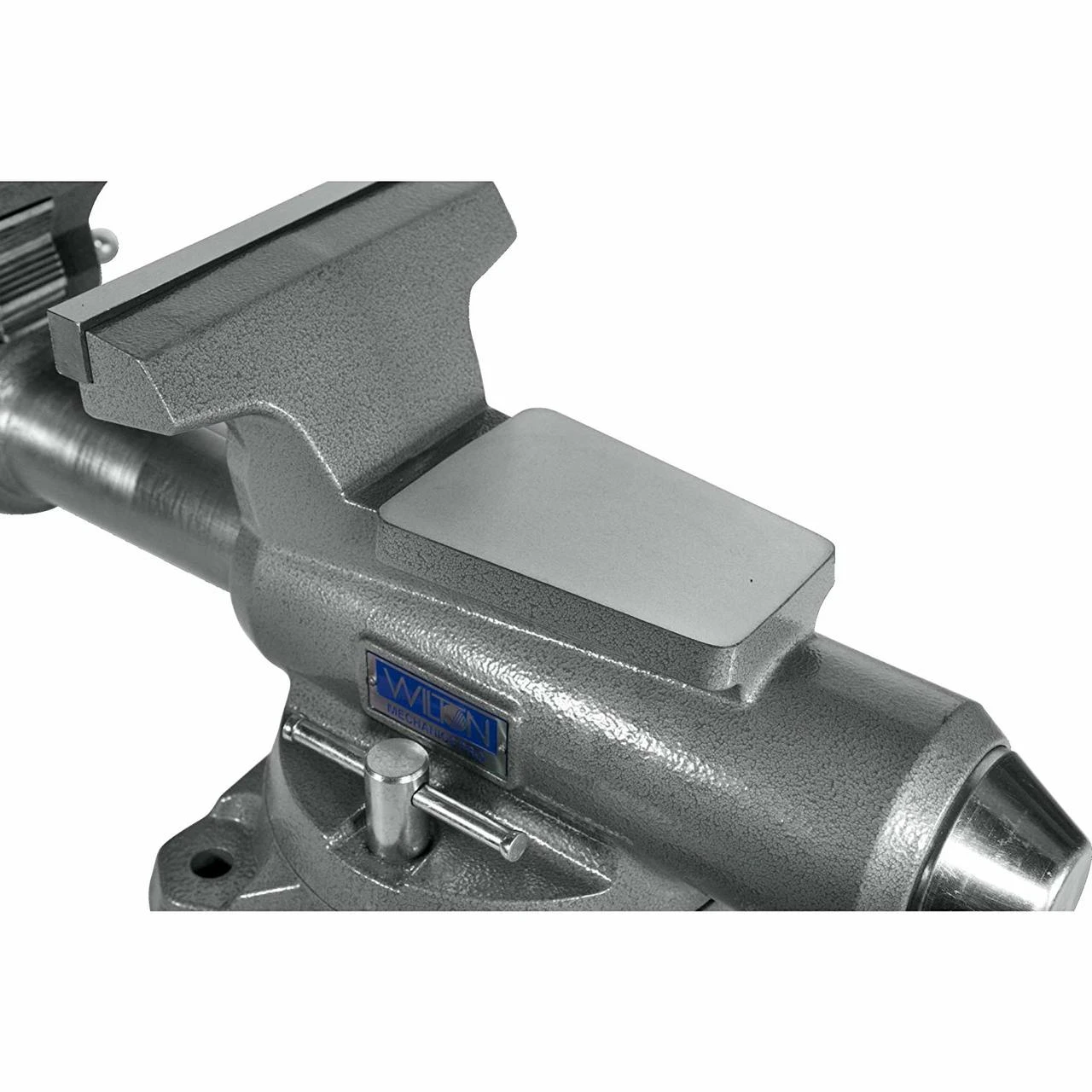

- 360-degree swivel base with double lockdowns and anvil surface.
Before ordering
Confirm mounting footprint, throat reach and gripping surface requirements. No throat depth, pipe-jaw range or numerical force rating is supplied for this model. Do not borrow those specifications from another eight-inch Wilton vise with a similar opening.
Product questions and answers
Is this the same construction as the 648UHD?
This listing specifies ductile iron construction for the 880M. The 648UHD lists a gray cast iron body and ductile iron base; matching jaw size does not establish identical construction.
Does 8.5 inches describe throat depth?
No. It is maximum jaw opening. Throat depth is not provided here.

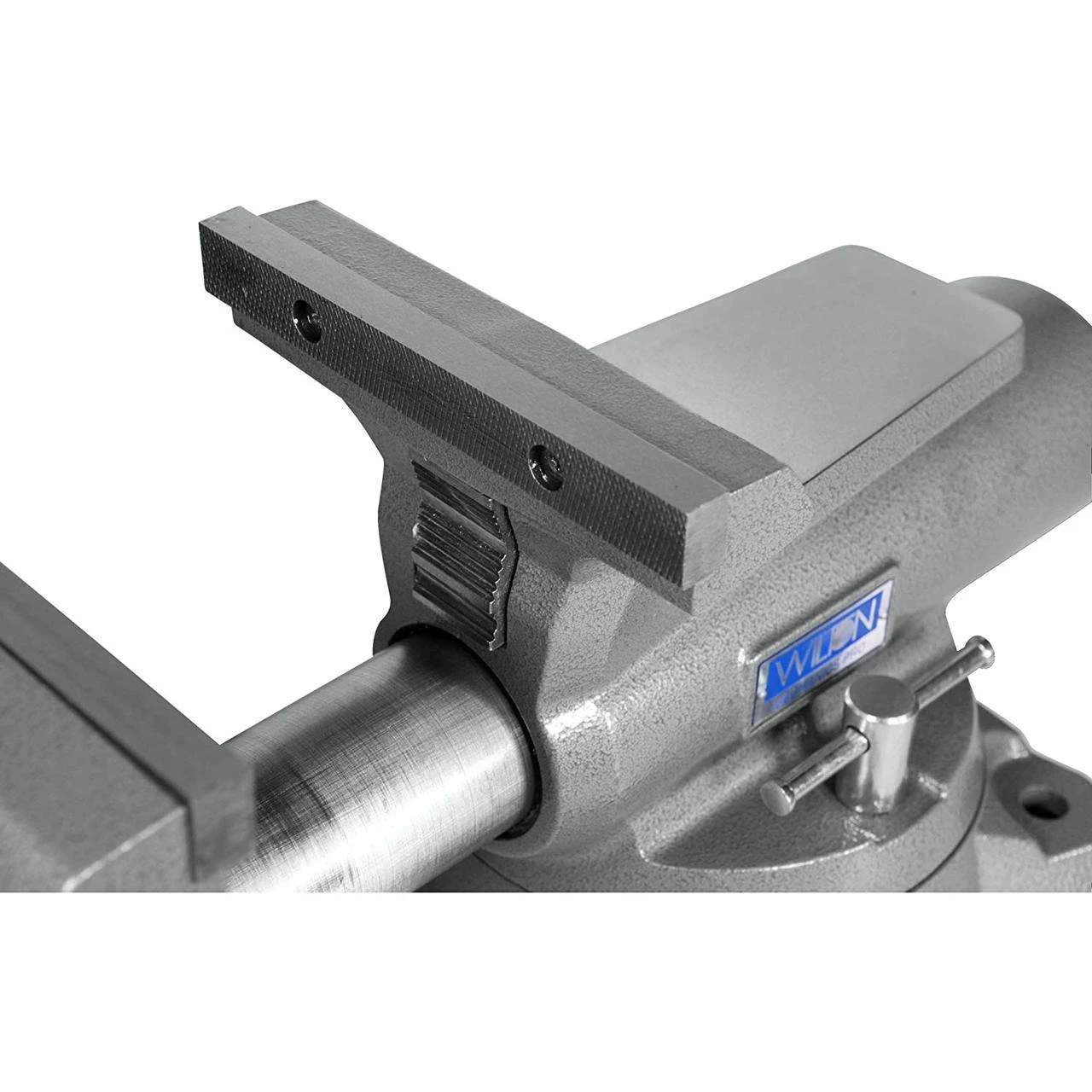

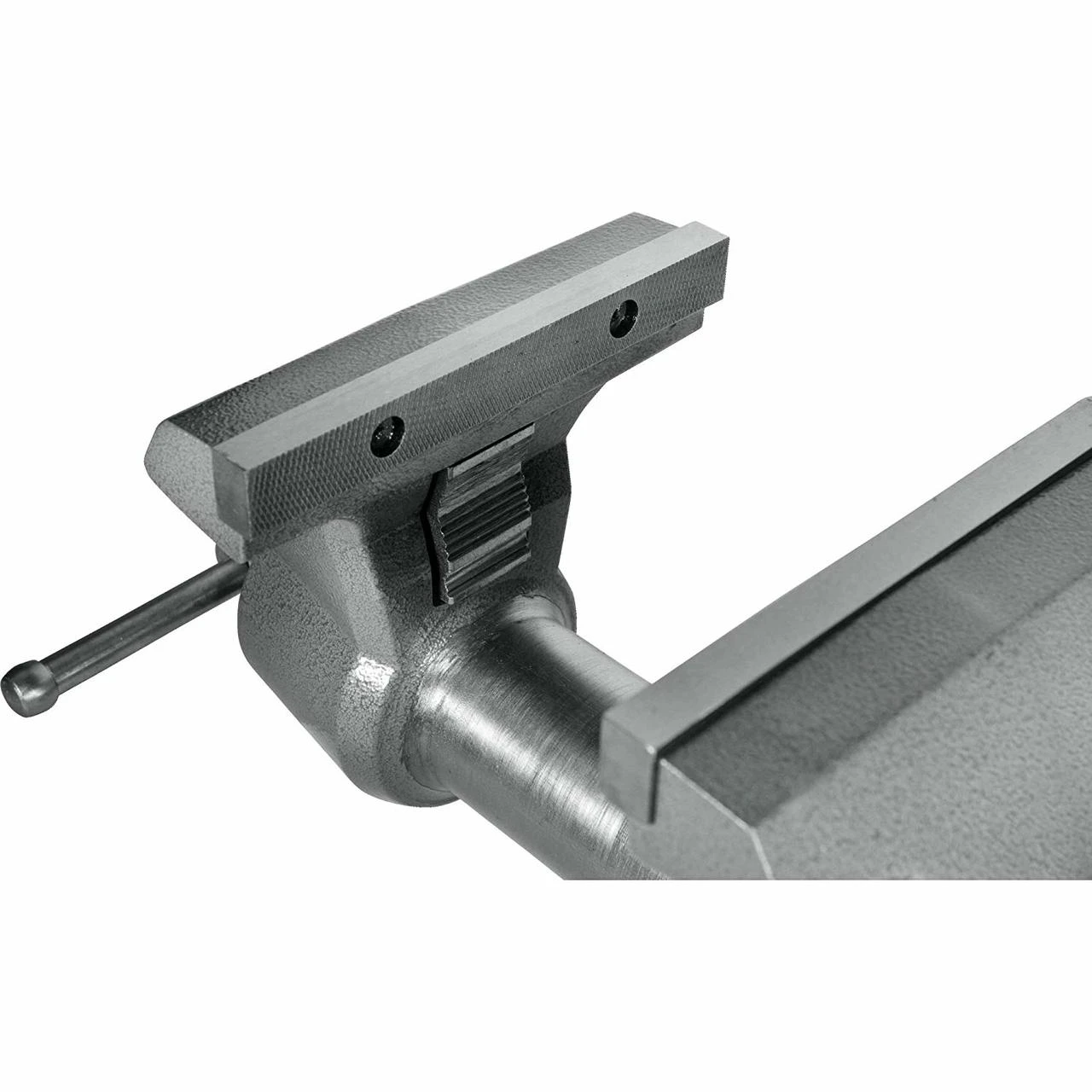

Can serrated jaws be assumed safe for every delicate surface?
No. Assess jaw contact and appropriate protection for the actual workpiece; the vise listing does not promise a mark-free finish.
