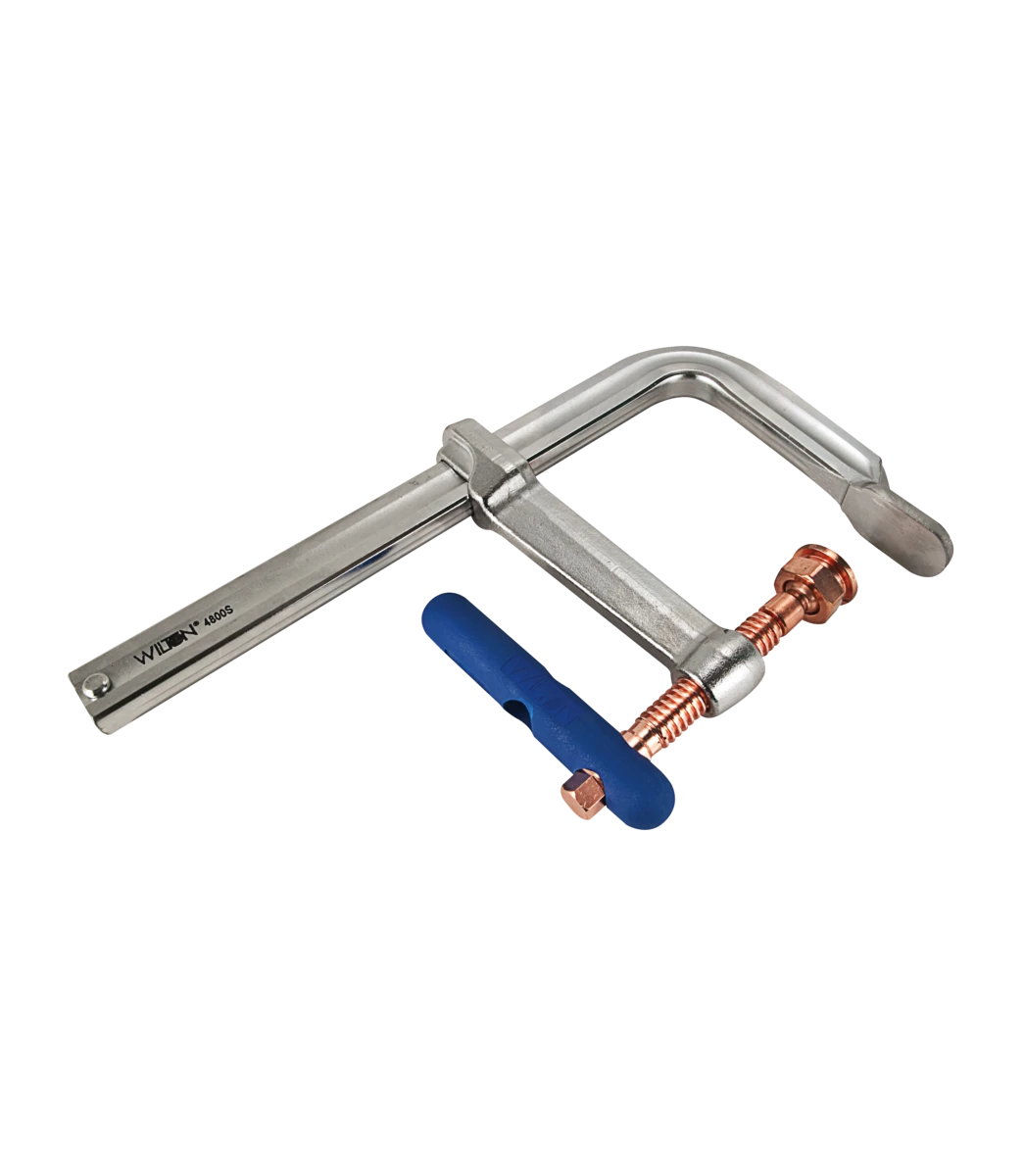

Wilton 4800S-36C Copper F-Clamp w/ 36" Opening Capacity (86530)
The Wilton 4800S-36C Heavy-Duty F-Clamp w/ 36" Opening Capacity (86530) is a professional-grade clamp designed for heavy-duty clamping tasks. Part of the top-of-the-line Spark-Duty™ series, this clamp features a copper-plated spindle that offers superior resistance against welding spatter, a common issue in metalworking applications.
KEY FEATURES AND BENEFITS:
Spark-Duty™ Design: Copper-plated spindle resists welding spatter for extended clamp life.
Heavy-Duty Clamping: Delivers 4,880 pounds of clamping force for demanding applications.
Drop-Forged Arm: Minimizes flex for reliable clamping under heavy loads.
Ergonomic Wilton-Grip®: Anti-fatigue handle design provides comfort during extended use.
Quick-Twist Pads: Simple pad replacement system (V-groove pad included, serrated pads sold separately).
V-Groove Pad: Enables secure clamping of round objects up to 14 inches in diameter.
Clamping Capacity: 36 inches
Throat Depth: 7 inches
Clamping Force: 4,880 pounds
Nominal Rail Size: 1-9/16 x 25/32 inches
Spindle Diameter: 7/8 inch
1. Position the clamp over the material to be clamped.
2. Adjust the clamp opening to fit the material securely.
3. Tighten the clamp using the ergonomic Wilton-Grip® handle until the desired clamping force is achieved.
4. For round objects, use the V-groove pad for secure clamping.
BENEFITS OF USING Wilton 4800S-36C Heavy-Duty F-Clamp w/ 36" Opening Capacity (86530):
Superior Durability: Copper-plated spindle and drop-forged arm for long-lasting performance.
Powerful Clamping Force: 4,880 pounds of clamping force for demanding applications.
Ergonomic Design: Wilton-Grip® handle for comfort during extended use.
Versatile: Quick-Twist pads for easy pad replacement and secure clamping of round objects.
Product identification
- Brand: Wilton
- Model / MPN: 86530
