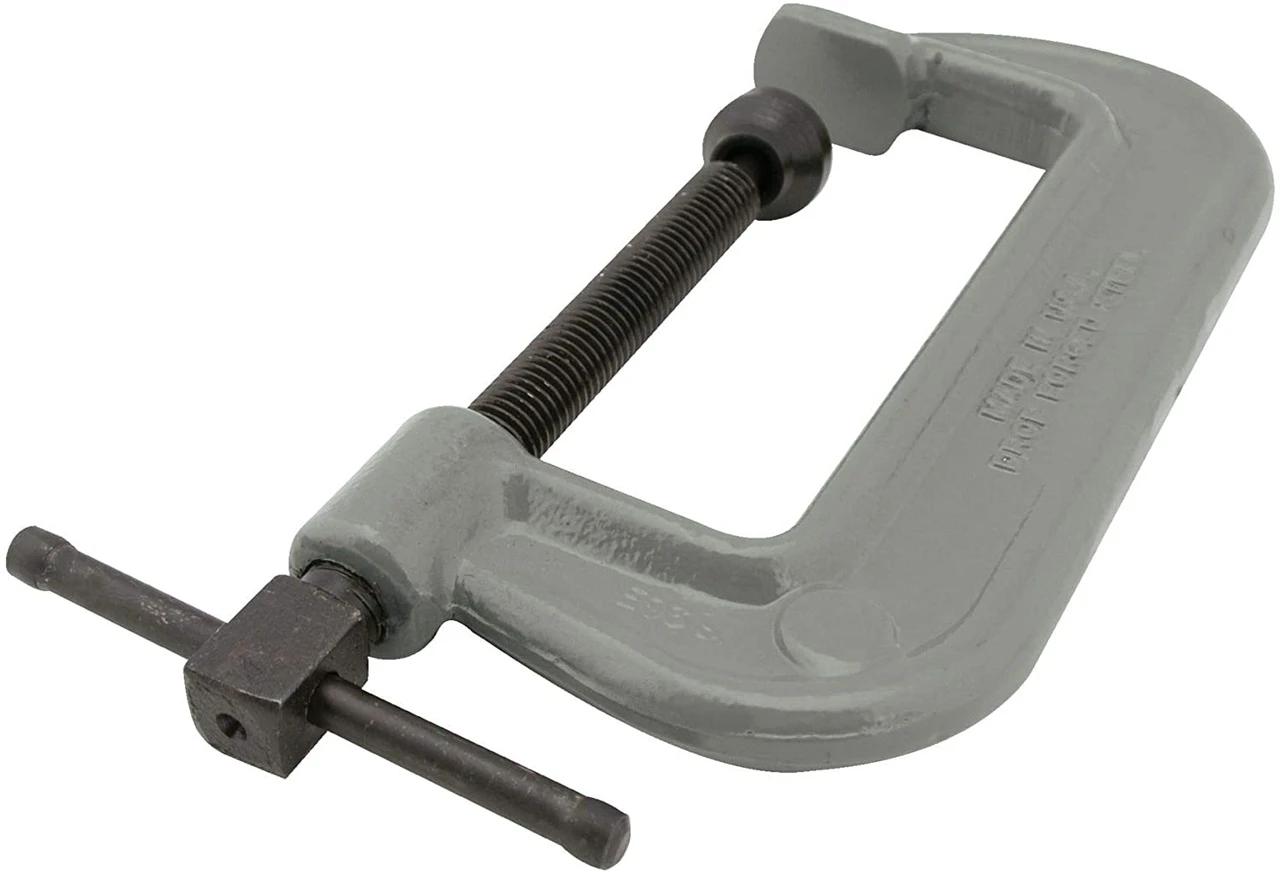

Wilton 110 Model Forged C Clamp 6-10" Opening Capacity (14184)
The Wilton 110 Model Forged C Clamp 6-10" Opening Capacity (14184) is a professional-grade clamping tool designed for heavy-duty industrial and construction applications. This C-clamp delivers exceptional strength and durability thanks to its superior build quality.
KEY FEATURES AND BENEFITS:
Superior Clamping Force: Apply up to 13,750 lbs of clamping pressure for the toughest jobs. This powerful clamping force ensures your materials are held securely in place during various tasks.
Large Jaw Opening: The clamp boasts a jaw opening capacity of 6 inches to 10 inches, providing versatility for clamping objects of various sizes.
Durable Spindle: The forged square head spindle with rolled threads ensures smooth operation and resists wear and tear under heavy use.
Corrosion Resistance: The black oxide finish provides excellent corrosion resistance, preventing rust and ensuring the clamp maintains its functionality over time.
Protective Perma-Pads: Standard Perma-Pads (also black oxide coated) are included to protect your work surfaces from scratches and marring during clamping.
Easy Adjustments: The screw mechanism allows for smooth and easy adjustments to the desired clamping pressure.
Part Number: 14184
Maximum Clamping Pressure: 13,750 lbs
Jaw Opening Capacity: 6 inches to 10 inches
Spindle Diameter: ¾ inch
Throat Depth: 2 ¾ inches
Size: 10 inches (possibly refers to the maximum jaw opening)
Overall Dimensions: 1.7" x 6.6" x 16.9" (Height x Width x Length)
Model Number: 110
1. Position the clamp over the workpiece.
2. Adjust the spindle to the desired opening.
3. Tighten the spindle using a wrench for secure clamping.
4. Ensure the clamp is securely holding the workpiece before proceeding with your task.
BENEFITS OF USING THE WILTON 110 MODEL FORGED C CLAMP 6-10" OPENING CAPACITY:
Strength: Capable of handling significant pressure with a clamping force of up to 13,750 lbs.
Durability: Forged steel frame and black oxide finish for long-lasting use.
Efficiency: Full-length machined screw and rolled thread spindle for smooth and easy operation.
Protection: Black oxide Perma-Pads minimize wear on both the clamp and the workpiece.
Product identification
- Brand: Wilton
- Model / MPN: 14184
