Wera 05006100001 VDE 0.4 x 2.5mm Driver

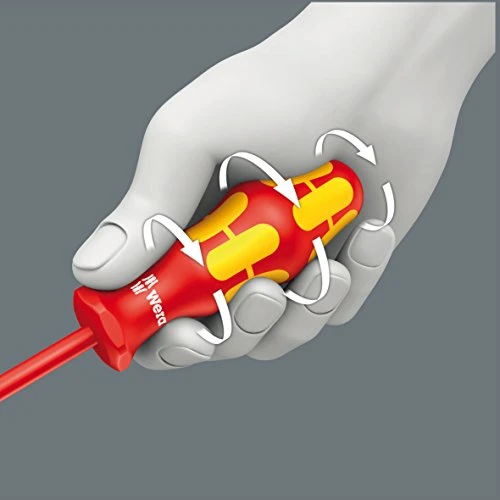

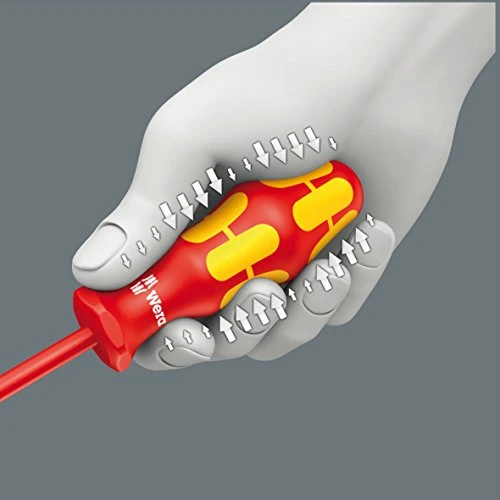

Wera 160 i VDE slotted screwdriver 05006100001 has a listed 0.4mm-thick, 2.5mm-wide tip and an 80mm blade. Kraftform Plus hard and soft handle zones and IEC 60900 testing are described. The details distinguish a 10,000V test voltage from a stated 1,000V electrical application rating.
Specifications and included details

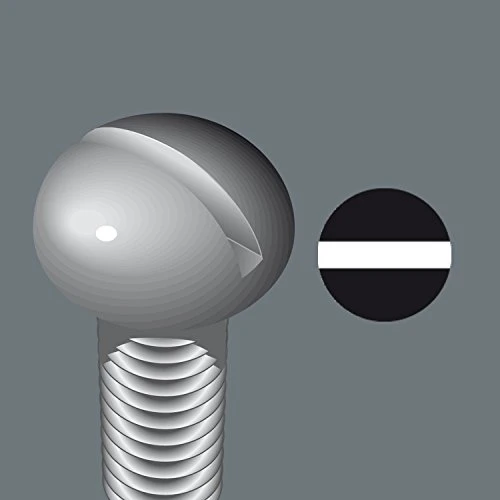

- Slotted tip 0.4mm thick x 2.5mm wide; blade length 80mm.
- VDE-insulated format with IEC 60900 testing described.
- Listed application rating 1,000V, separate from 10,000V test voltage.
Before ordering
Verify actual markings, insulation condition and electrical safe-working procedures. The test voltage is not a working-voltage rating, and insulation does not remove arc-flash hazards or authorize live work. The rounded inch comparisons are not exact metric equivalents.
Product questions and answers
Can the 10,000V test figure be used as the working rating?
No. The described application rating is 1,000V; test and working voltages are distinct.
Is 0.4mm the tip width?
No. It is thickness; the width is 2.5mm.
Is 80mm the complete tool length?
No. It is the blade length.
