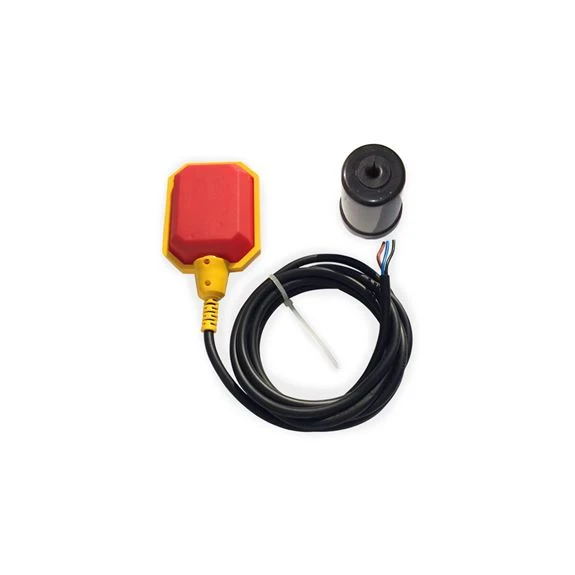

Water Boss 10' Wire Lead Float Switch (SA-2359-3)
The Water Boss 10' Wire Lead Float Switch (SA-2359-3) provides dependable control of water levels for both emptying and filling applications. This versatile switch includes 3 wire leads with SPDT (Single Pole Double Throw) functionality. Featuring a 10-foot cable and an adjustable tether, it accommodates a wide array of installation needs, helping to prevent potential water damage with minimal oversight once installed. The Water Boss float switch utilizes a Honeywell micro switch, known for its accuracy and long operational life, and is rated for use with both low-voltage (12-24VDC) and standard AC power (120-240VAC).
KEY FEATURES AND BENEFITS:
Dual Functionality: Effectively controls water levels for both emptying (pump down) and filling (pump up) applications.
Versatile Wiring: Equipped with 3 wire leads and SPDT contacts for flexible integration with various control systems.
Adjustable Reach: The 10-foot cable and adjustable tether allow for customized activation levels to suit different tank sizes and requirements.
Reliable Switching: Controlled by a Honeywell micro switch, ensuring accurate and consistent on/off operation.
Broad Voltage Compatibility: Rated for use with both 12-24VDC and 120-240VAC power sources, offering flexibility in different setups.
Durable Construction: The corrosion-resistant polypropylene casing ensures longevity in demanding water and wastewater environments.
Switch Type: Tethered Float Switch, SPDT
Cable Length: 10 Feet
Voltage Rating: 12-24VDC, 120-240VAC
Operating Temperature: 32°F to 140°F (0°C to 60°C)
Casing Material: Polypropylene
Dimensions: 6.5 inches (Length) x 1.5 inches (Height) x 3.25 inches (Width)
Approvals: CE, IEC
Determine the Desired Activation Levels: Decide at what high water level you want the pump to turn on (for emptying) or turn off (for filling), and at what low water level you want the pump to turn off (for emptying) or turn on (for filling).
Adjust the Tether: Use the adjustable tether to set the distance between the float switch and the point where it is anchored. A longer tether will result in a greater difference between the on and off levels.
Secure the Float Switch: Attach the float switch securely using the cable or by hanging it freely, ensuring it can move vertically without obstruction. Consider using a weight (not always included or potable water rated, so verify if needed for your application) to help stabilize the switch.
Wire the Switch: Connect the three wire leads (Common, Normally Open, Normally Closed) to your pump and power source according to your desired operation (emptying or filling) and the wiring diagram of your pump and control system. Ensure all electrical connections are properly insulated and safe.
Test the Operation: Carefully fill and drain the tank or sump to observe the switch's activation and deactivation points, ensuring the pump starts and stops at the desired water levels. Make any necessary adjustments to the tether length or mounting position.
BENEFITS OF USING THE WATER BOSS 10' WIRE LEAD FLOAT SWITCH (SA-2359-3):
Prevents Overflow and Dry Running: Automatically controls pump operation to prevent tanks from overflowing or pumps from running dry, safeguarding your property and equipment.
Automated Operation: Enables unattended water level management, reducing the need for manual intervention.
Versatile Application: Suitable for a wide range of water transfer and level control tasks in both sump and septic systems, as well as other tanks and pumps.
Increased System Lifespan: By ensuring pumps operate only when needed, the switch helps to extend the lifespan of your pumping system.
Reliable Performance: The integration of a Honeywell micro switch guarantees consistent and dependable switching action.
Long-Lasting Durability: The robust, corrosion-resistant construction ensures reliable operation in demanding environments.
Easy Installation and Adjustment: The adjustable tether allows for simple customization of activation levels to meet specific needs.
Wide Temperature Range: Operates reliably in temperatures ranging from 32 to 140°F (0 to 60°C).
Suitable for Various Liquids: Designed to function effectively in light to medium amounts of suspended solids, including groundwater and sewage water.
Product identification
- Brand: Water Boss
- Model / MPN: SA-2359-3
