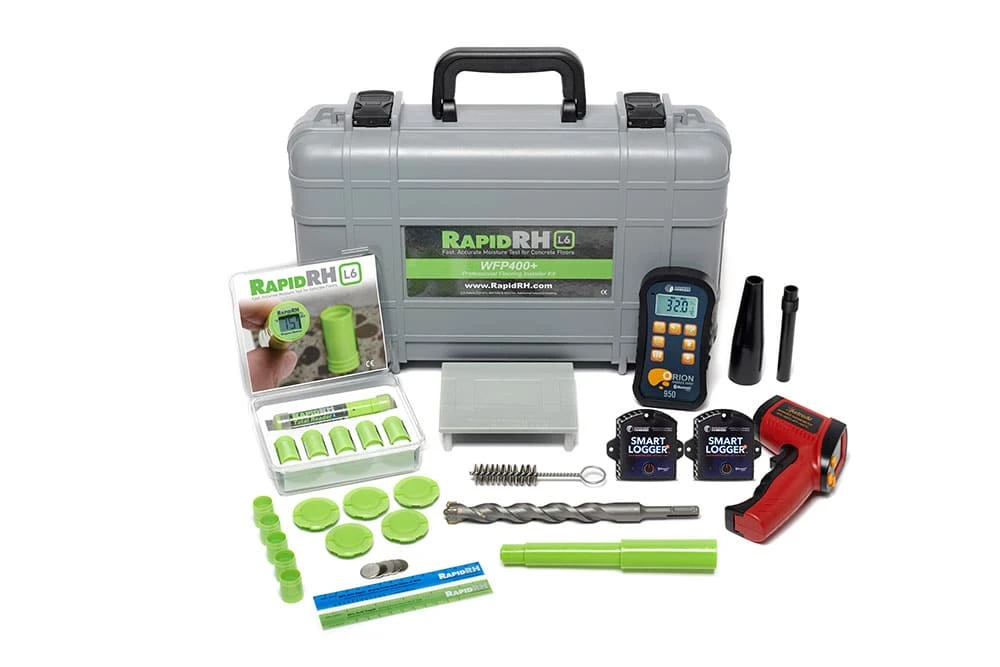

Wagner Meters WFP400+ RH L6 Flooring Installer Kit °F (880-R0WFP-402)
The Wagner Meters WFP400+ RH L6 Flooring Installer Kit °F (880-R0WFP-402) offers a comprehensive and reliable solution for flooring professionals requiring accurate moisture testing of concrete, wood, and other wood-based building materials. This kit combines the power of pinless wood moisture measurement with advanced in-situ concrete relative humidity (RH) testing, ensuring installers have the necessary tools to assess moisture conditions thoroughly and prevent potential flooring failures. The inclusion of data logging capabilities and a user-friendly mobile application streamlines the process of data collection, analysis, and reporting, making it easier to comply with industry standards and maintain project documentation.
KEY FEATURES AND BENEFITS:
Accurate Measurements: Provides accurate relative humidity (RH) and temperature readings in concrete using Rapid RH® L6 Smart Sensors, complying with ASTM F2170 standards.
Non-Invasive Testing: Enables non-invasive moisture measurement in wood and other materials with the Orion® 950 Dual Depth Pinless Moisture Meter.
Wireless Data Collection: Offers wireless data collection and reporting through Bluetooth connectivity with the Total Reader® and DataMaster™ L6 App.
Ambient Monitoring: Includes Smart Logger™ for automated ambient RH and temperature recording on the job site.
Improved Sensor Protection: Features improved protective caps for concrete test holes, ensuring a secure seal against contaminants.
Convenient Storage: Provides a rugged carrying case for convenient storage and transportation of all components.
Orion 950 Dual Depth Pinless Moisture Meter:
Measurement Type: Non-invasive, electromagnetic scanning
Depth of Measurement: Up to 1.25 inches
Connectivity: Bluetooth
Features: Protective rubber boot, on-demand calibrator
Rapid RH L6 Smart Sensors:
Sensor Type: Customized SHT35 humidity sensor from Sensirion
Accuracy: ±2% at 50% and 90% RH
Temperature Unit: Fahrenheit
Compliance: ASTM F2170
Data Storage: Up to 300 days
Number of Devices Supported: Up to 300
Connectivity: Bluetooth 4.0
Infrared (IR) Thermometer:
Function: Measures surface temperature
Total Reader: CR1/3N Battery (included)
For Concrete Moisture Testing (using Rapid RH L6 System):
Drill Test Holes: Using the included ¾” SDS masonry drill bit, drill test holes in the concrete slab to the required depth as specified by ASTM F2170.
Clean the Holes: Use the wire cleaning brush and vacuum attachment to thoroughly clean any debris from the drilled holes.
Insert Sleeve Extensions: Insert the sleeve extensions into the cleaned test holes.
Place Smart Sensors: Insert the Rapid RH L6 Smart Sensors into the sleeve extensions.
Cover the Holes: Cover the test holes with the protective caps, ensuring a tight seal with the butyl rubber gasket. Stainless steel covers can be used for added protection.
Take Readings: Use the Total Reader with Bluetooth to wirelessly connect to the Smart Sensors and take RH and temperature readings at the appropriate time intervals as per ASTM F2170.
Data Management: Utilize the DataMaster L6 App to record, store, and report the collected data.
For Wood Moisture Testing (using Orion 950 Moisture Meter):
Power On: Turn on the Orion 950 moisture meter.
Select Wood Species: If necessary, select the appropriate wood species setting on the meter.
Place on Surface: Place the meter flat on the surface of the wood being tested, ensuring good contact.
Read Measurement: Read the moisture content displayed on the meter.
Record Data: Manually record the readings or connect the meter via Bluetooth to a compatible device for data logging.
For Ambient Monitoring (using Smart Logger):
Place Smart Logger: Position the Smart Logger device in the area where ambient conditions need to be monitored.
Program Reading Intervals: Use the Smart Logger app to set the desired reading intervals.
Collect Data: The Smart Logger will automatically record ambient RH and temperature data according to the set intervals.
Download Data: Use the Smart Logger app to download the recorded data to a Bluetooth-enabled mobile device.
BENEFITS OF USING THE WAGNER METERS WFP400+ RH L6 FLOORING INSTALLER KIT °F (880-R0WFP-402)
Ensures Accurate Moisture Assessment: Provides reliable and precise measurements of moisture in both concrete and wood, crucial for preventing flooring problems.
Saves Time and Labor: The Rapid RH L6 system allows for quick and efficient concrete moisture testing, reducing delays in the installation process. The pinless meter also speeds up wood moisture checks.
Reduces Risk of Flooring Failures: By accurately determining moisture content, installers can avoid issues like warping, buckling, and mold growth, protecting their reputation and preventing costly callbacks.
Facilitates Compliance with Standards: The kit helps users adhere to ASTM F2170 standards for concrete moisture testing, ensuring professional and reliable results.
Improves Data Management: The integrated apps streamline data collection, organization, and reporting, simplifying documentation and analysis.
Offers Versatility: The ability to test both concrete and wood makes this a comprehensive kit for a wide range of flooring projects.
Rapid RH® L6 Smart Sensors: Deliver accurate in-situ RH and temperature readings from within the concrete slab.
Orion® 950 Pinless Moisture Meter: Enables non-destructive moisture measurement in wood.
Total Reader® with Bluetooth: Facilitates wireless data retrieval from Smart Sensors.
DataMaster™ L6 App: Allows for mobile data collection, reporting, and job site mapping.
Smart Logger™: Automates the recording of ambient RH and temperature data.
Improved Protective Caps: Provide a secure and sealed environment for concrete testing.
NIST-Traceable Calibration: Ensures the accuracy and reliability of the Smart Sensors.
Rugged Carrying Case: Offers protection and portability for the entire kit.
DataGrabber with Bluetooth: Enables automated logging of concrete RH and temperature within the sensor.
Product identification
- Brand: Wagner Meters
- Model / MPN: 880-R0WFP-402
