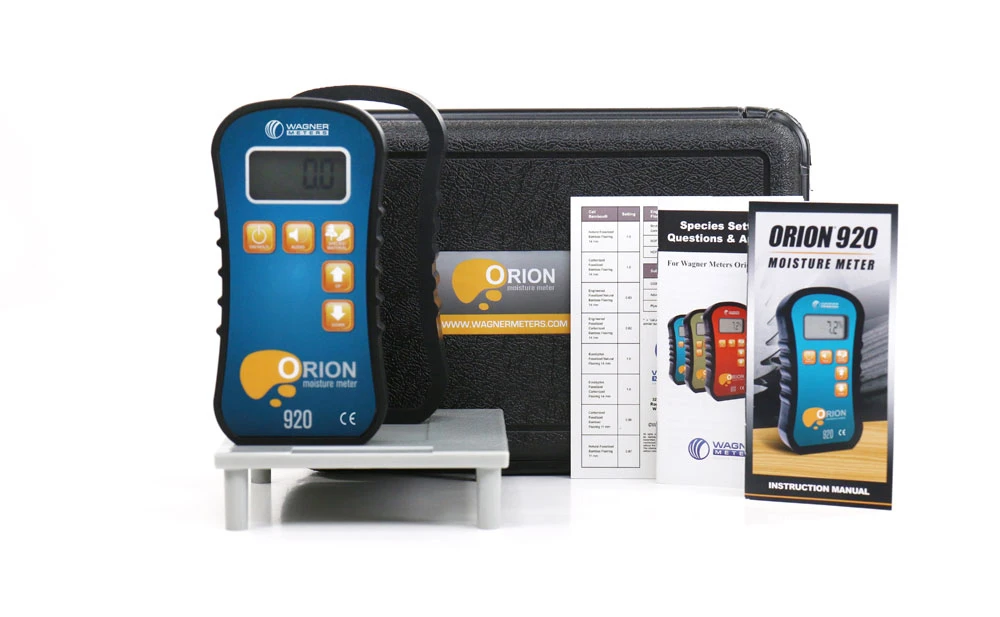

Wagner Meters Orion 920 Kit w/ On-Demand Calibrator (890-00920-001)
KEY FEATURES AND BENEFITS:
Shallow Depth Measurement: Precisely measures moisture content in wood from the surface down to 0.25 inches (6.4mm), ideal for applications requiring non-penetrating measurement.
IntelliSense Technology: Ensures superior accuracy and reliable performance for consistent moisture readings.
On-Demand Calibrator: Allows for quick and easy calibration in the field, maintaining accuracy without the need for factory recalibration.
Fast Selection Species Settings: Simplifies the process of adjusting the meter for a wide variety of softwood and hardwood species, enhancing accuracy for different wood types.
Non-Damaging Pinless Sensor: Employs electromagnetic wave technology to measure moisture without leaving marks or damaging the wood.
Relative Measurement Mode: Enables users to take comparative moisture readings in non-wood materials such as drywall and engineered wood flooring.
Temperature Stability: Designed to be largely unaffected by the temperature of the wood or the environment, ensuring reliable readings in various conditions.
Hold Function: Allows users to freeze the current moisture reading on the display for easy recording.
Programmable Alarm: Features a user-configurable audible alarm that alerts the user when a high moisture content level is detected.
Rugged Design: Includes a protective rubber boot that enhances the meter's durability, making it suitable for demanding job site environments.
Dimensions (with boot):
Length: 5.75 inches (146mm)
Width: 3.0 inches (76mm)
Thickness: 1.0 inches (25mm)
Weight (with boot): 7.2 oz. (204g)
Scanning Area: 2.0 inches (50mm) x 2.5 inches (63mm)
Power: 9-volt battery (Alkaline, Lithium non-rechargeable, or NiMH rechargeable recommended)
Auto Power Shut-Down: 60 seconds
Measurement Ranges:
MC for wood: 4.0% to 32.0%
Relative Measurement Scale: 0-100
Depth of Measurement: 0.25 inches (6.4mm)
Specific Gravity Range for Wood Species: 0.20-1.0 SG
Storage Temperature and Humidity: +50˚F to +90˚F (+10˚C to +32˚C), Max 95% RH, Non-condensing
Operating Temperature Range: +32˚F to +110˚F (+0˚C to +43˚C)
Compatibility: Suitable for measuring a wide range of softwood and hardwood species, as well as some non-solid wood products like plywood, OSB, and MDF.
Install Battery: Open the battery compartment and insert a 9-volt battery, ensuring correct polarity.
Power On: Press the ON/HOLD button to turn on the meter.
Select Species: Use the up and down arrow buttons to select the appropriate wood species setting from the species settings booklet or the common flooring materials reference card.
Calibrate (If Needed): Place the On-Demand Calibrator on a stable surface and then place the scanning area of the Orion 920 onto it. Press the ON/HOLD button to automatically calibrate the meter.
Take Measurement: Place the scanning area of the meter flat against the surface of the wood you want to measure, ensuring good contact.
Read Measurement: The moisture content reading will be displayed on the screen.
Hold Reading (Optional): Press the ON/HOLD button to freeze the reading on the display.
Relative Measurement (Optional): Consult the instruction manual for the specific procedure to use the relative measurement mode.
Power Off: The meter will automatically shut off after 60 seconds of inactivity, or you can turn it off manually by pressing and holding the ON/HOLD button.
BENEFITS OF USING THE WAGNER METERS ORION 920 KIT W/ ON-DEMAND CALIBRATOR (890-00920-001):
Non-Damaging Measurement: Preserves the integrity of the material being tested, crucial for finished surfaces.
On-Demand Calibration: Maintains accuracy over time directly on the job site, reducing downtime.
Quick Species Selection: Ensures readings are tailored to the specific material for precise results.
Temperature Stability: Minimizes the need for manual adjustments, improving efficiency.
Programmable Alarm: Alerts users to potentially problematic moisture levels, saving time and preventing issues.
Shallow Scan Technology: Measures moisture content at a depth of 0.25 inches.
Intuitive Species Selection: Easy-to-use buttons for quick adjustments.
Field Calibration: On-Demand Calibrator for immediate calibration.
Electromagnetic Sensor: Non-invasive moisture measurement without pins.
Temperature Compensation: Reduces the impact of temperature on readings.
Data Hold Functionality: Freezes readings for convenient recording.
Audible Moisture Alert: Programmable alarm for high moisture detection.
Durable Protective Boot: Enhances resistance to impacts and drops.
Versatile Material Compatibility: Measures various softwood, hardwood, and some non-solid wood types.
Product identification
- Brand: Wagner Meters
- Model / MPN: 890-00920-001
