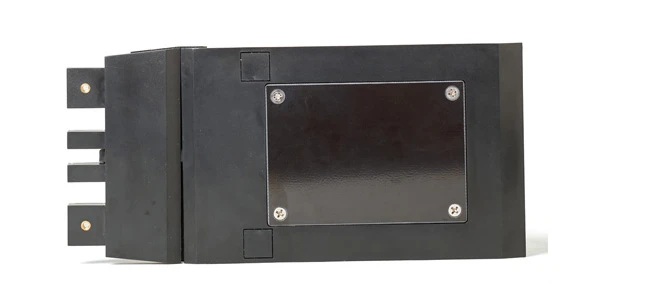

Wagner Meters 40-Inch Spare Stack Probe Head (860-72202-001)
KEY FEATURES AND BENEFITS:
Direct Replacement: Specifically designed as a spare for the Wagner L722 40-inch Lumber Stack Probe, ensuring a perfect fit and function.
Minimizes Downtime: Enables users to quickly replace a damaged probe head, allowing for continuous operation of the moisture meter while the original head is being serviced.
Easy Field Servicing: The probe head is detachable from the probe extrusion, making the replacement process straightforward and manageable in the field.
Cost-Effective Solution: Investing in a spare probe head is a proactive way to avoid costly downtime and reduce overall maintenance expenses.
Maintains Productivity: Ensures that your moisture measurement tasks can continue without significant delays, keeping your workflow efficient.
Product Name: Spare Stack Probe Head-40"
Compatibility: Wagner L722 40-inch Lumber Stack Probe, Wagner L622 Digital Recording Moisture Meter
Probe Reach (with full assembly): 40.5 inches (102.9 cm)
Extrusion and Sensor Head Thickness (with full assembly): 0.5 inches (12.7 mm)
Minimum/Maximum Sticker Thickness Range (with full assembly): 0.5 to 0.9 inches (12.7 mm to 22.9 mm)
Scanning Area (with full assembly): 2.5 x 2.5 inches (6.35 cm x 6.35 cm)
Scanning Depth (with full assembly): 1 inch minimum (25.4 mm)
Weight (spare head only): Specific weight of the spare head is typically less than the full assembly but may not be readily available as a separate specification.
Preparation: Ensure the Wagner L622 moisture meter is turned off and disconnected from the L722 40-inch Lumber Stack Probe.
Removal of Damaged Head: Carefully detach the damaged probe head from the probe extrusion of the L722. This usually involves a simple release mechanism or screws, depending on the design.
Installation of Spare Head: Align the spare Stack Probe Head-40" with the connection point on the probe extrusion.
Secure the Spare Head: Attach the spare probe head securely to the extrusion, ensuring a firm connection. This may involve tightening screws or engaging a locking mechanism.
Connect to Meter: Reconnect the L722 40-inch Lumber Stack Probe (now with the spare head) to the Wagner L622 Digital Recording Moisture Meter.
Verification: Turn on the moisture meter and perform a test reading to ensure the spare probe head is functioning correctly. Refer to the L622 and L722 user manuals for calibration or testing procedures if needed.
BENEFITS OF USING THE WAGNER METERS 40-INCH SPARE STACK PROBE HEAD (860-72202-001):
Reduction in Downtime: Having a spare readily available allows for immediate replacement of a damaged probe head, ensuring critical moisture readings can continue without delay.
Ease of Field Servicing: The detachable design enables users to perform the replacement themselves, eliminating the need for manufacturer assistance.
Proactive Equipment Management: Investing in a spare head ensures you are always prepared for potential issues, leading to greater efficiency and reduced operational costs.
Maintained Measurement Integrity: Compatibility with the trusted Wagner L622 moisture meter ensures that accuracy and reliability are upheld.
Quick Replacement Capability: Allows for fast swapping of damaged sensor heads to minimize interruptions.
Detachable Design: Facilitates easy removal of the old head and installation of the spare.
Optimized for L722 Probe: Engineered specifically for a secure and functional fit with the 40-inch Lumber Stack Probe.
Durable Construction: Built to withstand the demands of regular use in lumber handling environments.
Lightweight and Compact: Easy to store and handle, making the replacement process simple.
Ensures Continued Accuracy: Maintains the measurement integrity of the Wagner L622 system.
Product identification
- Brand: Wagner Meters
- Model / MPN: 860-72202-001
