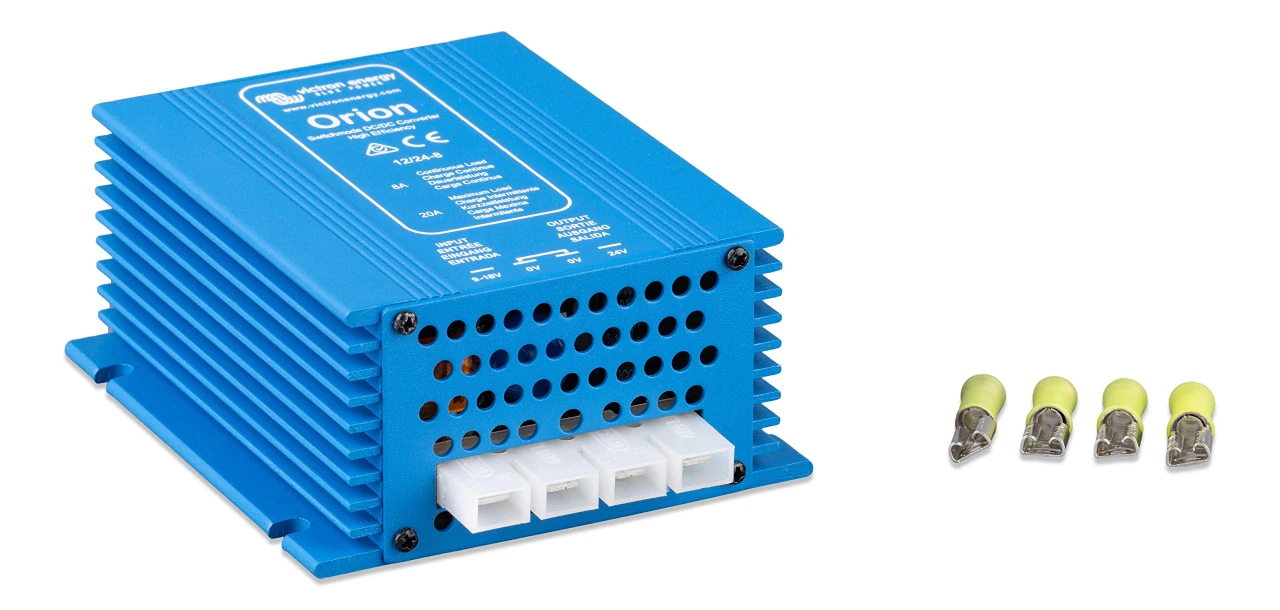

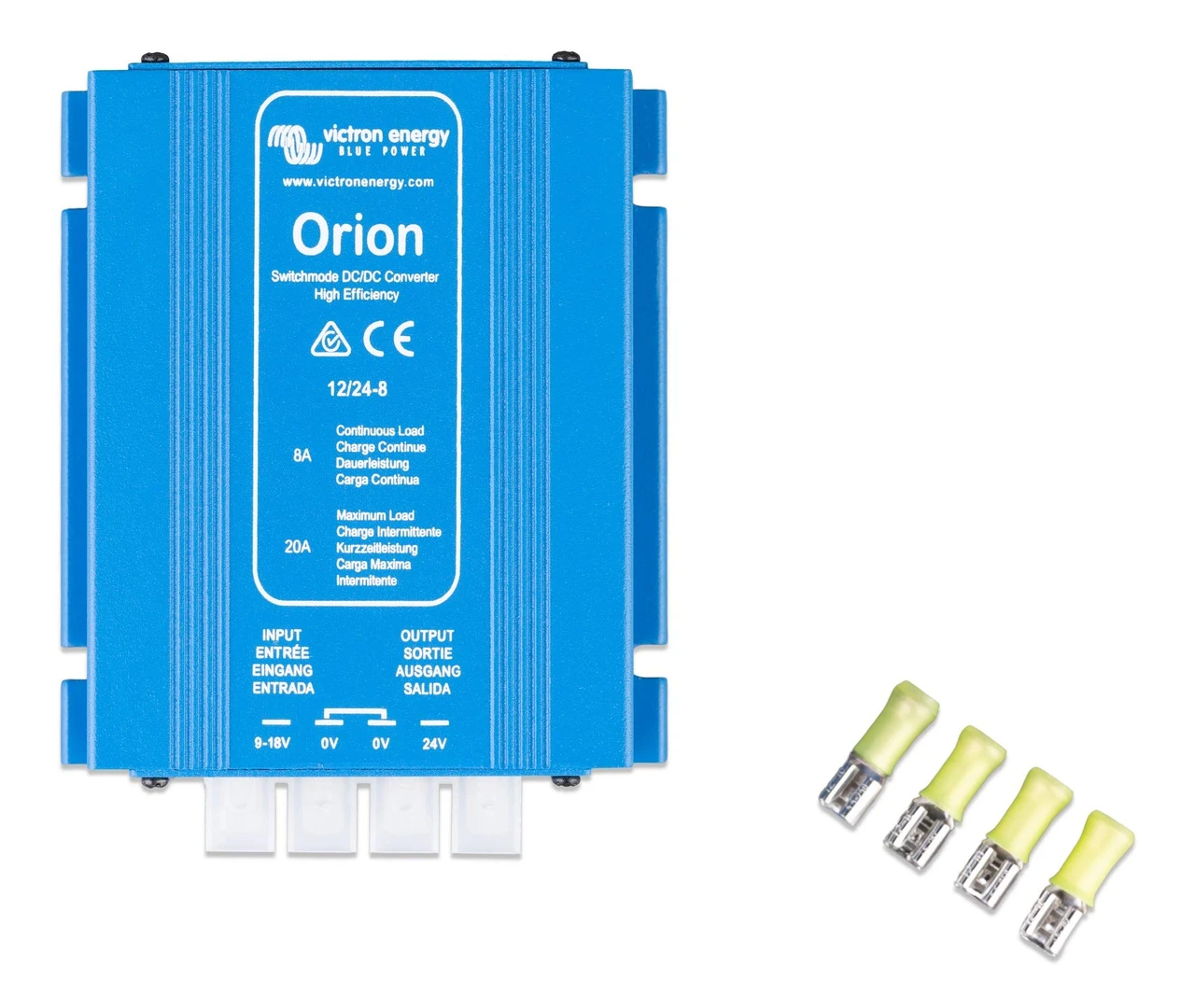

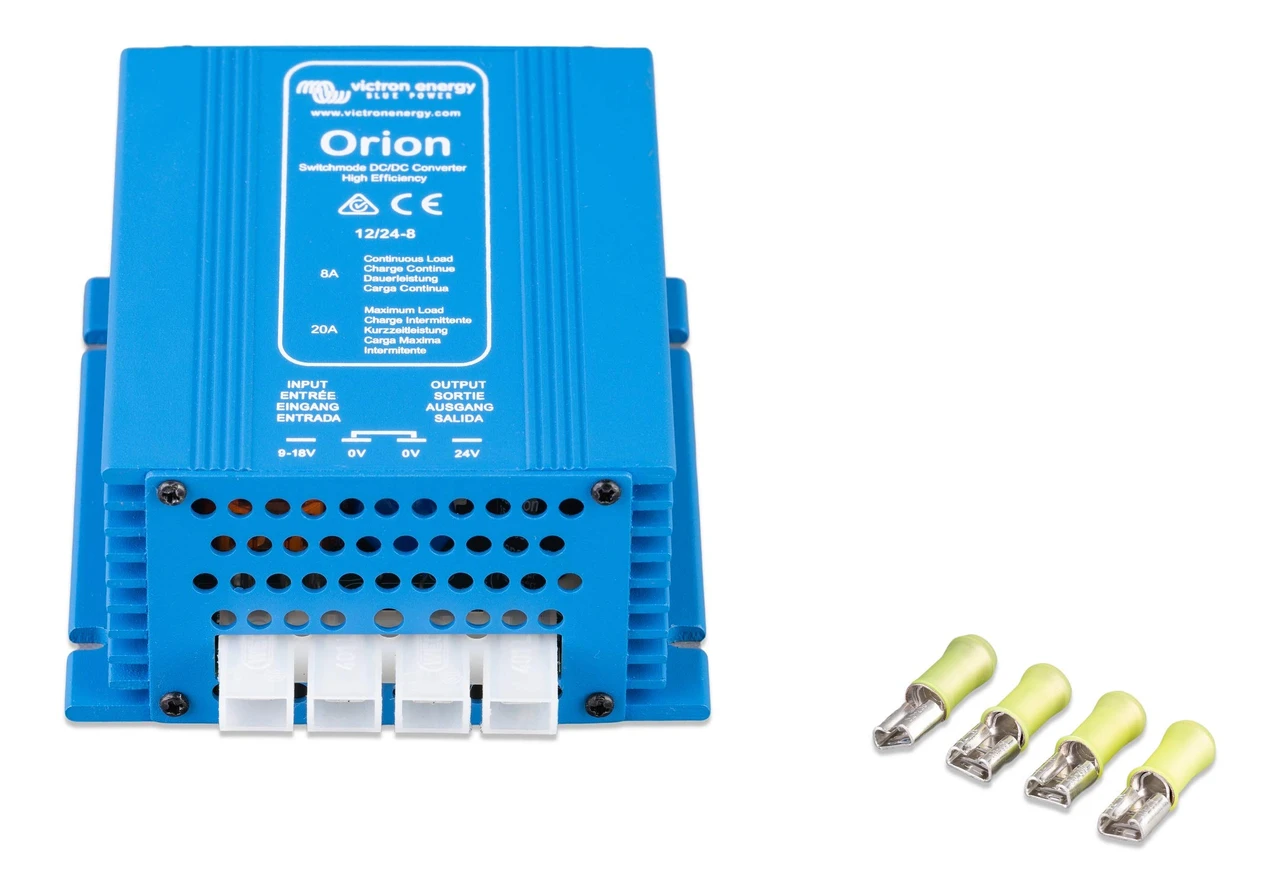

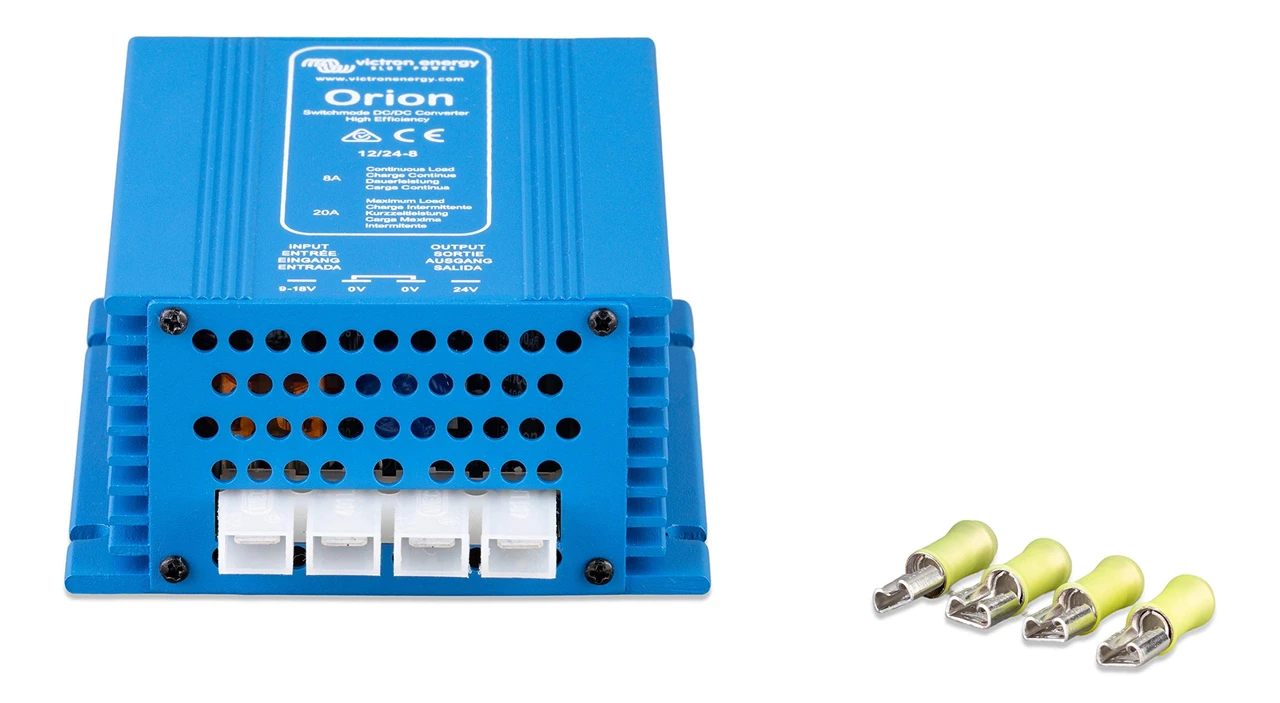

Victron Orion IP20 12/24V 8A DC-DC Converter (ORI122408020)
Victron ORI122408020 Orion IP20 12/24-Volt 8A DC-DC Converter Non-Isolated, High Power efficiently converts 12V power to a stable 24V output for various applications. Designed for reliability, this high-power step-up converter delivers consistent performance with an 8A continuous output and up to 20A surge capacity. Its compact design makes it ideal for space-constrained installations, while high efficiency ensures minimal power loss.
Step-up converter for 12V to 24V applications.
8A continuous output, 20A surge rating.
Non-adjustable 24V output for stable performance.
Compact size: 1.8" x 3.5" x 4.5".
High efficiency with minimal off-load power draw (<10mA).
Ensures a steady 24V output for demanding applications.
Reliable power conversion with high efficiency.
Compact and lightweight for easy installation.
Prevents unnecessary battery drain with low standby current.
Technical Specifications:
Model: ORI122408020
Input Voltage: 9-18V DC
Output Voltage: 24V DC (non-adjustable)
Continuous Output Current: 8A
Surge Output Current: 20A
Standby Current: <10mA
Dimensions: 1.8" x 3.5" x 4.5"
Product identification
- Brand: Victron
- Model / MPN: ORI122408020
