Victron Energy BMV-700H Battery Monitor (Grey) (BAM010700100)
Victron Energy BMV-700H Battery Monitor (Grey)

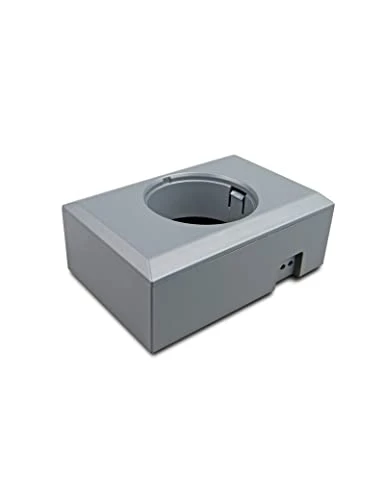

Victron Energy BMV-700H Smart is a high precision battery monitor that have been specially designed for systems with a high battery voltage ranging from 60 to 385 Volts. This battery monitor calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery. Comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable and a 500A/50mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.
Victron Energy BMV-700H Battery Monitor (Grey) is a high precision battery monitor for systems with a high battery voltage, ranging from 60 – 385 VDC

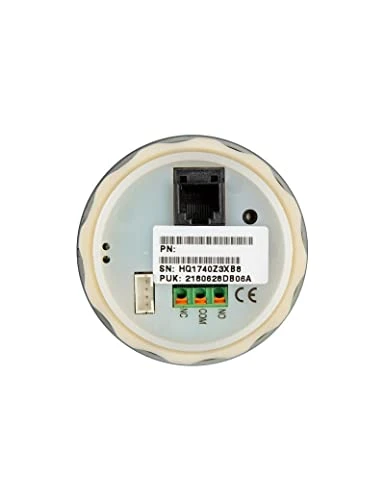

Victron Energy BMV-700H features a relay that can be programmed to control other devices (such as a battery protect or generator)
Connectivity – use a VE.Direct Bluetooth Smart dongle (sold separate) to monitor on smartphones and tablets. Or, connect to a GX device via VE.Direct cable (sold separate) and monitor anywhere in the world with VRM

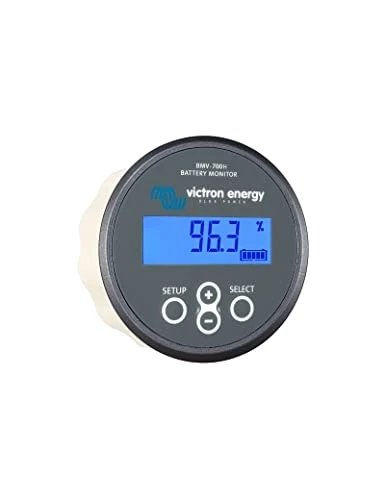

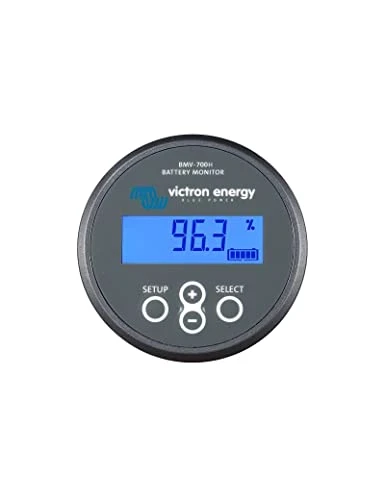

Displays % State of Charge, Voltage, Current, Energy/Time remaining, and more. Easy to Program for initial setup.
Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation. Because of the high voltage application, the shunt is housed in a special enclosure
Brand: Victron Energy
Model: BAM010700100
Variation Attributes: Style: BMV 700H – High Voltage;
Color: Blue,Grey
Size: BMV 700H – High Voltage
Length (inch): 2.72
Width (inch): 1.22
Height (inch): 2.72
Weight (lbs): 1.63
Product identification
- Brand: Victron
- Model / MPN: BAM010700100
