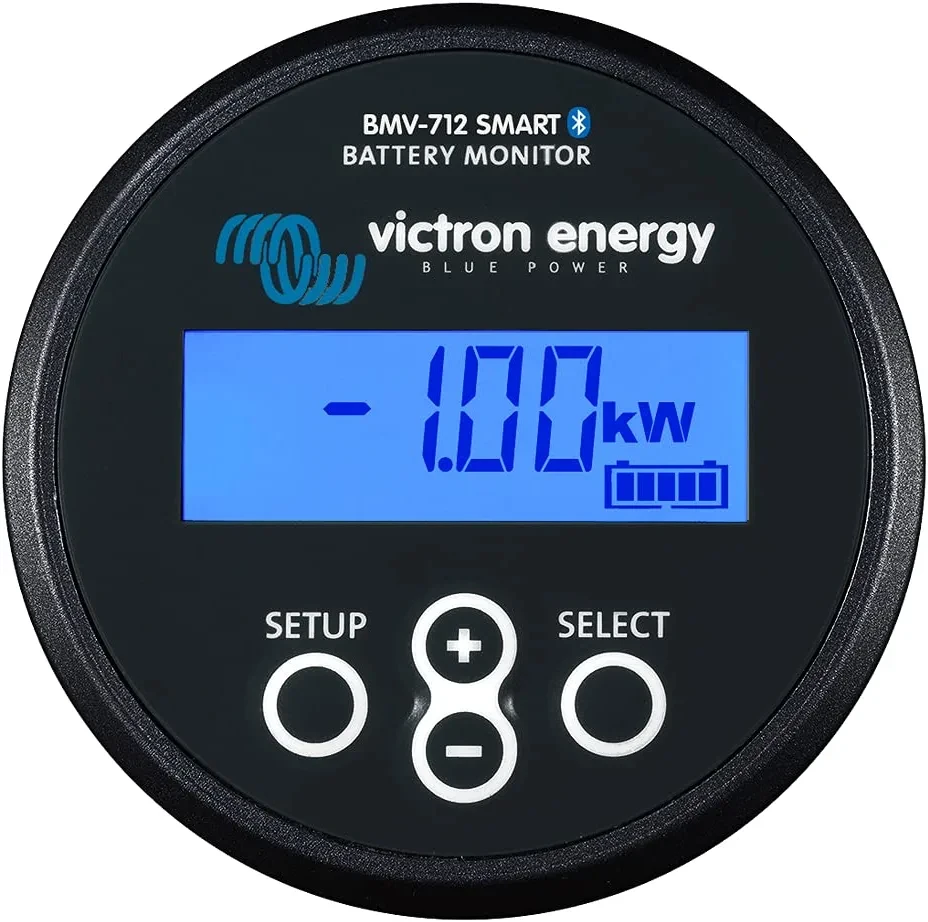

Victron BMV-712 Black Smart Battery Monitor (BAM030712200R)
Victron BAM030712200R Energy BMV-712 Black Smart Battery Monitor is a high-precision battery monitor with built-in Bluetooth, designed for real-time monitoring and optimization of battery performance. It simplifies system installation by enabling wireless communication with other Victron Energy products, enhancing overall efficiency and ease of use.

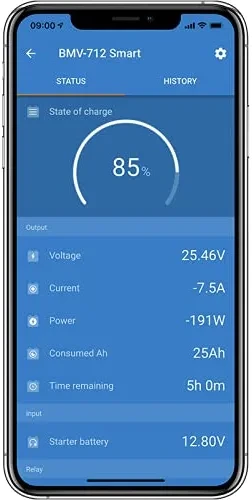

Integrated Bluetooth for wireless monitoring and setup via the VictronConnect app.
Ultra-low power consumption—only 0.7Ah per month @ 12V and 0.6Ah per month @ 24V.
Prevents battery damage by reducing residual current draw in low-voltage situations.
Bi-stable alarm relay to minimize current draw in alarm conditions.
Accurately tracks battery state-of-charge, voltage, current, power consumption, and time remaining.
Wireless connectivity simplifies system monitoring and configuration.
Protects batteries from deep discharge and overuse, extending battery life.
Reduces power consumption, making it ideal for lithium and lead-acid batteries.
Provides precise, real-time data for better energy management.
Easy installation and compatibility with Victron Energy systems.

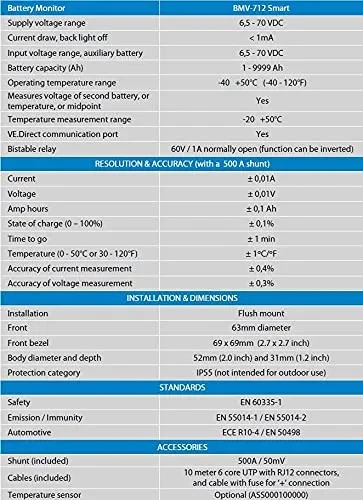

Technical Specifications:
Model: BAM030712200R
Battery Voltage Range: 6.5V – 95V
Current Draw: 0.7Ah per month @12V / 0.6Ah per month @24V
Communication: Bluetooth integrated
Alarm Relay: Bi-stable to minimize power consumption
Display: LCD with backlight

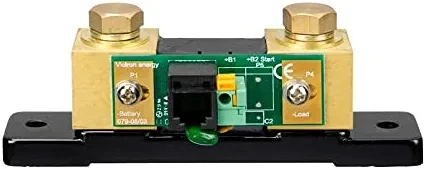

Installation: Includes shunt and connection cables
Dimensions: 63 x 63 x 31 mm (2.5 x 2.5 x 1.2 in)
Weight: Approx. 200g
Product identification
- Brand: Victron
- Model / MPN: BAM030712200R
