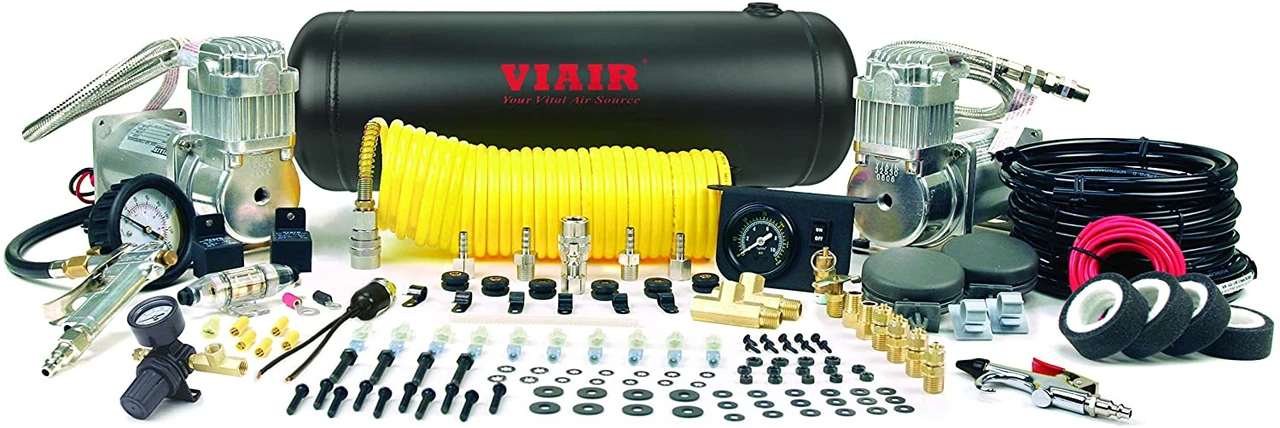

VIAIR Xtreme Duty Onboard Air System 12V 150 PSI Compressors 2G Tank (10009)
VIAIR Xtreme Duty Onboard Air System 12V 150 PSI Compressors 2G Tank (10009) is designed to tackle the toughest off-road challenges with ease. Featuring dual 350C VIAIR compressors and a 2.0-gallon air tank, this onboard air system is intended for inflating up to 37" tires and powering small pneumatic tools.
The VIAIR 10009 onboard air system comes with all the parts needed for a complete installation, including a sealed pressure switch, dash panel gauge with ON/OFF switch, and 30ft coil hose with quick connects.
Specifications and Dimensions
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 42 Amps
Ingress Protection Rating: IP67
Key Features and Benefits
Intended for inflation of up to 37" tires, suitable for actuating air bags, air horns, and small pneumatic tools.
Includes all parts needed for installation of your own onboard air solution.
Can inflate four tires up to 40 inches in diameter. Designed for uninterrupted use for up to an hour at 72°F ambient temperature
2.0 Gallon VIAIR Air Tank
(2) 350C VIAIR Compressors w/Thermal Overload Protectors
30ft. Coil Hose with Quick Connects
Tire Inflation Gun with 160 PSI Gauge
Dash Panel Gauge with ON/OFF Switch
0-220 PSI Pressure Regulator
Blow Gun Air Tool
Sealed Pressure Switch (110 PSI on, 145 PSI off)
(2) 40-amp Relays
(1) T-Fitting (1/4” (M) x 1/4″ (F) x 1/8” (F))
(1) T-Fitting (1/4” (M) x 1/4″ (F) x 1/4” (F))
1/4” Quick Connect Stud (F)
1/4” Quick Connect Coupler (F)
1/4” 175 PSI Safety Valve
(2) 1/8” BSP to 1/4” NPT
(4) 1/4” Compression Fittings
Product identification
- Brand: Viair
- Model / MPN: 10009
