Viair leader hose with check valve details

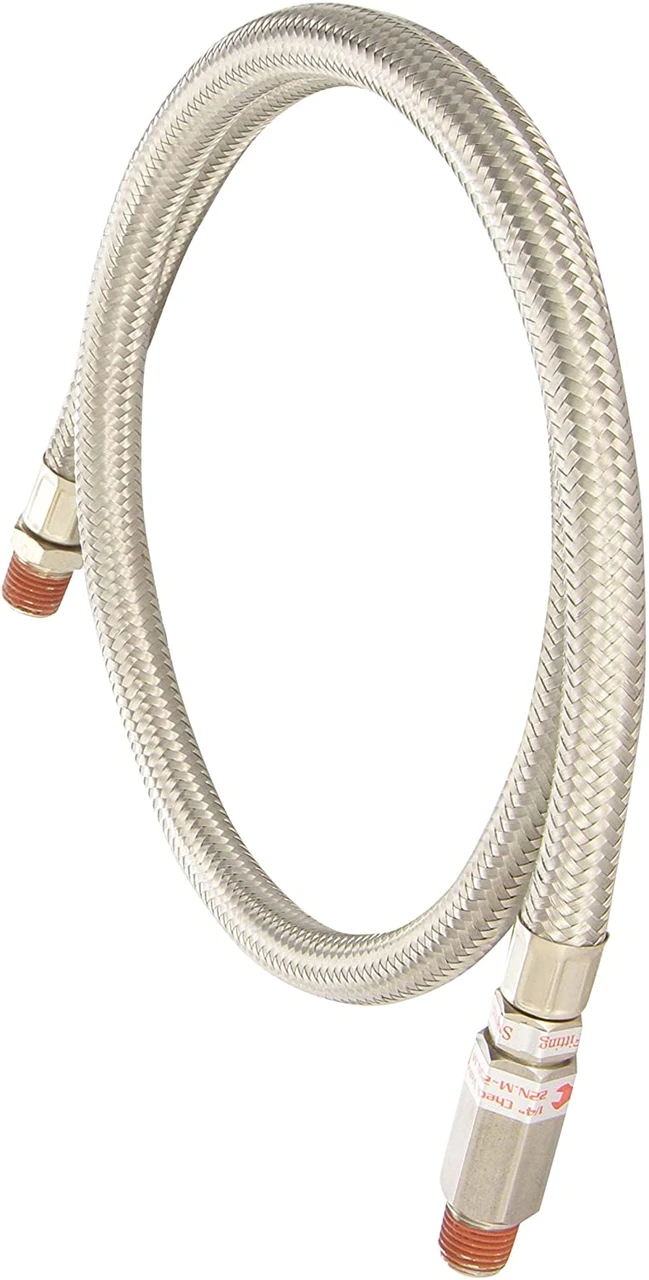

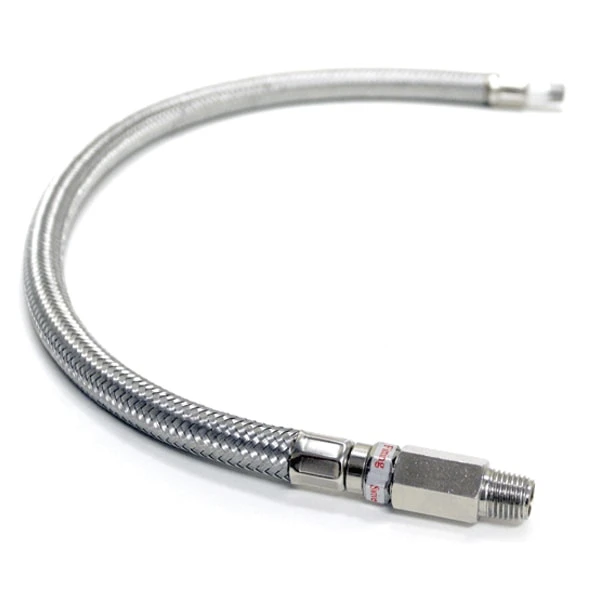

VIAIR Stainless Steel Braided Leader Hose 36-inch with Check Valve (92805)
VIAIR Stainless Steel Braided Leader Hose 36-inch (92805) provides a robust connection for air systems, designed to prevent leaks and ensure steady airflow.
The VIAIR 92805 leader hose with check valve measuring 36 inches in length and fitted with 1/4" male NPT swivel ends, is built to enhance any air system's reliability and performance. The hose features stainless steel braiding that not only adds to the durability but also shields against physical damage and heat. It includes a one-way check valve to prevent backflow and maintain system efficiency.
Specifications and Dimensions
Length: 36 inches
Diameter: 0.38 inches
Connection: 1/4" M to 1/4" M NPT Swivel
Material: Stainless Steel
Max Pressure: 250 PSI
Product Dimensions: 36"L x 0.38"W
Item Weight: 0.01 ounces
Installation Torque: 10-11 ft. lbs. for 1/8", 16-18 ft. lbs. for 1/4" and 3/8"
Key Features and Benefits
Stainless steel braiding offers superior heat dissipation and physical protection.
Pre-installed check valve maintains unidirectional flow of air, enhancing system efficiency.
Recommended installation torque ensures a leak-proof and secure setup.
Universal fitment with standard NPT threads for hassle-free installation.
Extended hose length provides flexible installation options across various applications.
Product identification
- Brand: Viair
- Model / MPN: 92805
