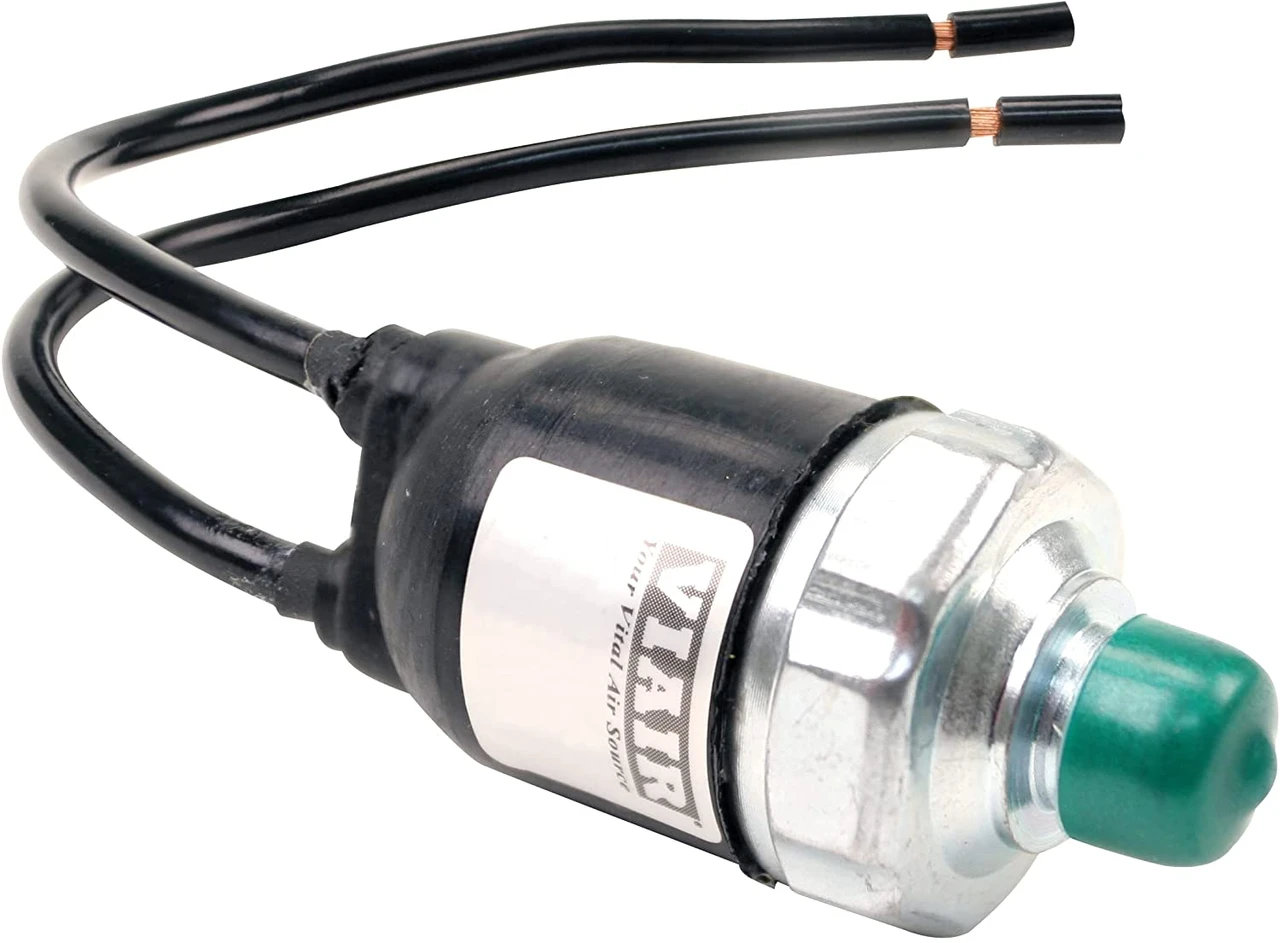

VIAIR Sealed Pressure Switch 1/8" M NPT Port Normally Open Nickel 12 Ga Lead (90223)
VIAIR Sealed Pressure Switch 1/8" M NPT Port Normally Open Nickel 12 Ga Lead (90223) ensures reliable air pressure control with a robust nickel contact material and a 1/8" (M) NPT port fitting. Designed for 12V DC systems, this switch operates in ON-OFF mode and is IP54 rated for dust and water resistance.
With a current rating of 30 Amps and 12 Ga lead wires, this sealed pressure switch provides consistent performance and high durability. Its compact size and crimp connector type make it suitable for various air compressor systems.
Specifications and Dimensions
Operation Mode: ON-OFF
Current Rating: 30 Amps
Operating Voltage: 12 Volts (DC)
Contact Type: Normally Open
Connector Type: Crimp
Contact Material: Nickel
International Protection Rating: IP54
1/8" (M) NPT Port Fitting
Lead Wire Gauge: 12 Ga
Upper Temperature Rating: 200°F
Dimensions: 2" x 1" x 1"
Item Weight: 1.6 ounces
Key Features and Benefits
ON-OFF operation mode ensures reliable air pressure control.
1/8" (M) NPT port fitting for secure installation.
Nickel contact material offers high durability and reliability.
12 Ga lead wires provide strong electrical connection.
IP54-rated for dust and water resistance.
Suitable for 12V DC air compressor systems.
Product identification
- Brand: Viair
- Model / MPN: 90223
