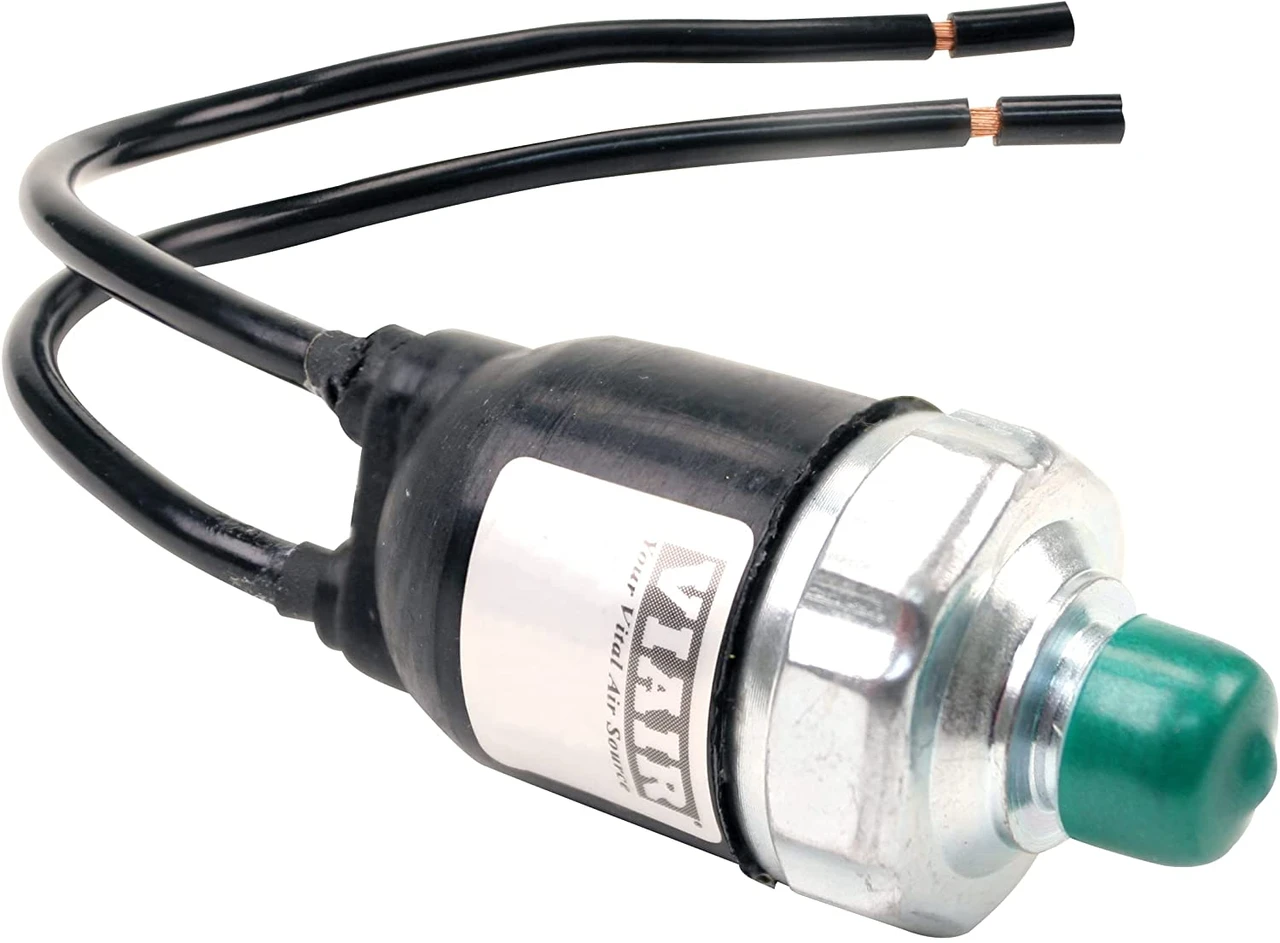

VIAIR Sealed Pressure Switch 1/8″ M NPT Port 12 GA Lead Wires (90219)

VIAIR Sealed Pressure Switch 1/8" M NPT Port 12 GA Lead Wires (90219)

VIAIR Sealed Pressure Switch 1/8" M NPT Port 12 GA Lead Wires (90219) provides reliable pressure control with its normally closed contact design. Rated at 30 amps with an IP54 protection rating, this sealed pressure switch is designed for durability and efficiency in 12V systems.

Equipped with a 1/8" (M) NPT port and 12 GA lead wires, the VIAIR Sealed Pressure Switch delivers consistent performance with high-quality brass contacts. Ensure seamless operation for your air compressor system.

Specifications and Dimensions

Operation Mode: ON-OFF

Current Rating: 30 Amps

Operating Voltage: 12 Volts

Contact Type: Normally Closed

Connector Type: Crimp

Terminal: Solder

International Protection Rating: IP54

Upper Temperature Rating: 180°F

Dimensions: 10" x 10" x 10"

Item Weight: 1.6 ounces

Product Dimensions: 10 x 10 x 10 inches

Key Features and Benefits

30-amp current rating ensures reliability in 12V systems.

1/8" (M) NPT port fitting for easy installation.

IP54-rated for water and dust resistance.

Brass contact material ensures durability and consistent performance.

Normally closed contact type for reliable pressure control.

Temperature rating of up to 180°F.

Product identification

• Brand: Viair
• Model / MPN: 90219
