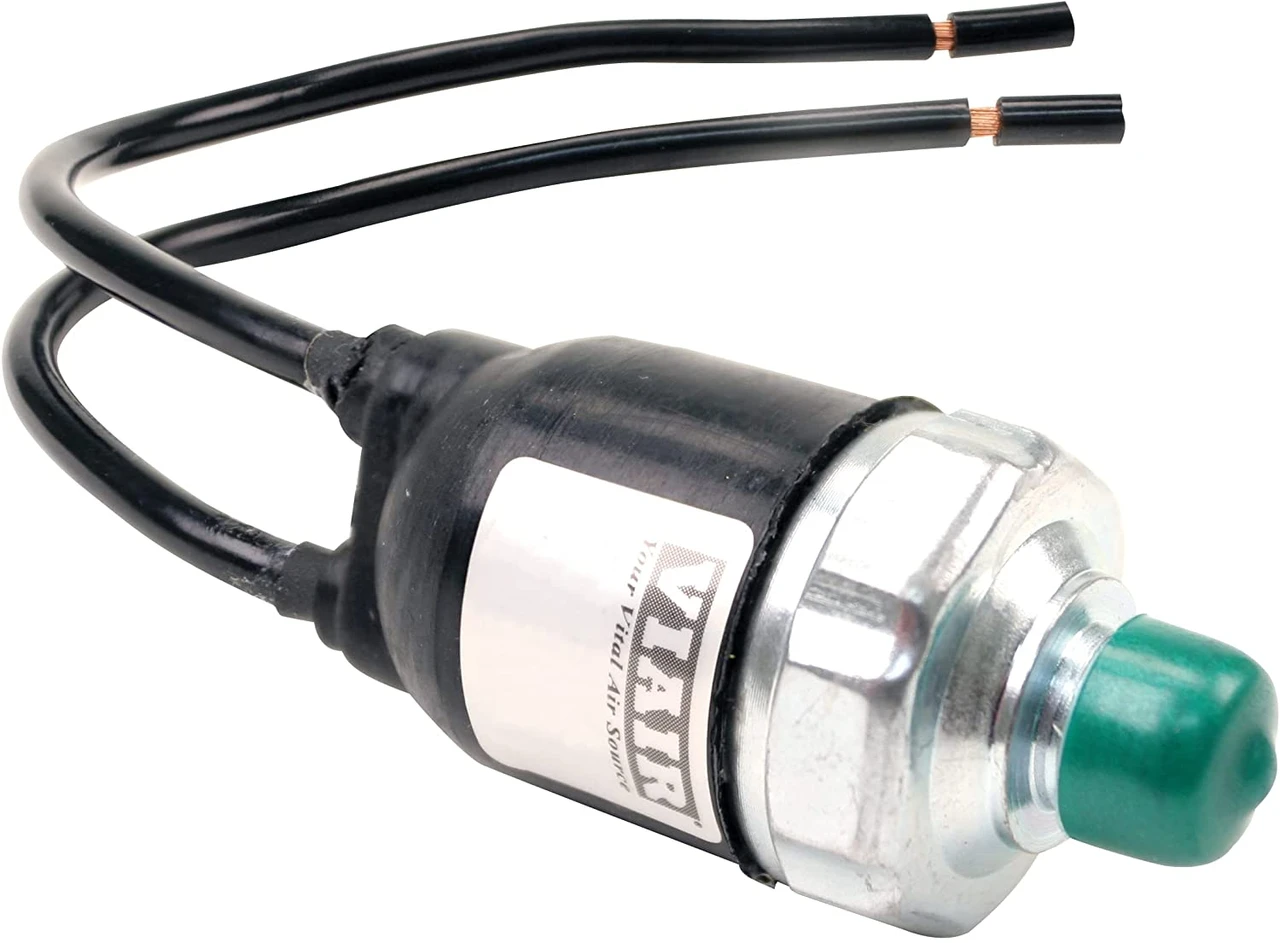

VIAIR Sealed Pressure Switch 1/4″ M NPT Port 12 Ga Lead Wires (24V, 30 Amps) (90227)

VIAIR Sealed Pressure Switch 1/4" M NPT Port 12 Ga Lead Wires (24V, 30 Amps) (90227)

VIAIR Sealed Pressure Switch 1/4" M NPT Port 12 Ga Lead Wires (24V, 30 Amps) (90227) is a reliable pressure control switch featuring a normally open contact type. It operates in ON-OFF mode with a 1/4" (M) NPT port fitting and 12 Ga lead wires.

Designed for use in 24-Volt systems, this sealed pressure switch comes with copper contact material and an IP54 rating for dust and water resistance. Its surface mount configuration and solder terminal ensure secure and robust installation.

Specifications and Dimensions

Sealed Pressure Switch

Operation Mode: ON-OFF

Current Rating: 30 Amps

Operating Voltage: 24-Volt

Contact Type: Normally Open

Connector Type: Crimp

Contact Material: Copper

International Protection Rating: IP54

1/4" (M) NPT Port Fitting

Lead Wire Gauge: 12 Ga

Mounting Type: Surface Mount

Upper Temperature Rating: 140°F

Dimensions: 6" x 6" x 5.5"

Item Weight: 1 ounce

Key Features and Benefits

ON-OFF operation mode with normally open contacts.

1/4" (M) NPT port fitting for secure installation.

Copper contact material ensures high durability and reliability.

12 Ga lead wires provide strong electrical connection.

IP54-rated for dust and water resistance.

Suitable for 24-Volt air compressor systems.

Product identification

• Brand: Viair
• Model / MPN: 90227
