Viair medium duty onboard air system details
VIAIR Medium Duty Onboard Air System 12V 150 PSI Compressor 2.5G Tank (10003)
VIAIR Medium Duty Onboard Air System 12V 150 PSI Compressor 2.5G Tank (10003) is designed to provide efficient and reliable pneumatic performance for a range of applications. This onboard air system includes a 325C compressor and a 2.5-gallon air tank, offering up to 150 PSI for your pneumatic needs.
The system's 33% duty cycle allows for continuous air supply, perfect for inflating tires, powering air tools, and more. The kit includes all essential components for easy installation and seamless integration into your vehicle.
Specifications and Dimensions
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 23 Amps
Ingress Protection Rating: IP67
Key Features and Benefits
Comprehensive onboard air system for medium-duty pneumatic tasks
325C air compressor delivers up to 150 PSI
Includes a 2.5-gallon air tank for ample air storage
Complete kit with pressure switch, safety valve, and mounting hardware
Easy installation and integration into your vehicle

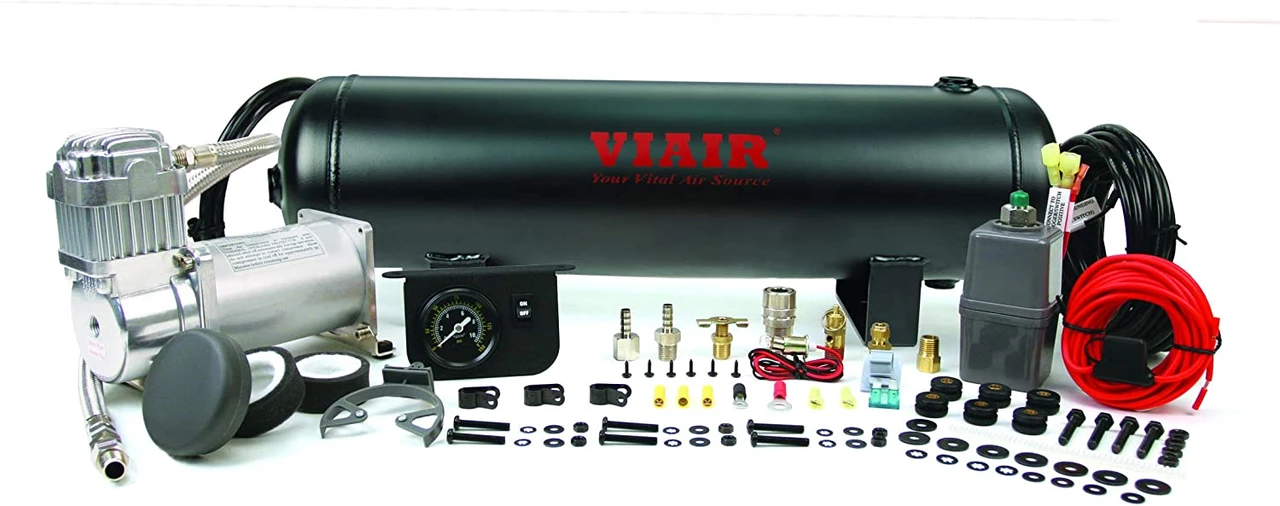

2.5 Gallon VIAIR Air Tank
325C VIAIR Air Compressor w/Thermal Overload Protector
Pressure Switch (110 PSI on, 145 PSI off)
Dash Panel Gauge w/ON-OFF Switch
1/4” NPT 175 PSI Safety Valve
1/4” Compression Fitting
20ft. 12 Gauge Wire with Inline Fuse Holder
Accessory Airline
Electrical Connections
Product identification
- Brand: Viair
- Model / MPN: 10003
