Viair onboard air system details
VIAIR Dual Stealth Black Gen 2 485C Onboard Air System 200 PSI 3.82 CFM (20185)
VIAIR Dual Stealth Black Gen 2 485C Onboard Air System (20185) features two stealth black 485C compressors with a 2.5-gallon air tank, delivering 200 PSI and 3.82 CFM for tire inflation and other pneumatic needs. The system is equipped with an illuminated dash panel gauge and a digital tire inflation gun for precise control.
The VIAIR Gen 2 485C dual stealth black air system includes a sealed pressure switch, pressure regulator, and thermal overload protectors, ensuring reliable performance in rugged conditions.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 44 Amps
Ingress Protection Rating: IP67
Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
Net Weight: 22.10 lbs.
Key Features and Benefits
Dual stealth black 485C compressors deliver 200 PSI and 3.82 CFM
2.5-gallon matte black air tank with a 200 PSI rating
Includes an illuminated dash panel gauge (200 PSI) and pressure regulator
Sealed pressure switch (165 PSI on, 200 PSI off) for optimal operation
Thermal overload protectors ensure safe and reliable performance
IP67 rated for dust and water protection

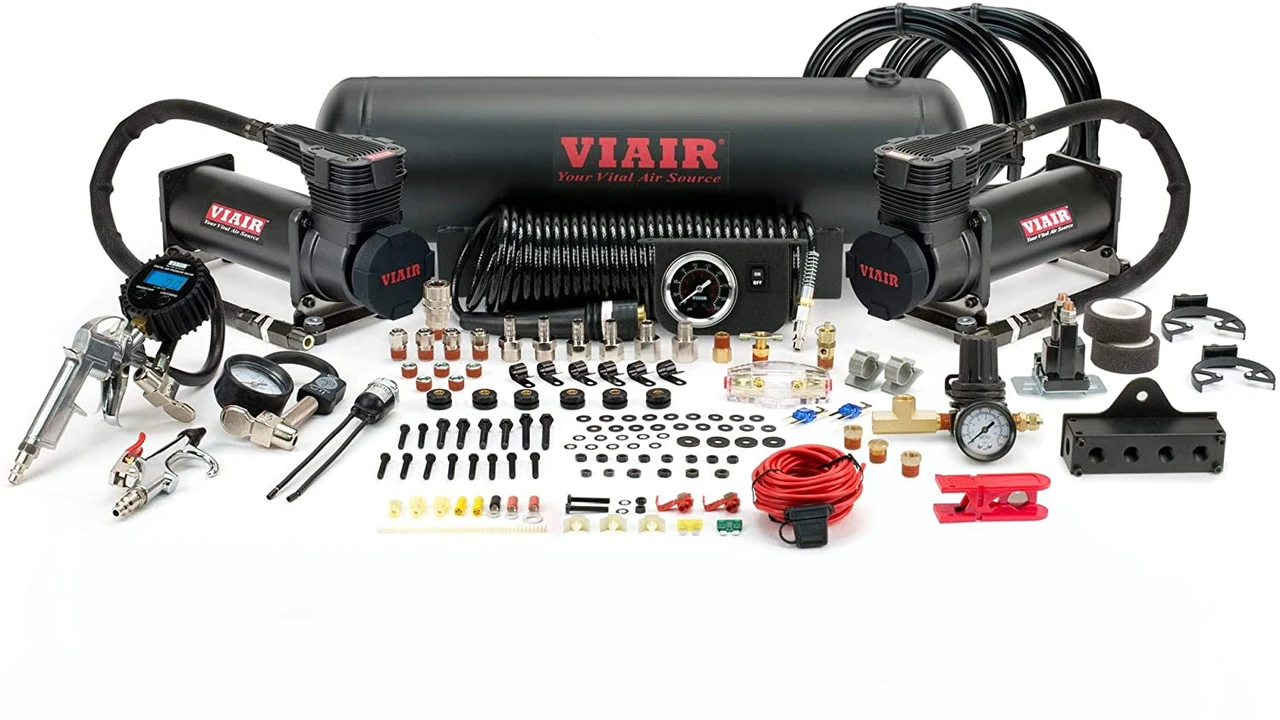

2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)

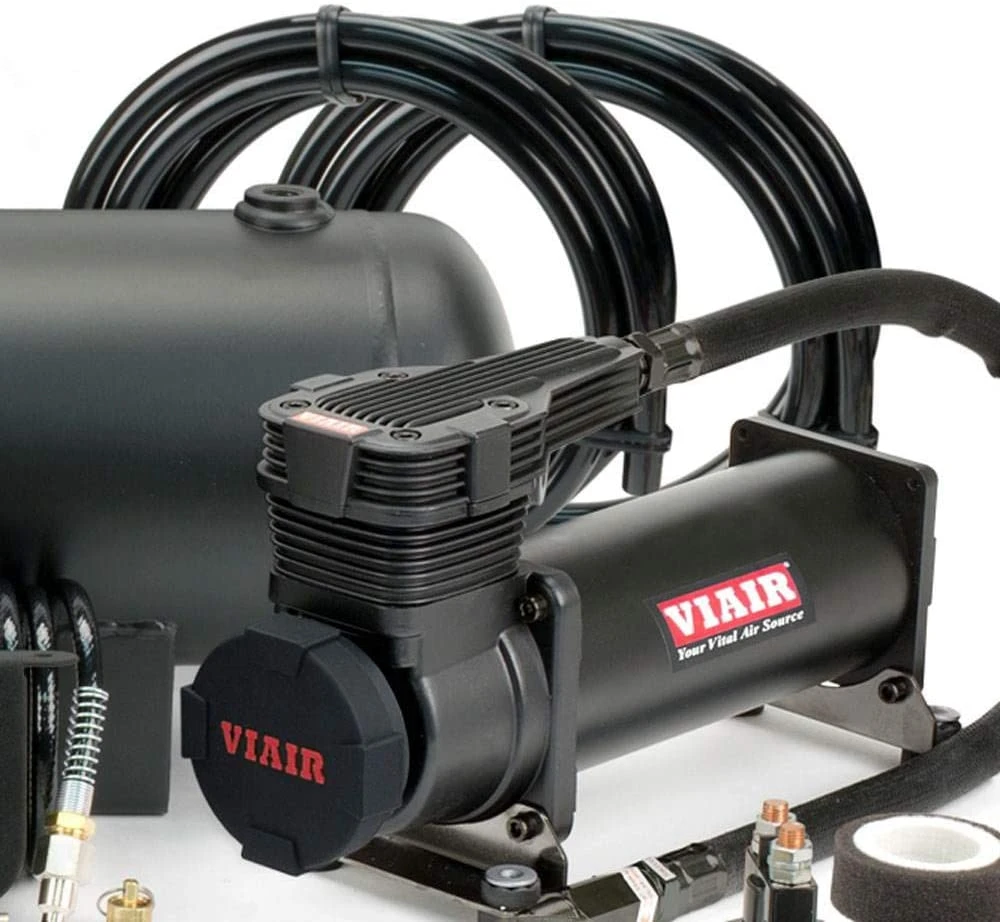

(2) 485C (Platinum or Stealth Black) Compressors w/Thermal Overload Protectors
Illuminated Dash Panel Gauge Kit, Black Face 200 PSI

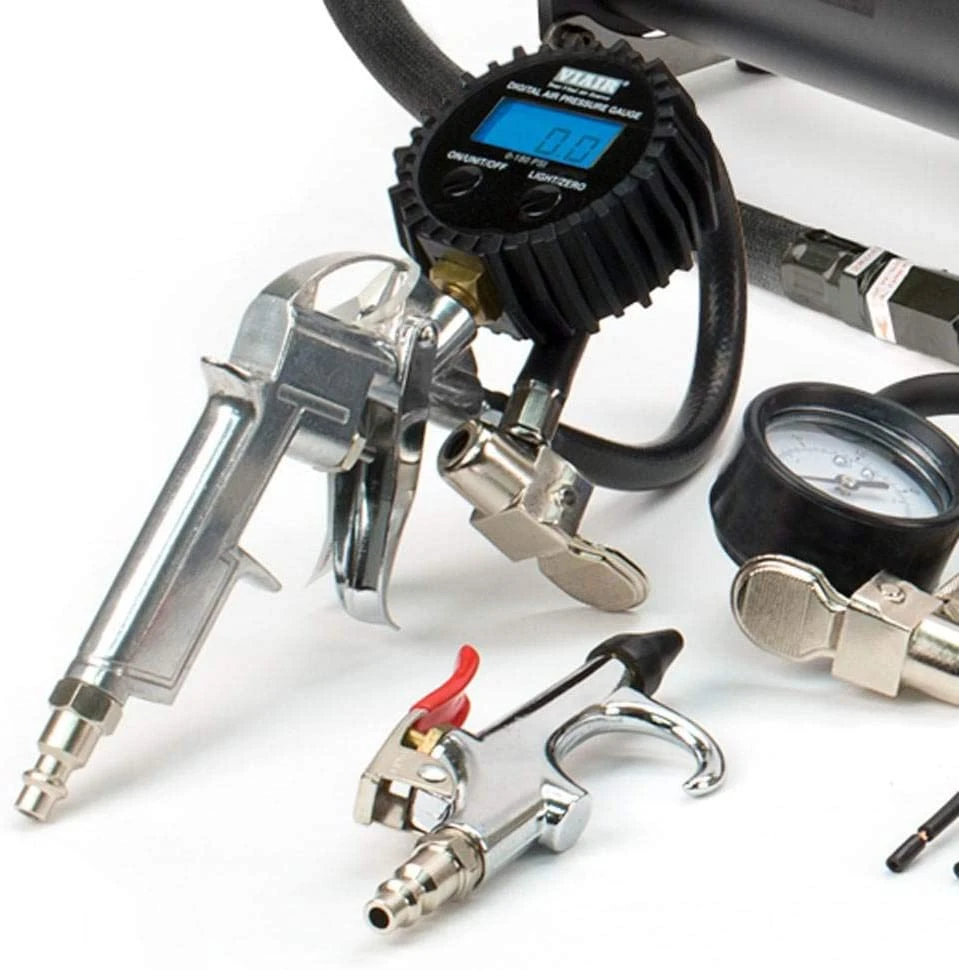

Digital Tire Inflation Gun (180PSI)

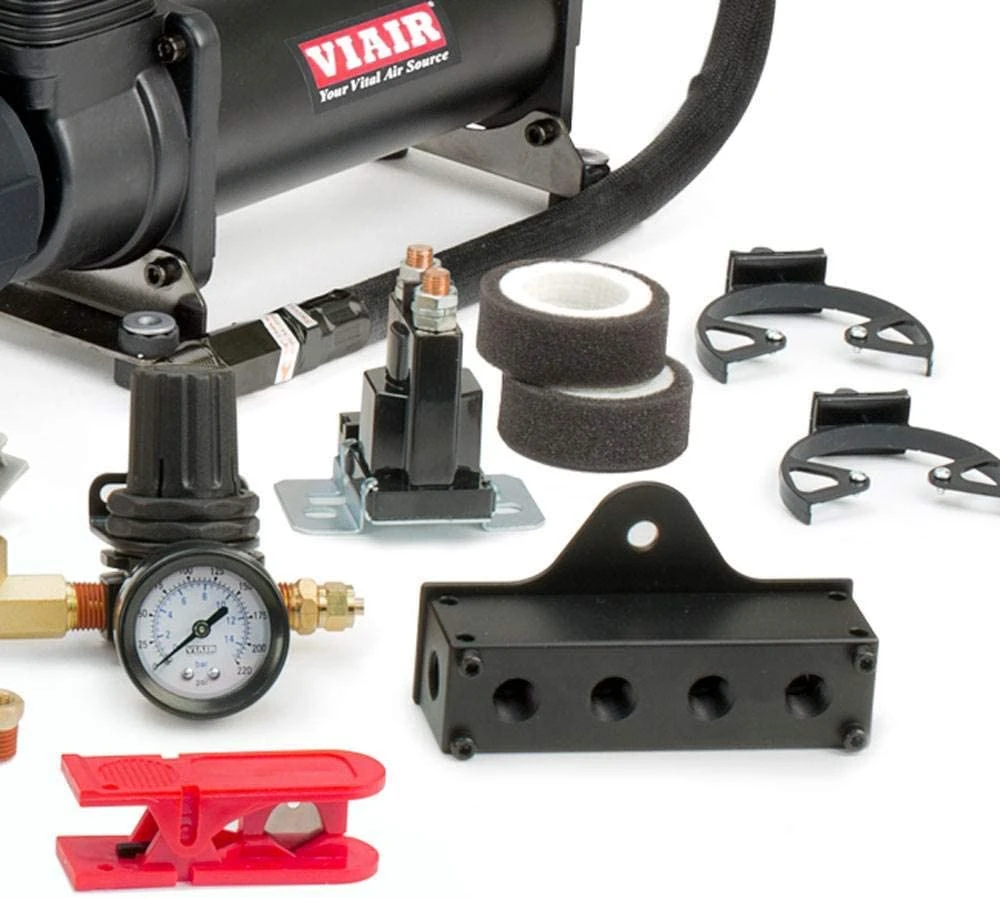

0-220 PSI Pressure Regulator
Sealed Pressure Switch (165 PSI on, 200 PSI off)
Heavy Duty 80 Amp Relay
Mini ANL Fuse Holder with 60 Amp Fuse
1/4” Quick Connect Coupler (M)
1/4” 250 PSI Safety Valve
(4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
6-Port Billet Manifold with Mounting Bracket (1/4”)
(2) 20ft. 1/4” Air Line Included
5 Pc. 1/4” NPT Plugs Kit
Extension Braided Black Coil Hose
Rubber Tip Blow Gun
3-in-1 Air Down Gauge
Stainless Steel Air Line Cutter
Product identification
- Brand: Viair
- Model / MPN: 20185
