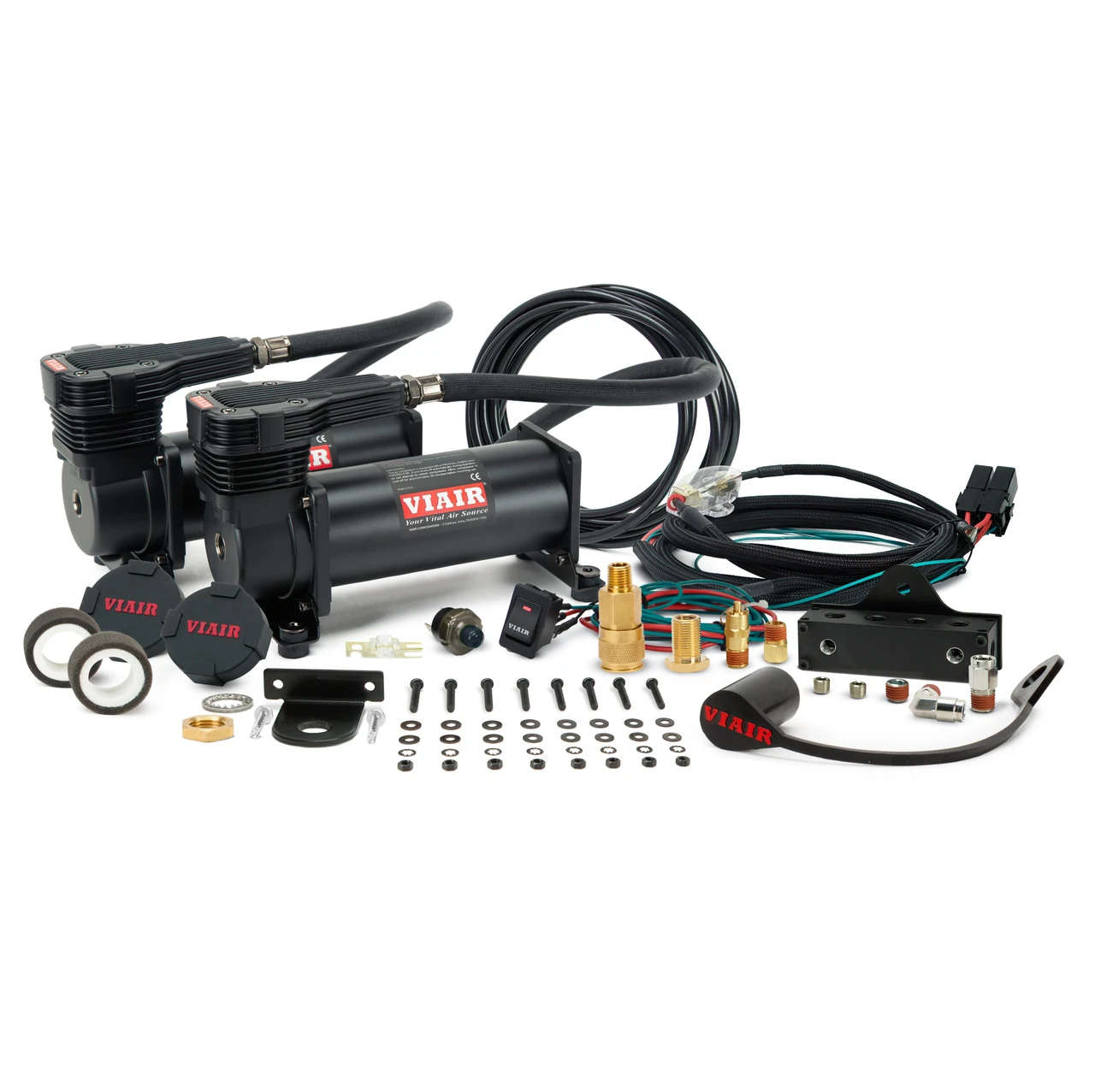

VIAIR Dual Stealth Black 485 Mounted System 200 PSI (485DB01)
VIAIR Dual Stealth Black 485 Mounted System 200 PSI (485DB01) provides a robust solution for high-demand air needs in any environment, designed for both efficiency and reliability.
Engineered with two 485C compressors, this VIAIR dual-mounted air system delivers continuous operation at 200 PSI, ensuring quick and effective tire inflation as well as the operation of high-demand air tools. Compact and easy to install, this system is perfect for automotive applications and more, offering unrivaled performance.
Specifications and Dimensions:
12-Volt permanent magnetic motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F, Min Ambient Temp: -40°F
Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
Net Weight: 30 lbs
Key Features and Benefits:
Includes two high-efficiency 485C compressors with thermal overload protectors
Sealed compressor design with an IP67 rating, ensuring protection against dust and moisture
Features an 8-Port Billet Manifold and Pro Series Air Source Relocation Kit
Comes with an illuminated rocker switch for easy control
Portable style with a black color scheme, ideal for discreet installation
(2) 485C (Stealth Black or Chrome) Compressors with Thermal Overload Protectors
Complete dual wiring harness with 80A fuse holder
Air Locker compatible
Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
Designed to be air tank ready (Air tank optional)
8-Port Billet Manifold
Pro Series Air Source Relocation Kit
Illuminated Rocker Switch
Product identification
- Brand: Viair
- Model / MPN: 485DB01
