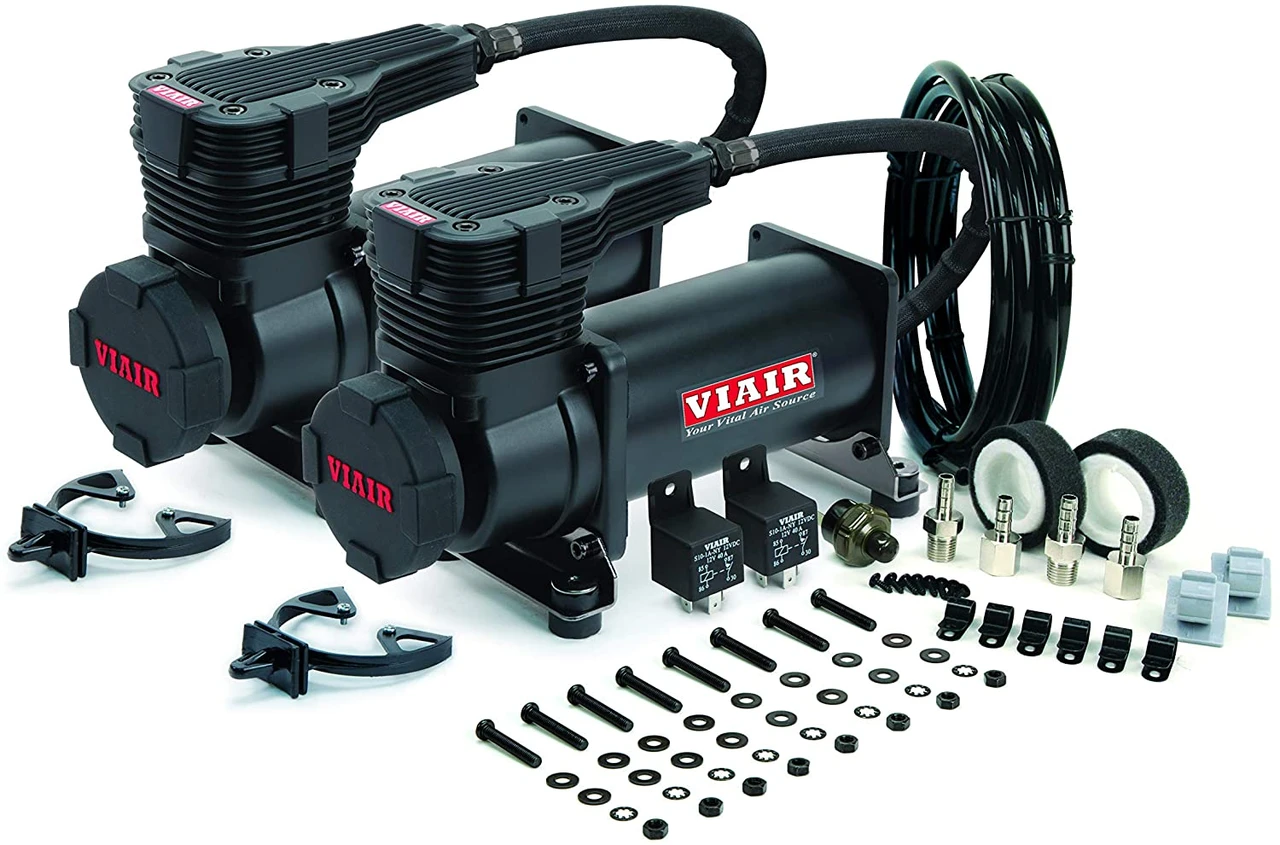

VIAIR Dual Stealth Black 425C Onboard Air System 175 PSI 4.80 CFM (20175)
VIAIR Dual Stealth Black 425C Onboard Air System (20175) combines two stealth black 425C compressors with a 2.5-gallon matte black air tank, delivering a powerful 175 PSI and 4.80 CFM for a wide range of pneumatic needs. This onboard air system features an illuminated dash panel gauge and a digital tire inflation gun for precise control and monitoring.
The VIAIR 20175 dual stealth black onboard air system is ideal for tire inflation, air lockers, and air tools. Its dual stealth black 425C compressors offer a 50% duty cycle at 100 PSI, ensuring high performance for extended use.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 50% @ 100 PSI
Duty Cycle: 33% @ 175 PSI
Max. Working Pressure: 175 PSI
Max. Air Tank Size: 5.0 Gallon
Combined Max. Amp Draw: 60 Amps
Ingress Protection Rating: IP67
Dimensions: 9.25″L x 4.14″W x 6.59″H
Net Weight: 11.10 lbs.
Key Features and Benefits
Dual stealth black 425C compressors deliver 175 PSI and 4.80 CFM
2.5-gallon matte black air tank with a 200 PSI rating
Includes a digital tire inflation gun (180 PSI) and pressure regulator
Sealed pressure switch (140 PSI on, 175 PSI off) for optimal operation
Comprehensive set of fittings and manifold for easy installation
IP67 rated for dust and water protection
2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
(2) 425C Platinum or Stealth Black VIAIR Compressors
Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
Digital Tire Inflation Gun (180PSI)
0-220 PSI Pressure Regulator
Sealed Pressure Switch (140 PSI on, 175 PSI off)
Heavy Duty 80 Amp Relay
Mini ANL Fuse Holder with 60 Amp Fuse
1/4” Quick Connect Coupler (M)
1/4” 250 PSI Safety Valve
(4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
6-Port Billet Manifold with Mounting Bracket (1/4”)
(2) 20ft. 1/4” Air Line Included
5 Pc. 1/4” NPT Plugs Kit
Extension Braided Black Coil Hose
Rubber Tip Blow Gun
3-in-1 Air Down Gauge
Stainless Steel Air Line Cutter
Product identification
- Brand: Viair
- Model / MPN: 20175
