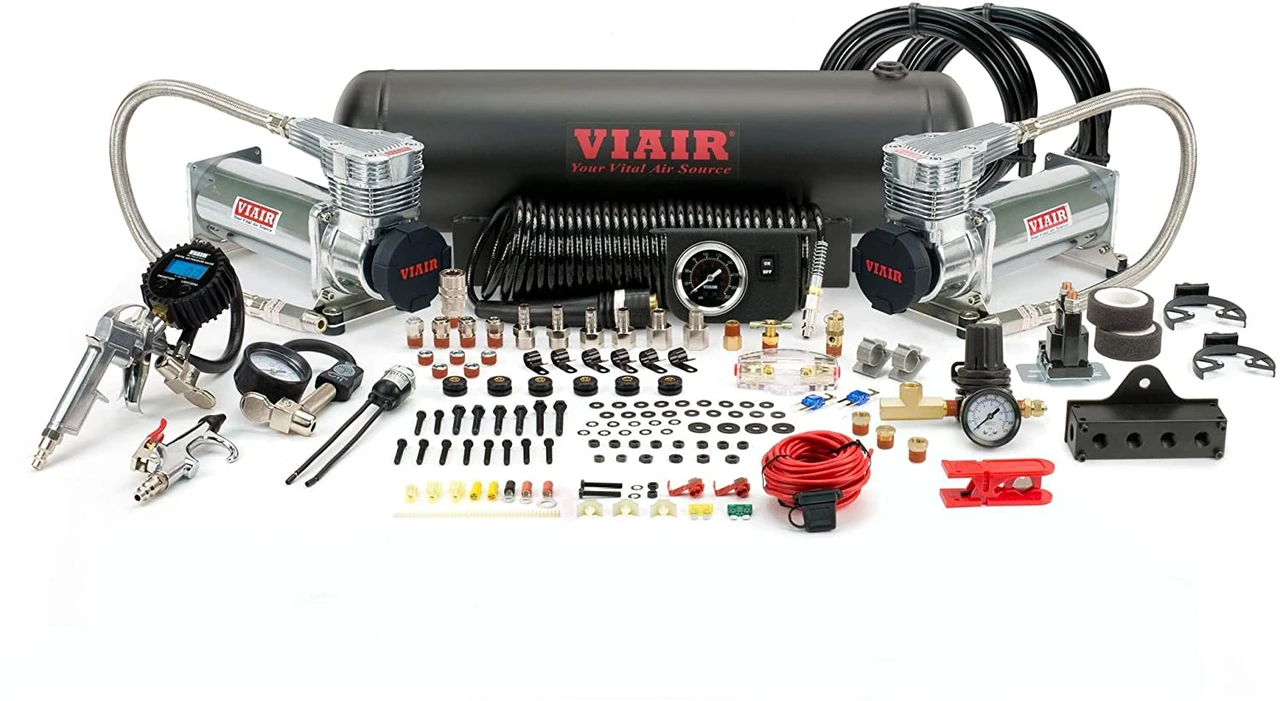

VIAIR Dual Platinum Gen 2 485C Onboard Air System 200 PSI 3.82 CFM (20085)
VIAIR 20085 Dual Platinum Gen 2 485C Onboard Air System (20085) features dual compressors with a 2.5-gallon air tank, delivering 200 PSI and 3.82 CFM for maximum performance. The Gen 2 485C compressors offer a 100% duty cycle, making this system suitable for various applications, including tire inflation and air lockers.
With a sealed pressure switch, dash panel gauge, and 0-220 PSI pressure regulator included, the VIAIR 20085 dual onboard air system Gen 2 ensures precise control and monitoring.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 44 Amps
Ingress Protection Rating: IP67
Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
Net Weight: 22.10 lbs.
Voltage: 12 Volts
Noise Level: 69 dB
Air Flow Capacity: 3.82 Cubic Feet Per Minute
Key Features and Benefits
Dual 485C compressors deliver a maximum working pressure of 200 PSI
2.5-gallon matte black air tank with a 200 PSI rating
Includes a digital tire inflation gun (180 PSI) and pressure regulator
Sealed pressure switch (165 PSI on, 200 PSI off) for optimal operation
Comprehensive set of fittings and manifold for easy installation
IP67 rated for dust and water protection
2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)

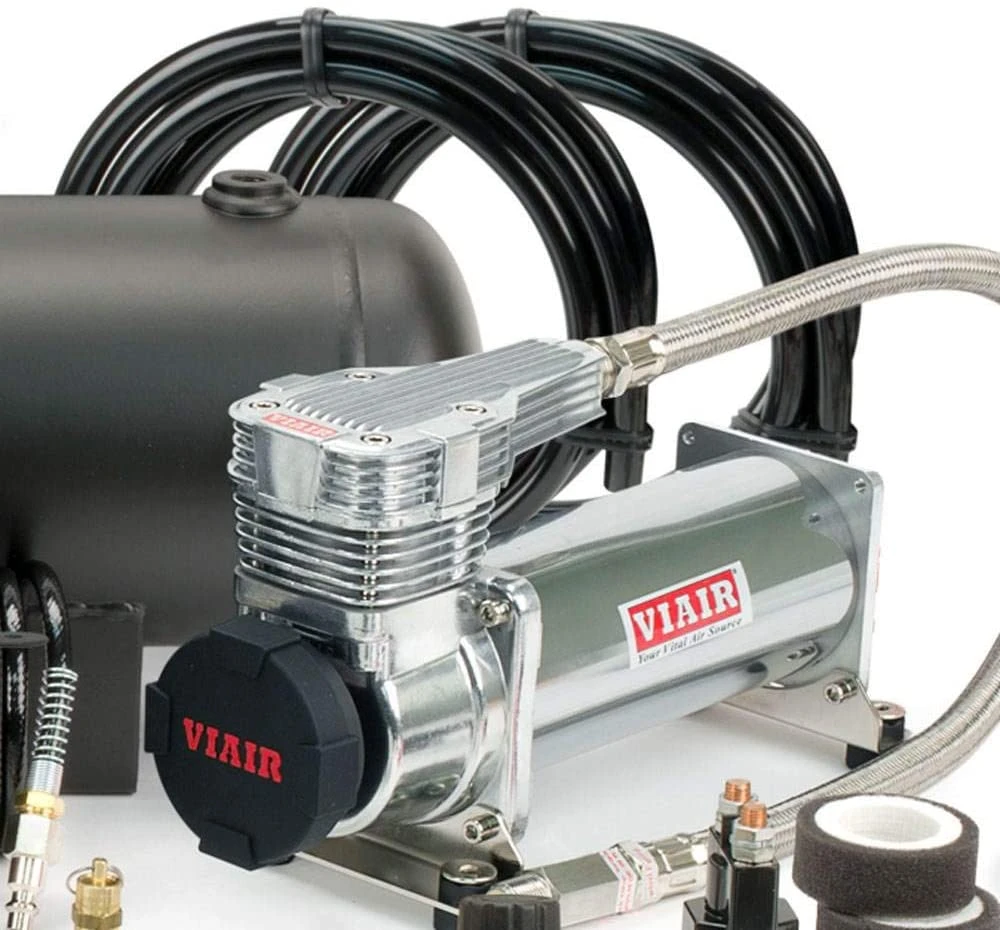

(2) 485C (Platinum or Stealth Black) Compressors w/Thermal Overload Protectors
Illuminated Dash Panel Gauge Kit, Black Face 200 PSI

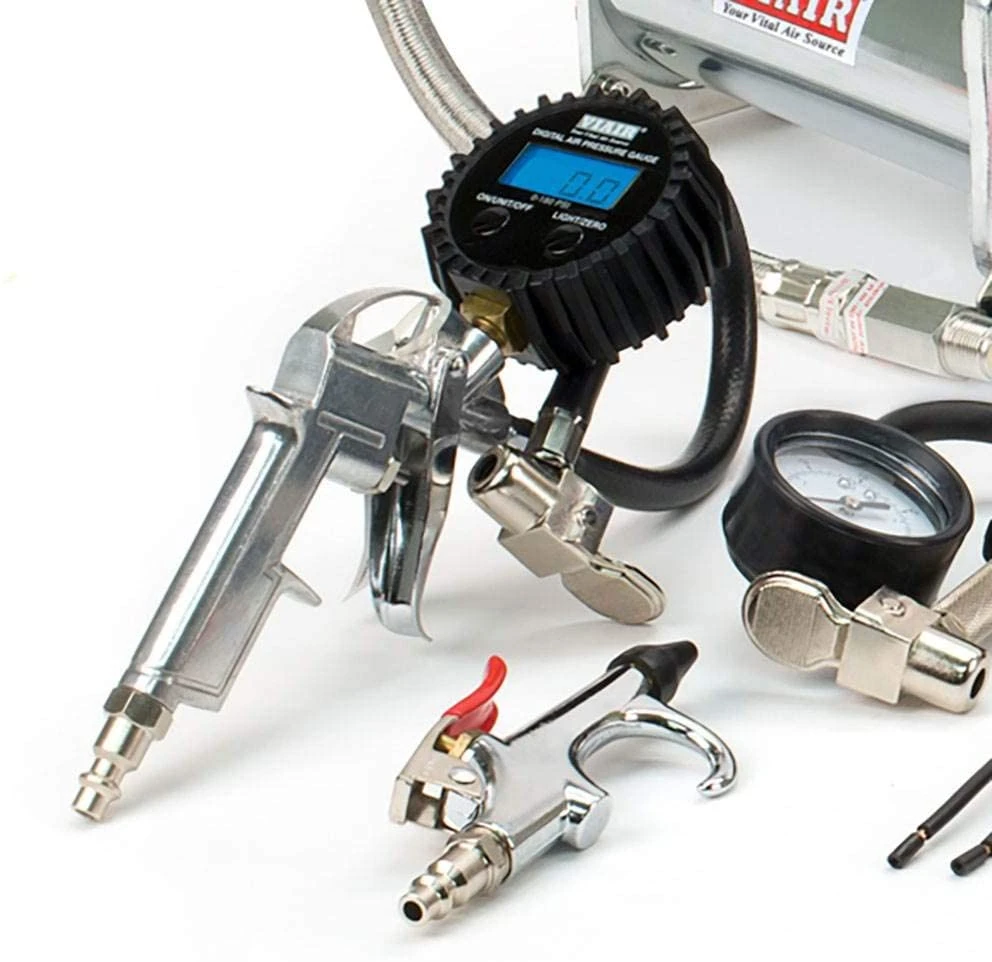

Digital Tire Inflation Gun (180 PSI)

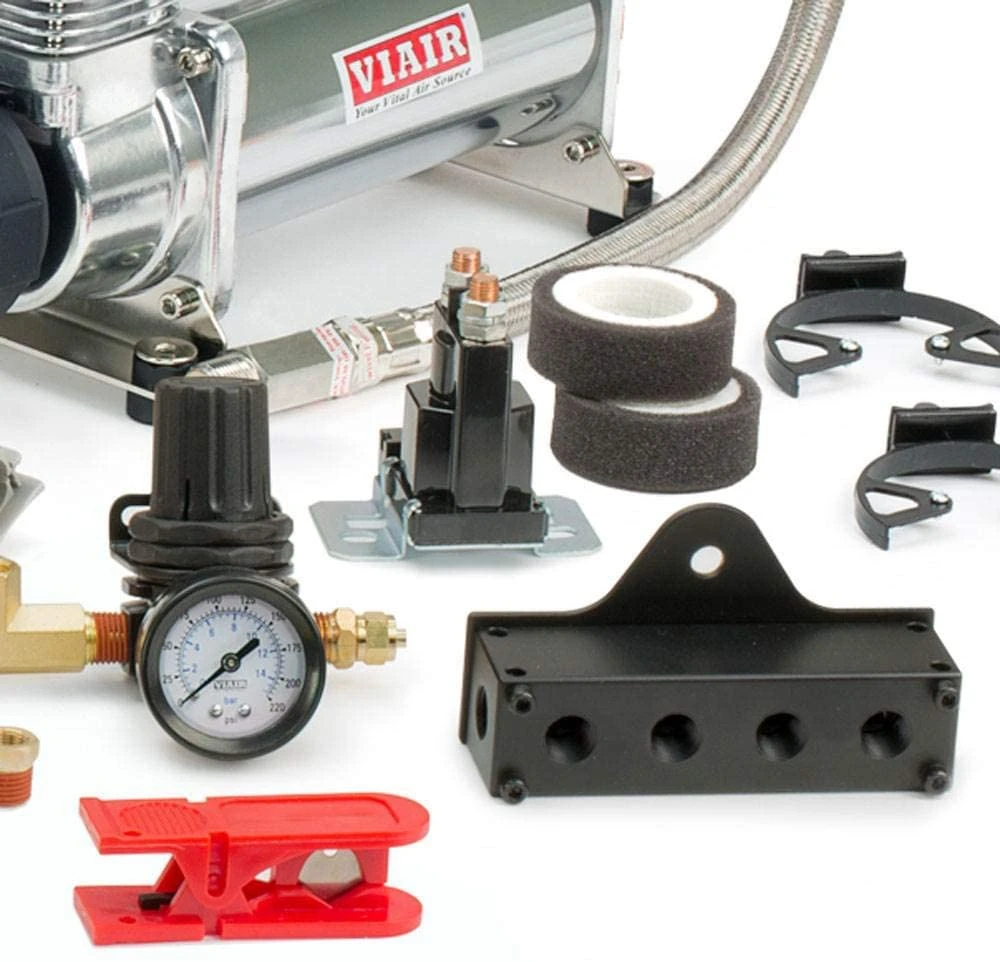

0-220 PSI Pressure Regulator
Sealed Pressure Switch (165 PSI on, 200 PSI off)
Heavy Duty 80 Amp Relay
Mini ANL Fuse Holder with 60 Amp Fuse
1/4” Quick Connect Coupler (M)
1/4” 250 PSI Safety Valve
(4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
6-Port Billet Manifold with Mounting Bracket (1/4”)
(2) 20ft. 1/4” Air Line Included
5 Pc. 1/4” NPT Plugs Kit
Extension Braided Black Coil Hose
Rubber Tip Blow Gun
3-in-1 Air Down Gauge
Stainless Steel Air Line Cutter
Product identification
- Brand: Viair
- Model / MPN: 20085
