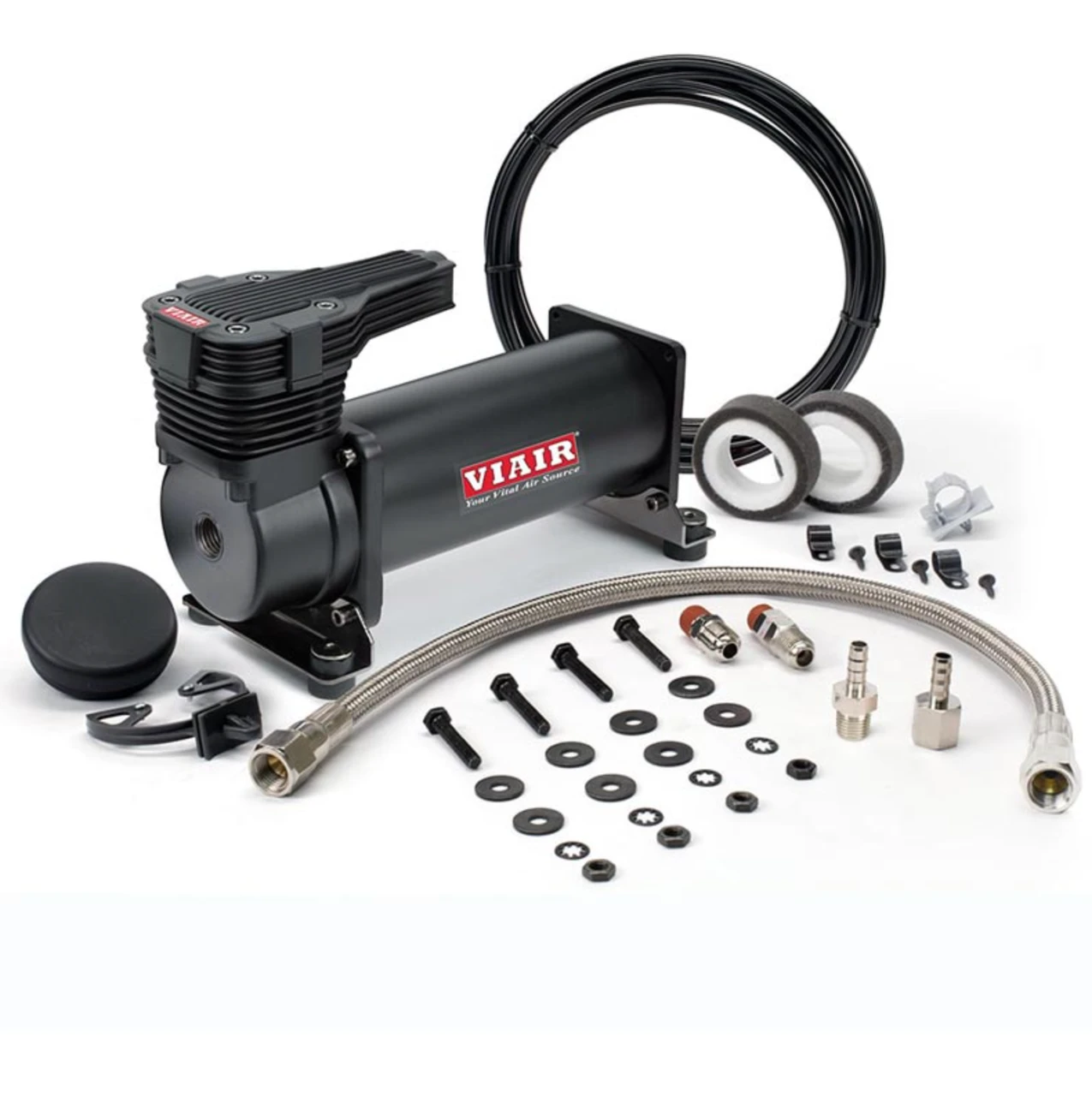

VIAIR 485C HG 200 PSI Series Compressor Kit CE Intercooler Head (48550)
VIAIR 485C HG 200 PSI Series Compressor Kit (48550) is a robust air compressor solution featuring a 100% duty cycle at 200 PSI. The HG (High-Grade) Series compressor kit includes a CE intercooler head, sealed IP67 protection, and delivers high performance for all your air supply needs.
The VIAIR 48550 485C HG provides exceptional durability with a thermal overload protector, stainless steel braided leader hose, and check valve. The 485C HG Series Compressor Kit includes a matte black filter cap cover with the VIAIR logo, air filter assembly, and vibration isolators for smooth operation.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 23 Amps
Ingress Protection Rating: IP67
Dimensions: 10.63″L x 4.1″W x 6.44″H
Net Weight: 11.10 lbs.
Key Features and Benefits
100% duty cycle at 200 PSI for consistent high performance.
CE intercooler head ensures efficient heat dissipation.
Thermal overload protector prevents overheating.
IP67-rated sealed design offers weather resistance and durability.
Stainless steel braided leader hose and vibration isolators ensure reliability.
Matte black filter cap cover with VIAIR logo adds a sleek appearance.
Remote mount fittings and filter assembly included for versatile installation.
Thermal Overload Protector
485C HG Compressor
Air Filter Assembly
VIAIR Removable Filter Cover
(2) Replacement Air Filter Elements
Remote Mount Bracket
Set of Remote Mount Fitting
(2) Leader Hose Clips
Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
Stainless Steel Braided Leader Hose with Inline Check Valve
Air Line (For Remote Mount Filter Installation)
Installation Instructions
Product identification
- Brand: Viair
- Model / MPN: 48550
