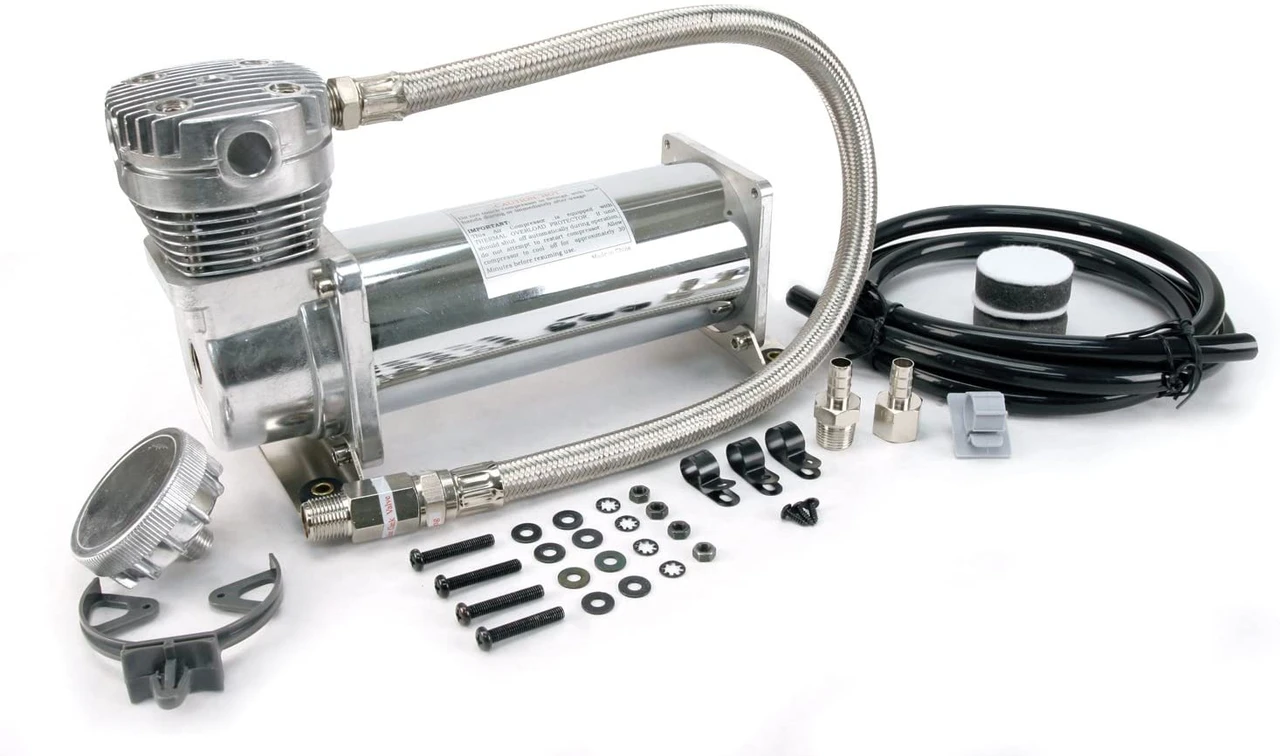

VIAIR 460C Chrome Compressor Kit 3/8″ Port 12V 100% Duty Sealed (46043)

VIAIR 460C Chrome Compressor Kit 3/8" Port 12V 100% Duty Sealed (46043)

VIAIR 460C Chrome Compressor Kit, 3/8" Port (46043) is a high-performance, reliable solution designed for optimal air pressure maintenance. Equipped with horizontal cooling fins, a trapezoidal head design, and a standard 3/8" NPT stainless steel braided leader hose with an inline check valve.

This sealed 12V compressor is perfect for various applications. The maximum working pressure of 150 PSI, thermal overload protector, and vibration isolators provide added safety and stability, making it a versatile choice for air reservoir tanks and other pneumatic needs.

Specifications and Dimensions

12-Volt Permanent Magnetic Motor

Duty Cycle: 100% @ 100 PSI

Max. Working Pressure: 150 PSI

Max. Air Tank Size: 5.0 Gallon

Max. 12V Amp Draw: 23 Amps

Ingress Protection Rating: IP67

Dimensions: 11.5″L x 4.3″W x 6.5″H

Net Weight: 11.10 lbs.

Key Features and Benefits

Thermal Overload Protector

Vibration Isolators

Mounting Hardware

Stainless Steel Braided Leader Hose

Air Line for Remote Mount Air Filter

Remote Mount Air Filter Assembly

(2) Replacement Air Filter Elements

Installation Instructions

Product identification

• Brand: Viair
• Model / MPN: 46043
