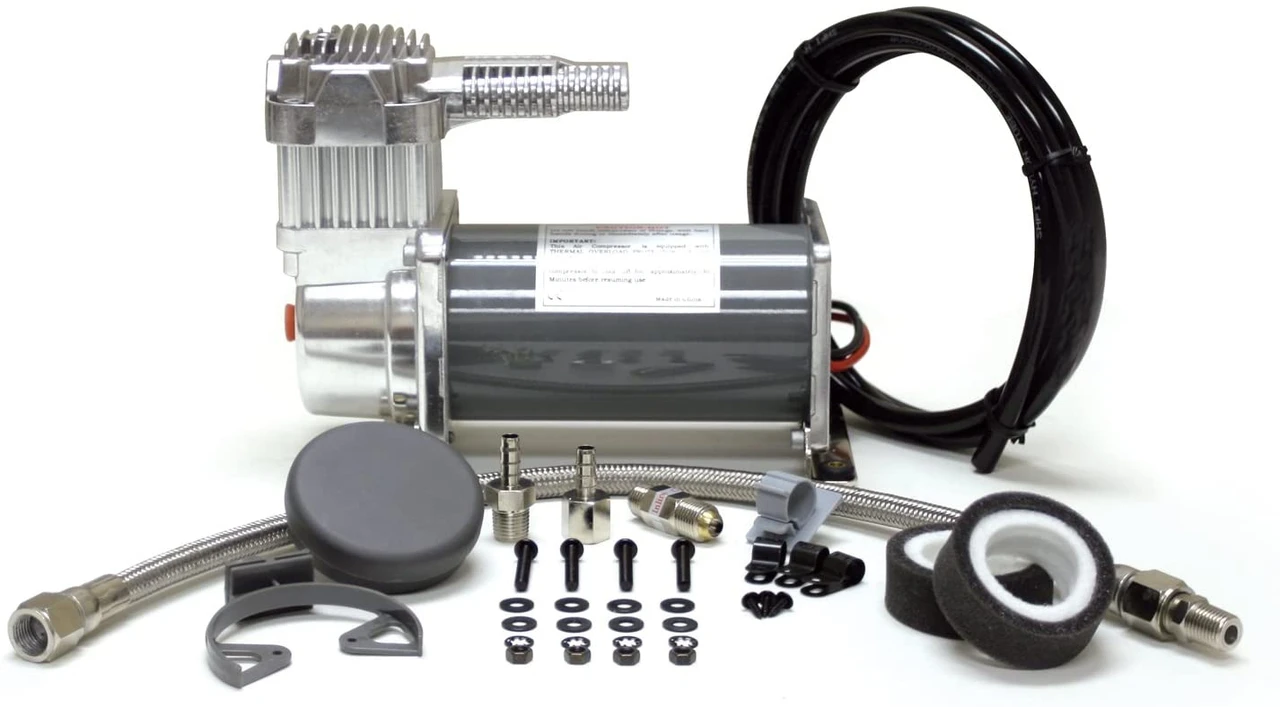

VIAIR 450C IG Series Compressor Kit 12V Intercooler Head 100% Duty (45050)
Viair 450C IG Series Compressor Kit 12V, Intercooler Head, 100% Duty, Sealed (45050) is an industrial-grade compressor designed to fill air reservoir tanks and features a newly-developed, patents-pending innovative head design for improved heat dissipation.
The VIAIR 45050 450C IG Series Compressor Kit with Stainless Steel Braided Leader Hose is equipped with a separate stainless steel braided PTFE-lined leader hose and a check valve assembly to protect the compressor against high amperage restarts, making it ideal for heavy-duty applications.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 23 Amps
Max. 24V Amp Draw: 13 Amps
Ingress Protection Rating: IP67
Max. Ambient Temp: +158°F
Min. Ambient Temp: -40°F
Dimensions: 11.25″L x 4″W x 6.75″H
Net Weight: 10.40 lbs.
Key Features and Benefits
Thermal Overload Protector for enhanced safety
Vibration Isolators for stable performance
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter Installation
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements for convenience
Mounting Hardware and Installation Instructions included
Product identification
- Brand: Viair
- Model / MPN: 45050
