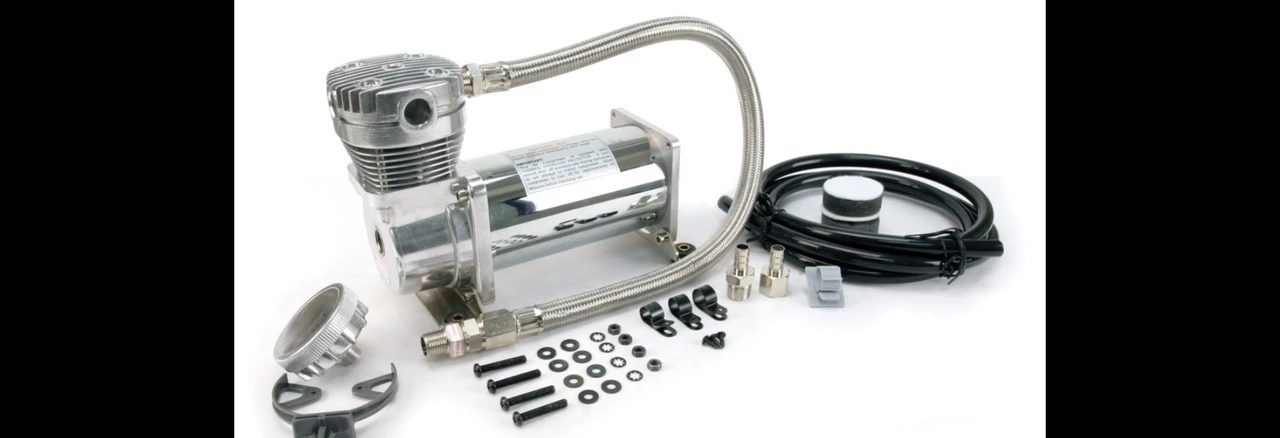

VIAIR 420C Chrome Compressor Kit 3/8 Port 12V 33% Duty Sealed (42042)
VIAIR 420C Chrome Compressor Kit 3/8 Port, 12V, 33% Duty, Sealed (42042) offers 33% duty cycle at 100 PSI and a maximum working pressure of 150 PSI. Featuring horizontal cooling fins and a trapezoidal head design, this 12V chrome compressor kit includes a 3/8" NPT stainless steel braided leader hose with an inline check valve for reliable air pressure management.
The VIAIR 42042 420C Chrome Compressor Kit 12V provides efficient air flow at 2.95 CFM and supports air tank sizes up to 5.0 gallons. The kit includes insulated wiring for simple installation and a thermal overload protector for added safety.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 28 Amps
Ingress Protection Rating: IP67
Dimensions: 10″L x 4.3″W x 6.5″H
Net Weight: 9 lbs.
Key Features and Benefits
Thermal overload protector for compressor safety
3/8" NPT stainless steel braided leader hose with inline check valve
IP67 ingress protection rating for water and dust resistance
Horizontal cooling fins and trapezoidal head design for efficient cooling
Vibration isolators and mounting hardware included
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
3/8" NPT Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Product identification
- Brand: Viair
- Model / MPN: 42042
