VIAIR 380C 200 PSI Chrome Compressor Kit 12V 100% Duty Cycle (38033)
VIAIR 380C 200 PSI Chrome Compressor Kit (38033) is a 12V air compressor designed with a 100% duty cycle at 100 PSI and a max working pressure of 200 PSI. The compressor features an IP67 ingress protection rating and can handle air tanks up to 5.0 gallons.

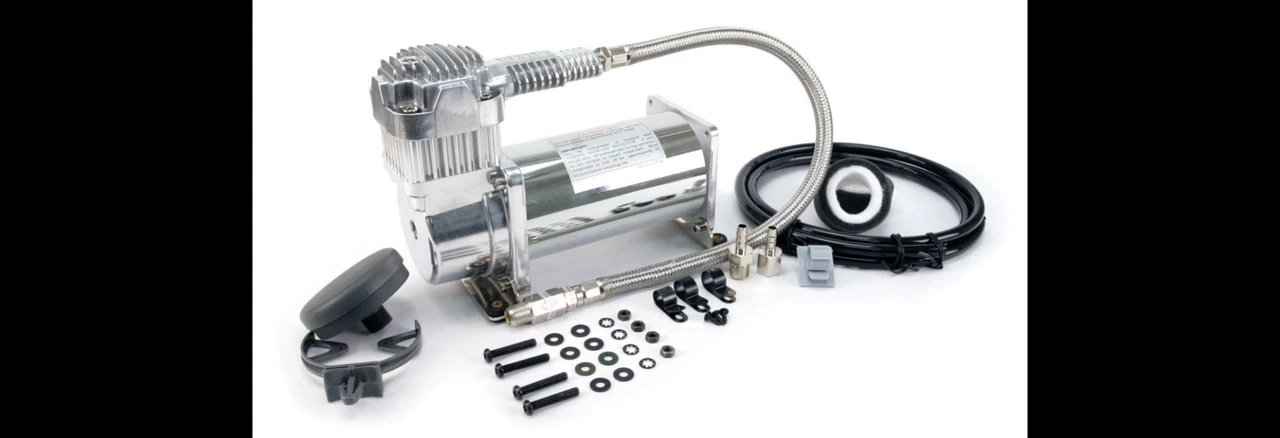

The VIAIR 380C compressor kit comes with a stainless steel braided leader hose, check valve, and comprehensive mounting hardware for smooth installation. It's perfect for tire inflation and other pneumatic needs, offering high pressure and consistent airflow.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 23 Amps
Ingress Protection Rating: IP67
Dimensions: 9″L x 4″W x 6.75″H
Net Weight: 8.75 lbs.
Noise Level: 14.4 dB
Maximum Power: 0.13 Horsepower
Capacity: 5 Gallons
Key Features and Benefits
100% duty cycle at 100 PSI and 55% at 200 PSI for continuous operation.
Max working pressure of 200 PSI for versatile pneumatic applications.
Chrome finish ensures durability and aesthetic appeal.
Ingress Protection Rating of IP67 for weather resistance.
Suitable for air tanks up to 5.0 gallons.
Permanent magnetic motor ensures reliable operation.
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Product identification
- Brand: Viair
- Model / MPN: 38033
